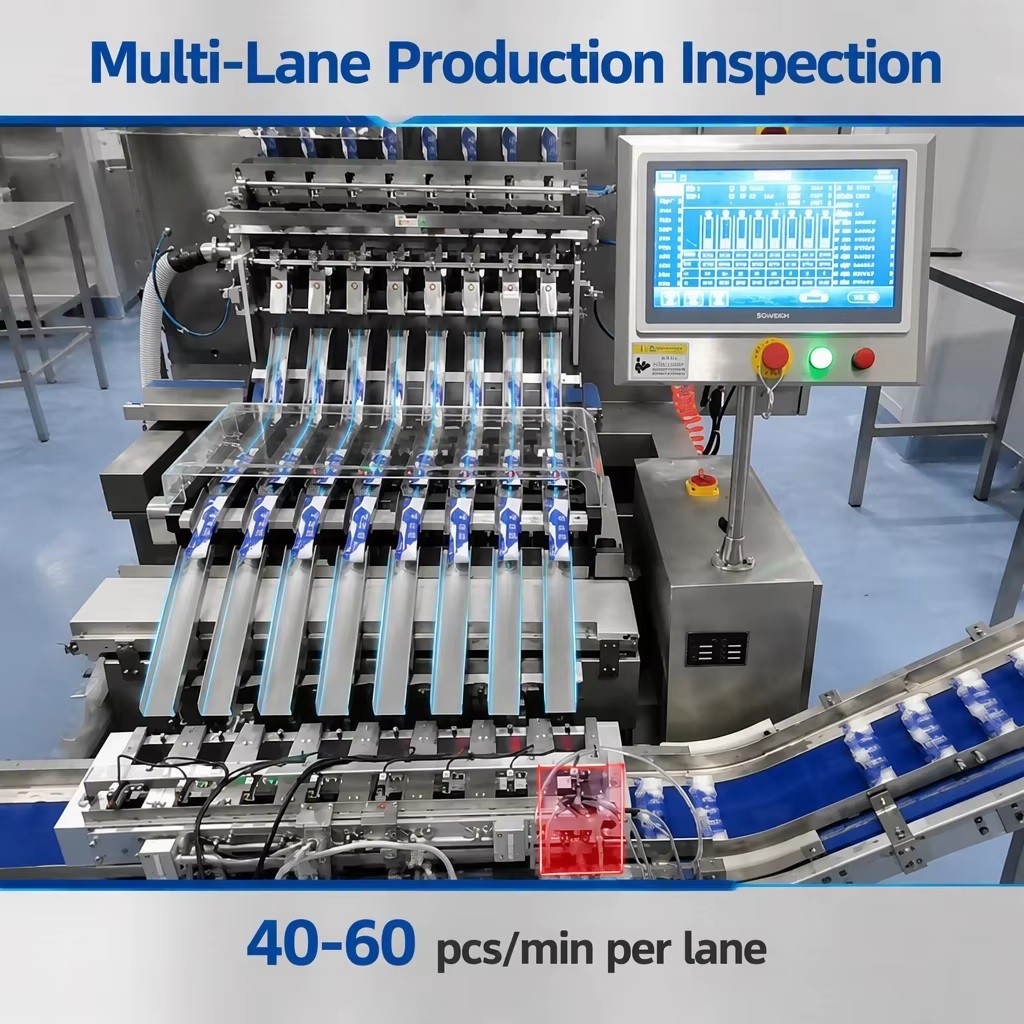

Each Lane Independent Weight Detection Strip Product Check Weigher can be connected to the discharge port of the multi-column packaging machine, check the weight of each long strip of soft package, and remove the underweight or overweight products to the unqualified collection area.Small Bag Stick Multi-Line Weight Checker can detect multi-column weight at the same time, which greatly improves the weighing speed and avoids empty bags, underweight and overweight bags.Welcome to consult for quotation information !
Weighing Range:1-30g
Minimum Scale:0.01g
Sorting Speed:Maximum 50 pieces/min (one channel)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About 1000W
Windshield:Thick acrylic (to avoid airflow interference)
Working Environment:Temperature: 0℃～40℃, Humidity: 30%～95%
1. Large screen display, clear viewing and convenient operation.
2. The default Chinese and English operation interface (multiple languages can be customized).
3. Weight compensation function.
4. Histograms and graphs are used to analyze the product pass rate.
5. Three-level operation authority management, support self-set password.
6. Can store 100 and product formula presets.
7. There are many ways to remove unqualified products.
8. Multi-channel pass the product to improve production efficiency (the number of channels can be customized).
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
