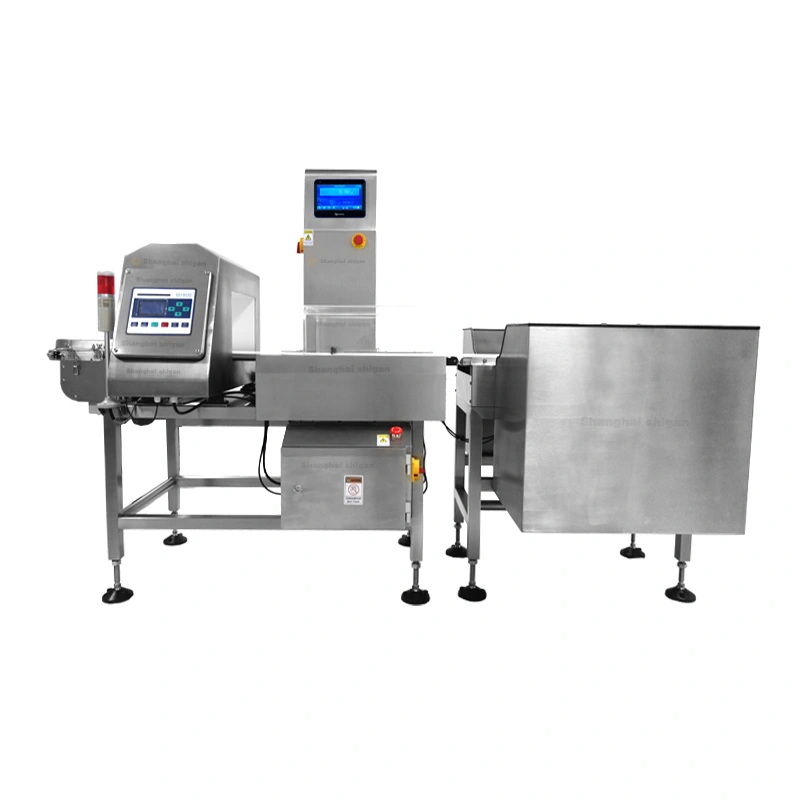

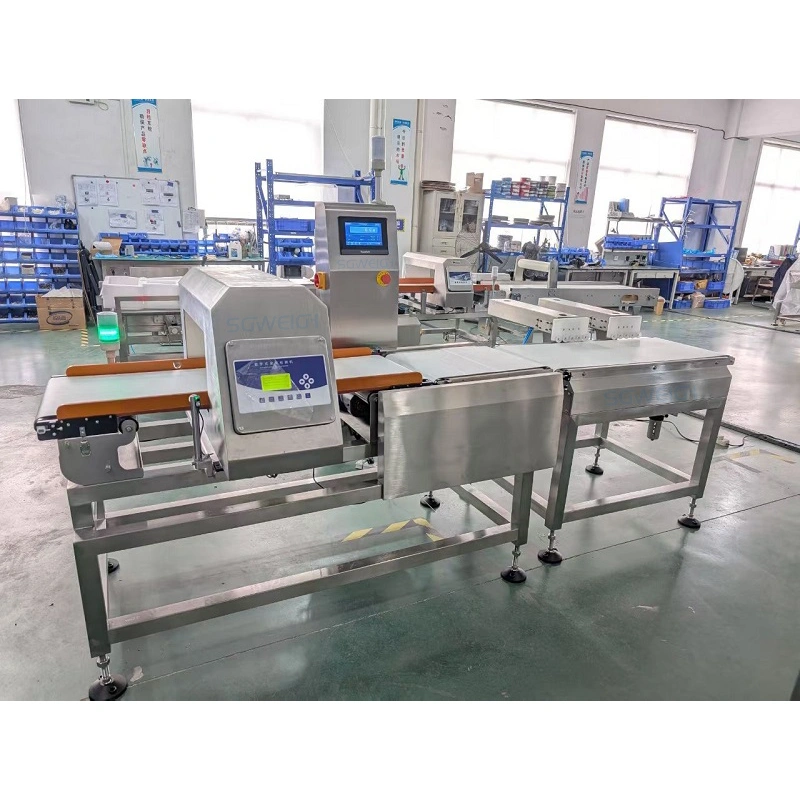

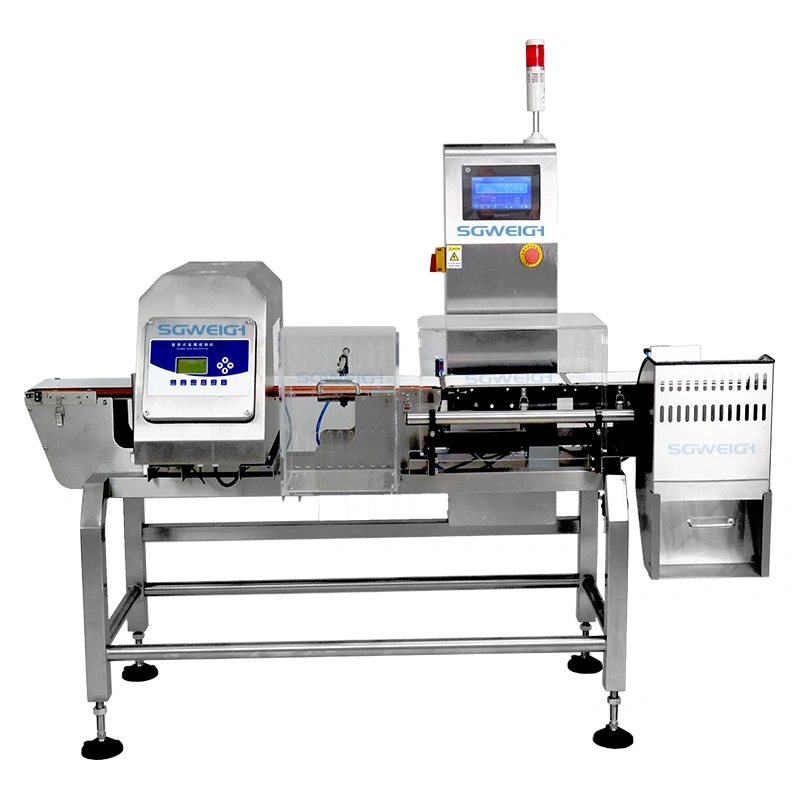

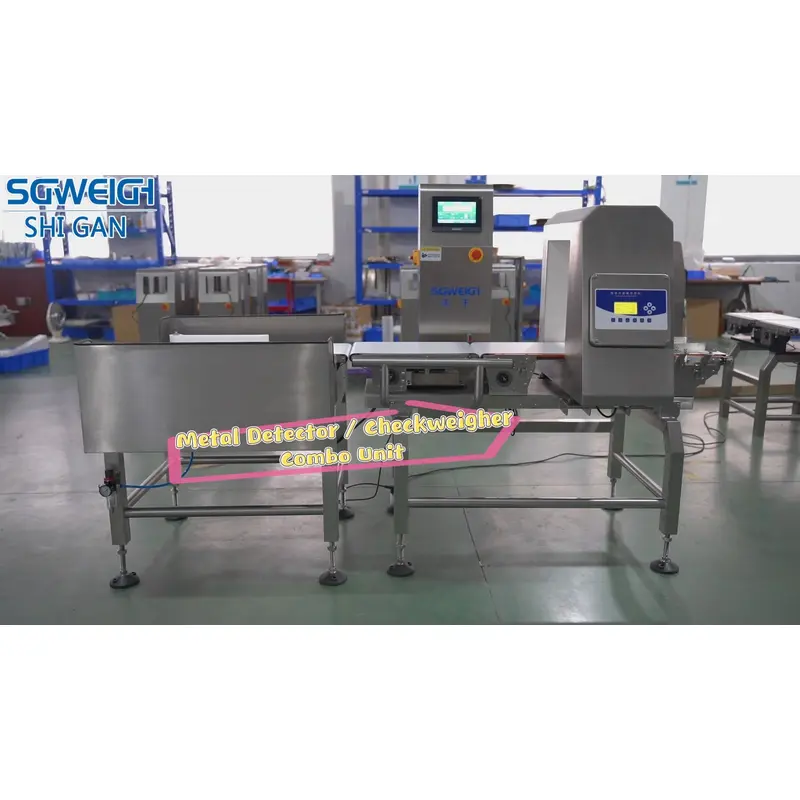

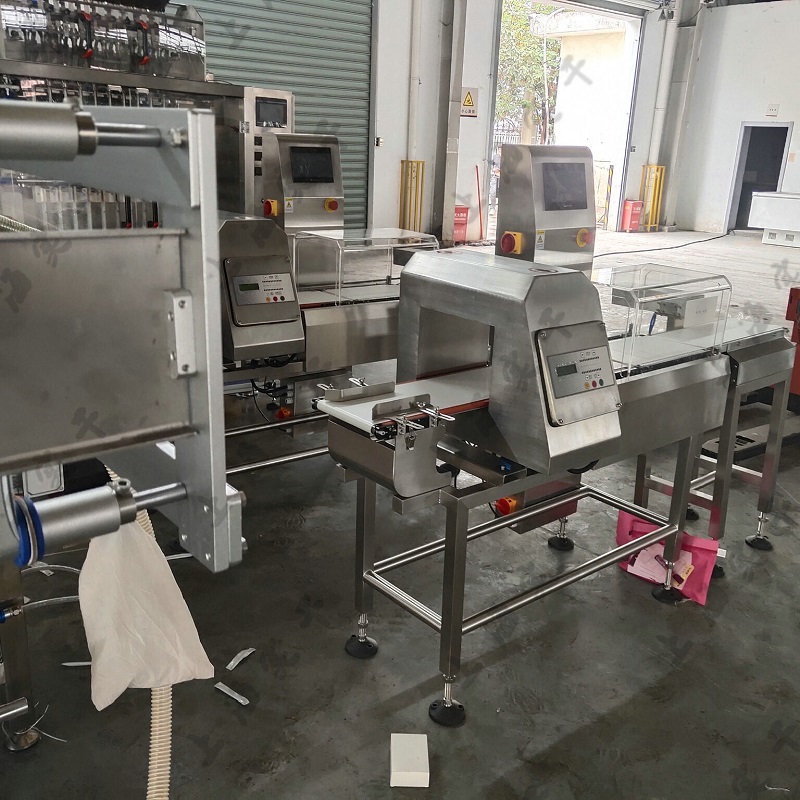

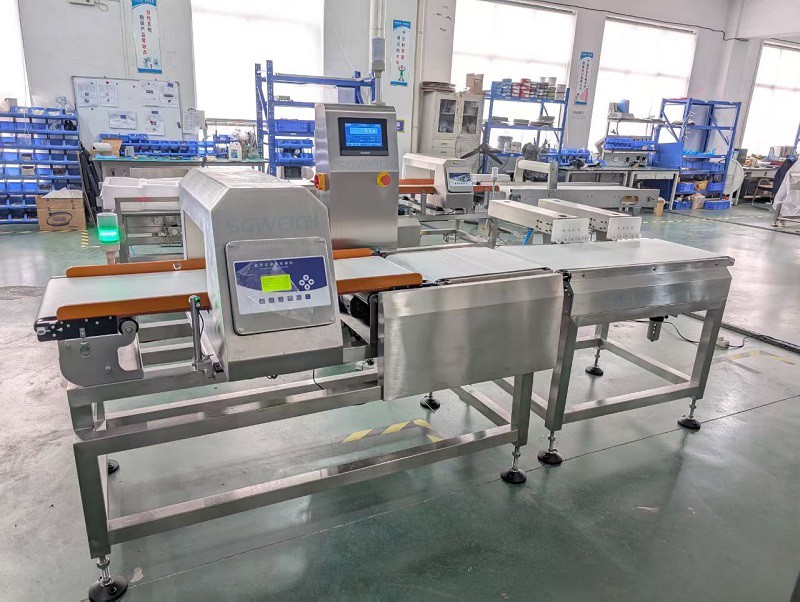

A Checkweigher and Metal Detector Combination System integrates high-precision dynamic weighing with advanced metal contamination detection into a single compact inspection solution. Designed for automated production lines, the system performs 100% in-line weight verification and metal detection in one pass, ensuring every product meets weight specifications while identifying and rejecting contaminants such as ferrous, non-ferrous, and stainless steel particles.

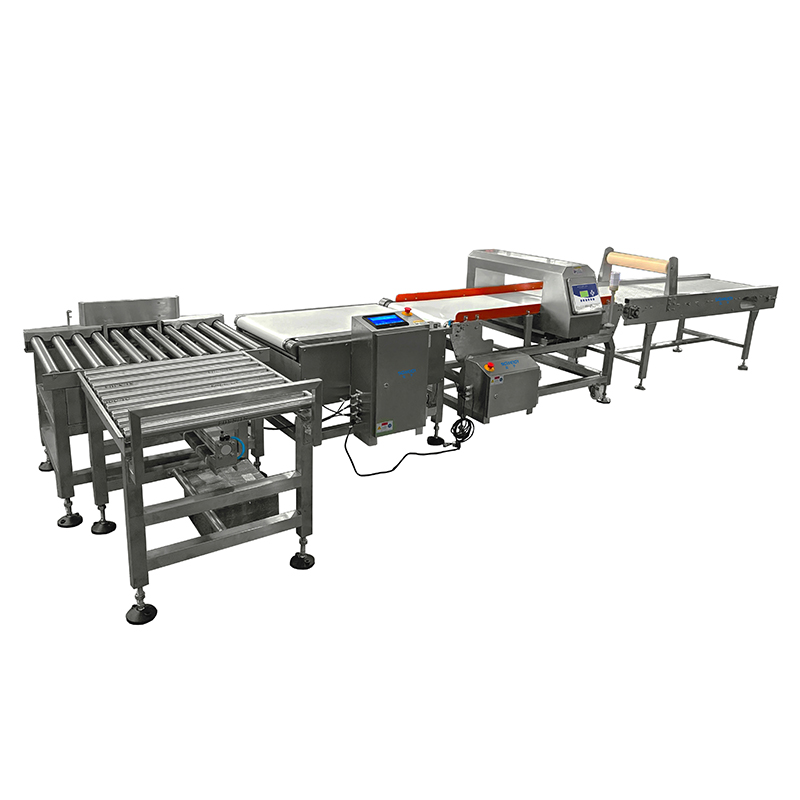

The integrated design reduces production line footprint, simplifies installation, and improves inspection efficiency.Conveyor Checkweigher with Metal Detector is widely used for inspecting packaged products, cartons, pouches, bottles, trays, cans, and other finished goods across food, beverage, nutraceutical, personal care, and industrial manufacturing industries.
| Type | SG-JS150 | Specifications | 4010 |
| Detection of hole width | 150mm | Inspection of height | 100-200mm |
| Detwction sensitivity | in the empty state: H 100mm：Fe ≥φ0.8mm，SUS ≥φ1.2mm H 120mm：Fe ≥φ1.0mm，SUS ≥φ1.8mm H 150mm：Fe ≥φ1.2mm，SUS ≥φ2.0mm H 200mm：Fe ≥φ1.5mm，SUS ≥φ2.5mm | ||
| Weighing scale range | 5–500g | ||
| Weighing accuracy | ±0.1g（Depends on products） | ||
| Conveyor height | 750mm (±50mm) | ||
| Transmission capacity | 10 kg/time | ||
| Conveyor belt maximum speed | 25m/min | ||
| Protection grade | IP65 | ||
| Display and operation mode | LCD flat-panel keypad input / Touchscreen | ||
| Power supply requirements | AC 220V 50HZ | ||
| Power | ≈300W | ||
1.Combines dynamic weighing and metal detection in one compact system.
2.Performs 100% in-line weight inspection and contaminant detection.
3.Detects ferrous, non-ferrous, and stainless steel contaminants.
4.High-speed operation for continuous production lines.
5.High-precision weighing with advanced digital load cells.
6.Automatic reject system for underweight, overweight, and contaminated products.
7.Space-saving integrated conveyor design.
8.User-friendly color touchscreen with intuitive controls.
9.Multiple product memory recipes for fast changeovers.
10.Real-time production statistics and data logging.
11.Stainless steel construction for durability and easy cleaning.
12.Supports production traceability and quality management.
Food packaging, medical packaging, plastic recycling, rubber, etc. are used to detect various metal impurities such as iron, copper, lead, aluminum, tin, stainless steel, etc., which are mixed or dropped in products or raw materials.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
