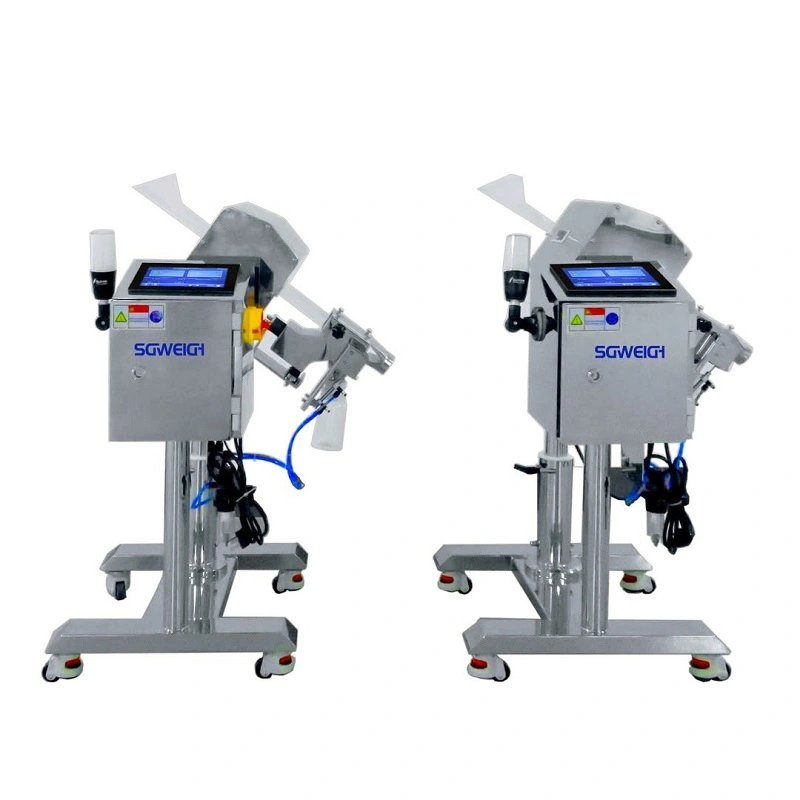

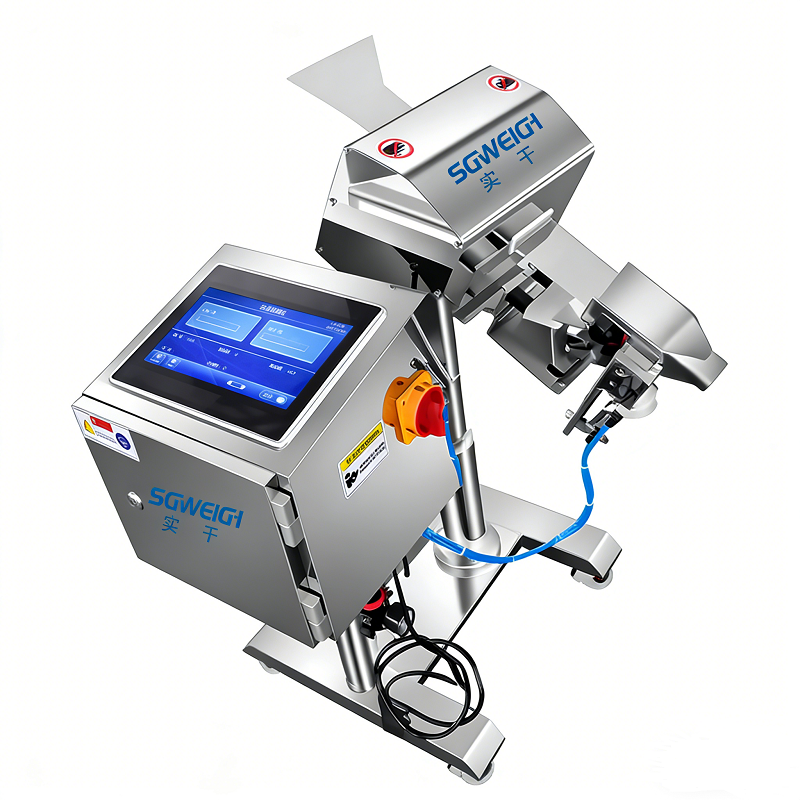

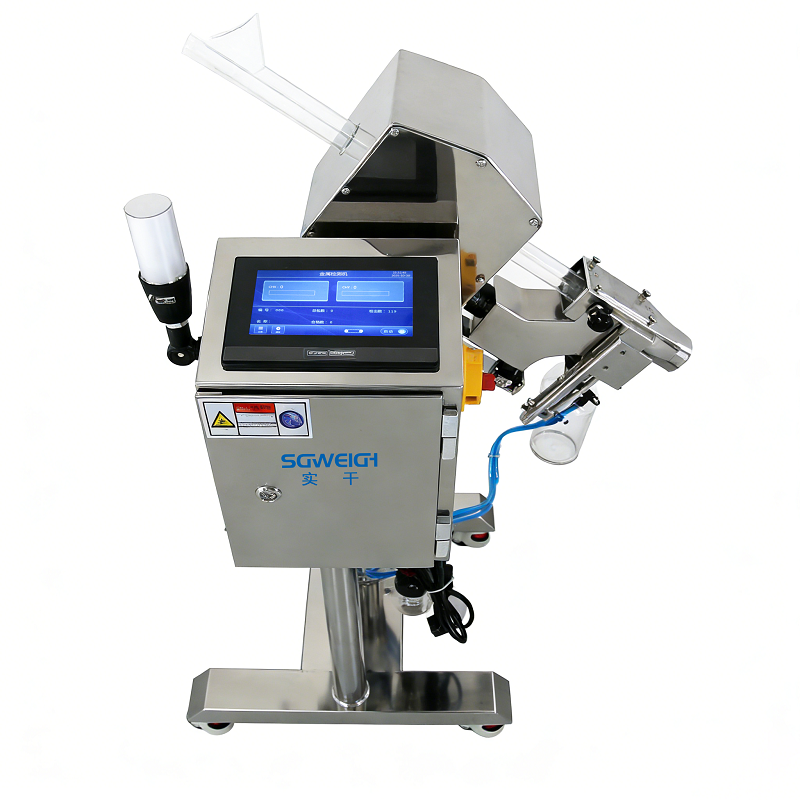

A Tablets Metal Detector is an advanced inspection machine installed after tablet pressing or before packaging to identify and reject contaminated products automatically. The system can detect tiny metal particles mixed into tablets due to equipment wear, broken tooling, raw material contamination, or production line damage.
The Pharmaceutical Tablet Metal Detector is designed specifically for pharmaceutical products and provides ultra-high detection sensitivity while maintaining stable product flow and production efficiency.
| Type | SG-M60 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.4mm |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |

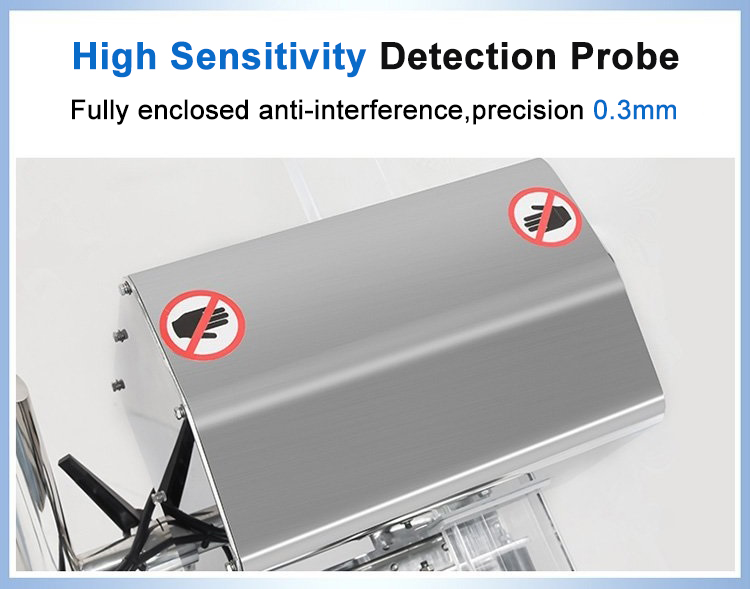

1.High Sensitivity Metal Detection
Accurately detects:
Ferrous metals
Non-ferrous metals
Stainless steel contaminants
Even very small metal particles can be identified during high-speed production.
2.Pharmaceutical-Grade Hygienic Design
Manufactured with SUS304 or SUS316 stainless steel for easy cleaning and compliance with pharmaceutical hygiene standards.

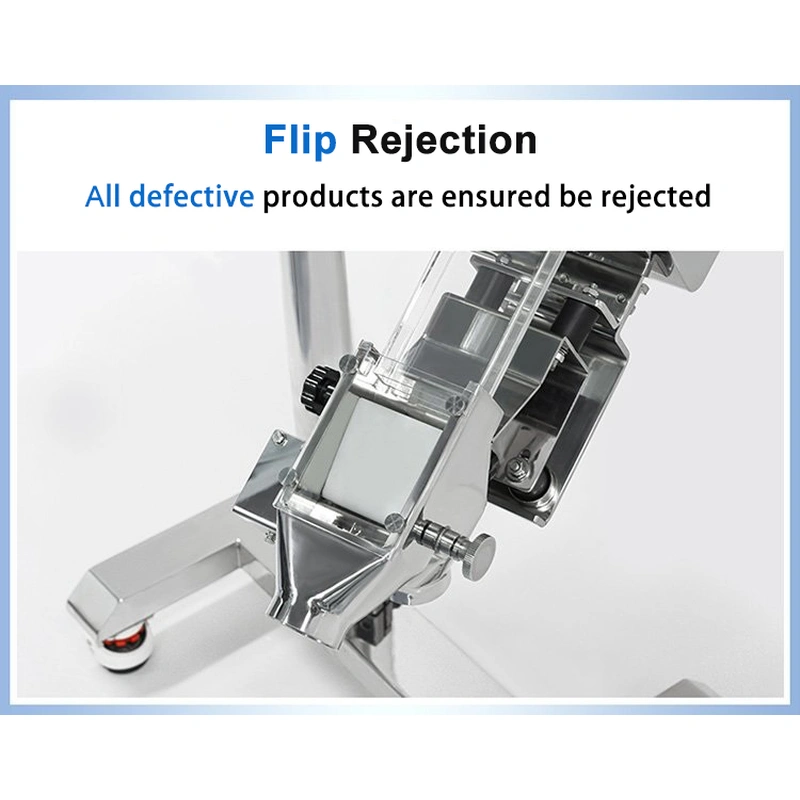

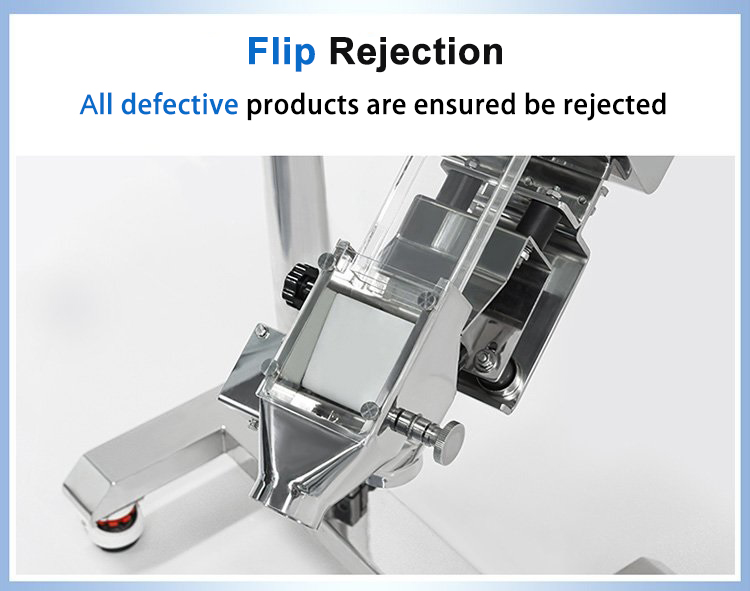

3.Automatic Rejection System
Contaminated tablets are automatically separated from qualified products to prevent defective products from entering the market.
4.Dustproof and Stable Operation
Special anti-vibration and dust-resistant structure ensures reliable operation in pharmaceutical environments with powder and fine particles.
5.Easy Integration with Production Lines
Can be connected with tablet presses, dedusters, capsule filling machines, and packaging systems for fully automated inspection.

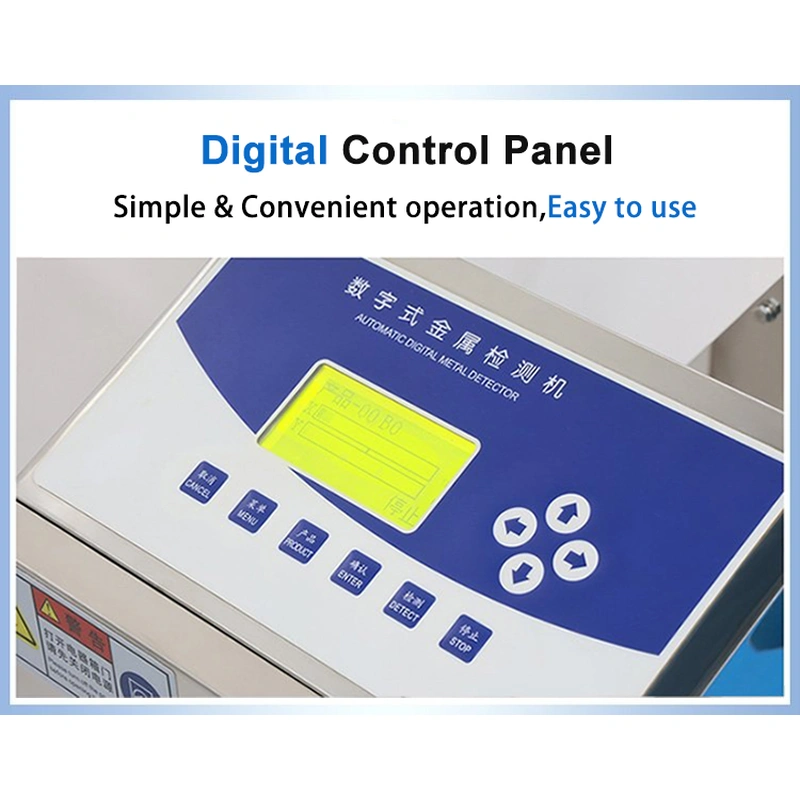

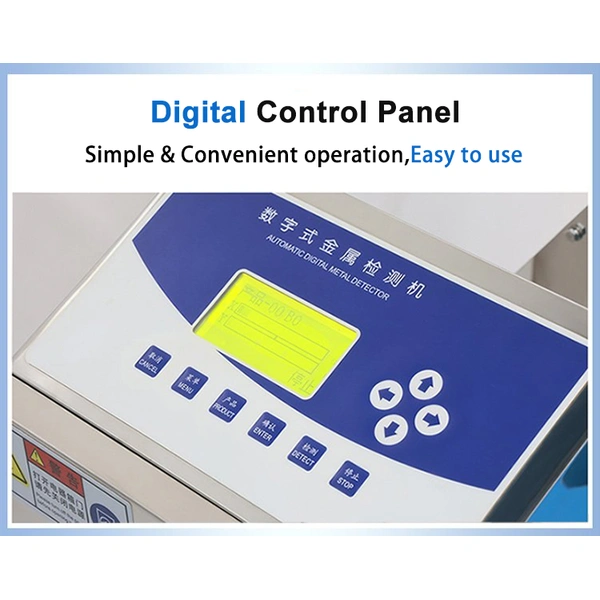

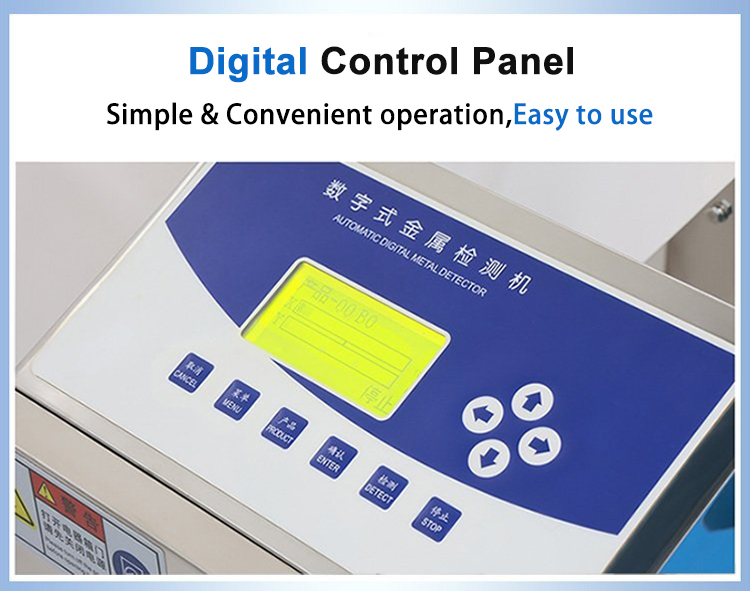

6.Intelligent Control System
Touch screen operation supports parameter storage, sensitivity adjustment, production records, and alarm monitoring.

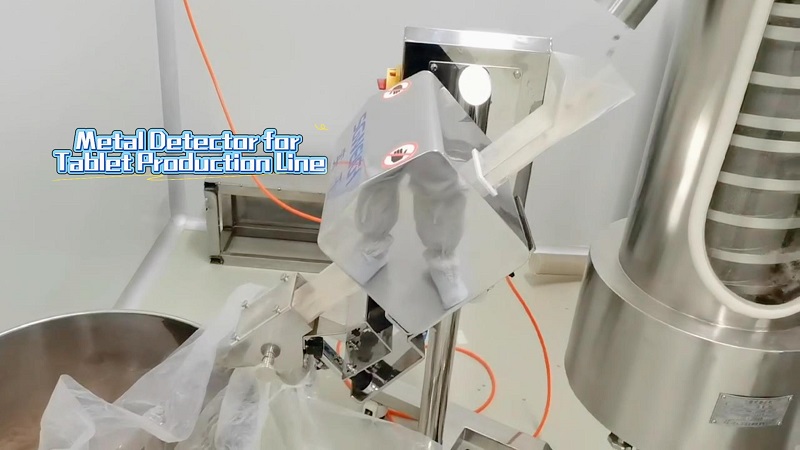

Tablet Production
Detects metal contamination after tablet compression and dedusting processes.
Capsule Manufacturing
Suitable for capsules, soft gels, and healthcare products.
Pharmaceutical Packaging
Used before bottling or blister packaging to ensure contaminant-free finished products.
Nutritional Supplements
Widely used for vitamins, herbal tablets, calcium tablets, and dietary supplements.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
