A Capsule Checkweigher is an automated, precision-grade device designed to inspect the weight of individual capsules on a production line, ensuring every dose meets strict quality and regulatory standards. Far more than a basic scale, it performs real-time, 100% inspection, automatically separating underweight, overweight, and defective capsules from good products to safeguard patient safety and production integrity.
Core Purpose & Critical Importance
Capsule checkweighers exist to eliminate dosage errors—a top risk in pharmaceutical and nutraceutical manufacturing. Even minute weight variations can drastically impact therapeutic outcomes:
●Underweight: Insufficient active ingredient (API) leads to subtherapeutic effects, treatment failure, or patient harm.
●Overweight: Excess API may cause toxic side effects, especially critical for high-potency medications like cancer treatments.
●Regulatory Non-Compliance: Fails to meet standards (e.g., GMP, USP, FDA 21 CFR Part 11) risking recalls, fines, and reputational damage.
Beyond safety, these devices:
●Reduce waste by targeting only defective capsules, minimizing rework costs.
●Provide actionable data to optimize filling processes, improving overall production efficiency.
●Support batch traceability with detailed records of every capsule’s weight, a requirement for audits and validation.
How It Works: Step-by-Step Process
| Stage | Description | Description |
| 1. Feeding & Orientation | Capsules flow from the filler into a hopper, then into a magazine with a shutter. | The shutter drops each capsule semi-horizontally to absorb vibration, ensuring stable, single-capsule presentation to the weigh cell. |
| 2. Precision Weighing | Each capsule rests on a dedicated load cell for ~0.5 seconds. | Uses force balance technology (electromagnetic compensation) to convert weight into an electrical signal. Top models achieve accuracy up to ±0.5 mg,. |
| Data Analysis | The system compares the measured weight to pre-defined upper/lower limits. | Classifies capsules as "Good," "Light," "Heavy," or "Unclassified" (e.g., due to power loss). |
| Sorting & Rejection Defective | Defective capsules are automatically diverted; proceed to packaging. | Uses pneumatic ejection, flaps, or mechanical arms to separate defects into dedicated, lockable bins,. |
Key Features
When selecting a capsule checkweigher, prioritize these attributes to balance precision, speed, and compliance:
1.Ultra-High Precision

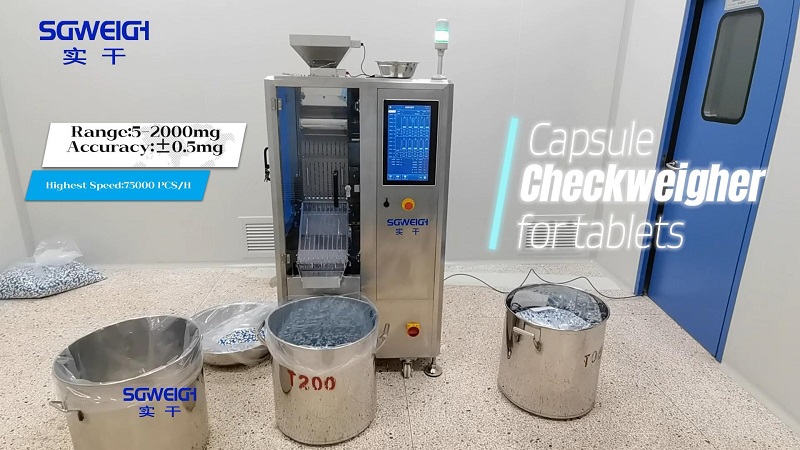

●Accuracy: ±0.5 mg to ±1 mg (critical for potent APIs),.
●Resolution: 0.1 mg or finer to detect subtle variations.
●Vibration resistance: Designs like "hanging weighing cells" isolate sensors from line interference.
2.High Throughput

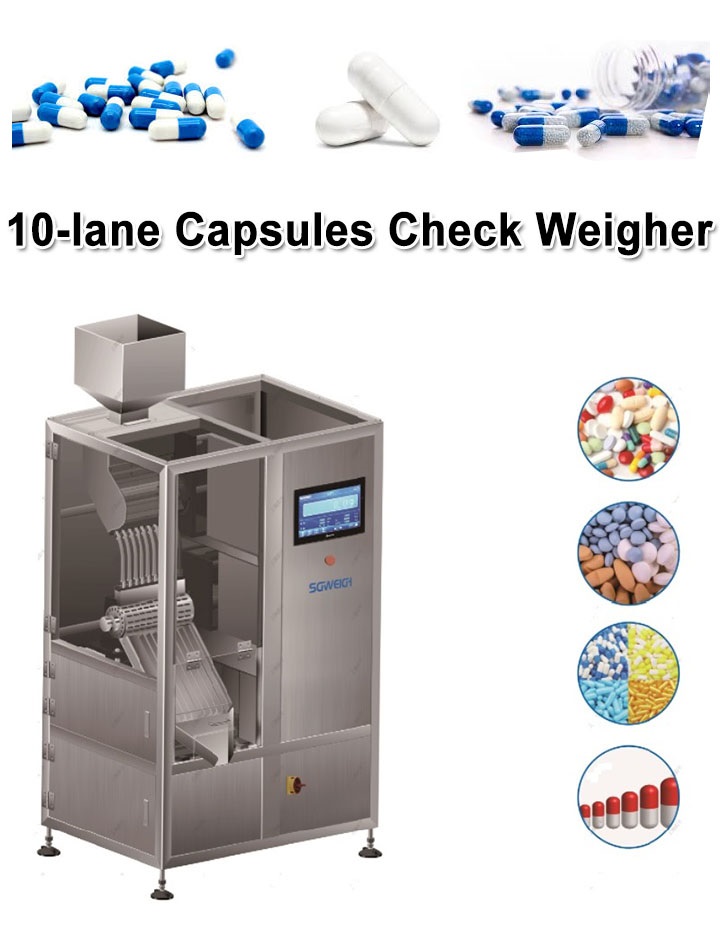

●Speed: Ranges from ~100,000 to 300,000 capsules per hour (multi-lane configurations: 4-30 lanes).
●Integration: Seamlessly connects to capsule fillers (e.g., Syntegon GKF) via pneumatic transfer for closed-loop process control.
3.Regulatory Compliance
●Supports GMP, USP Dosage Uniformity, and 21 CFR Part 11 (electronic records/audit trails).
●Complete traceability: Logs all weight data, rejects, and operator actions for full batch documentation.
4.Flexibility & Hygiene
●Quick changeover: Tool-less adjustment for different capsule sizes (000 to 5) and formats,.
●Easy cleaning: Removable, food-grade contact parts (e.g., sliding plates) for rapid sanitization.
●Dust containment: OEB 4/5 rated versions for high-potency drugs, protecting operators and product integrity.
Industry Applications
Capsule checkweighers are indispensable across sectors where dose accuracy is non-negotiable:
Pharmaceuticals: Final inspection post-filling; empty capsule weight verification for R&D and clinical trials,.
Nutraceuticals: Vitamins, minerals, and health supplements (e.g., protein capsules) requiring consistent dosing.
Veterinary Medicine: Animal health products where dosage errors affect animal welfare and efficacy.
Why It’s a Must-Have
In pharmaceutical industry, a capsule checkweigher is not just equipment—it’s a safety net. It transforms weight inspection from a slow, error-prone manual process into a fully automated, data-driven system that:
●Eliminates human error.
●Ensures 100% compliance with global regulations.
●Boosts production yield and reduces costs.
●Protects brand reputation and patient trust.
For manufacturers aiming to deliver safe, effective medicines and supplements, a high-quality capsule checkweigher is an essential investment.
