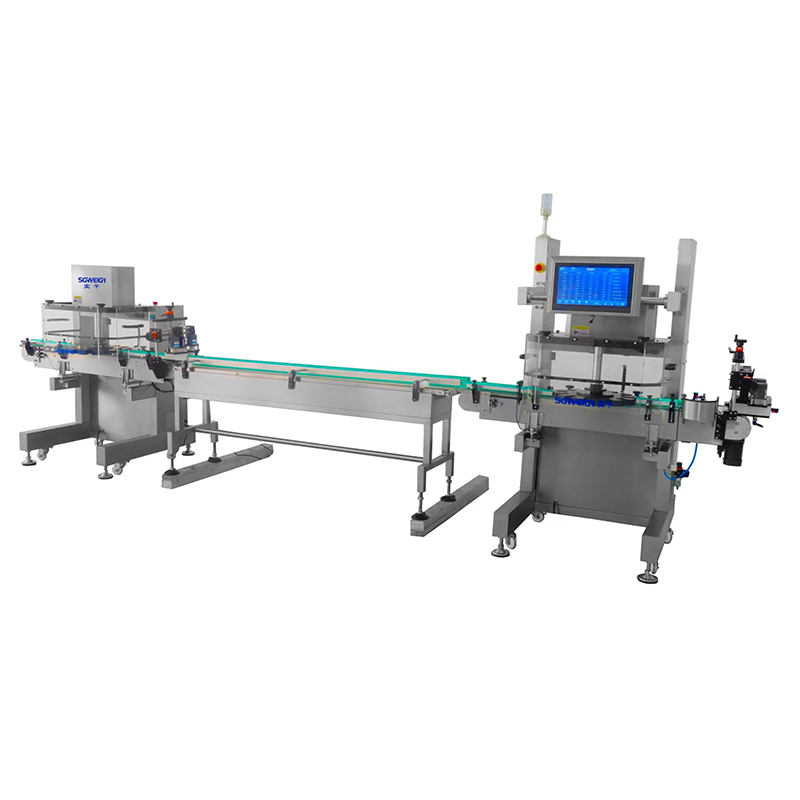

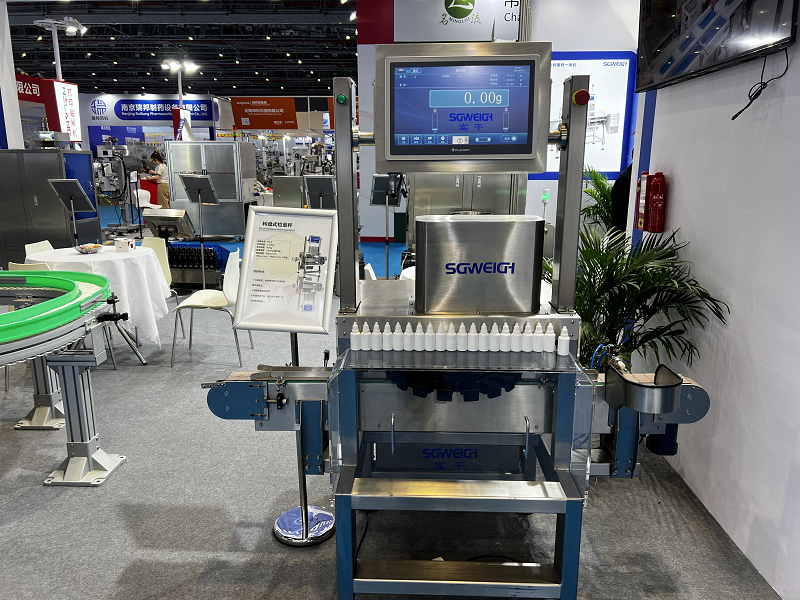

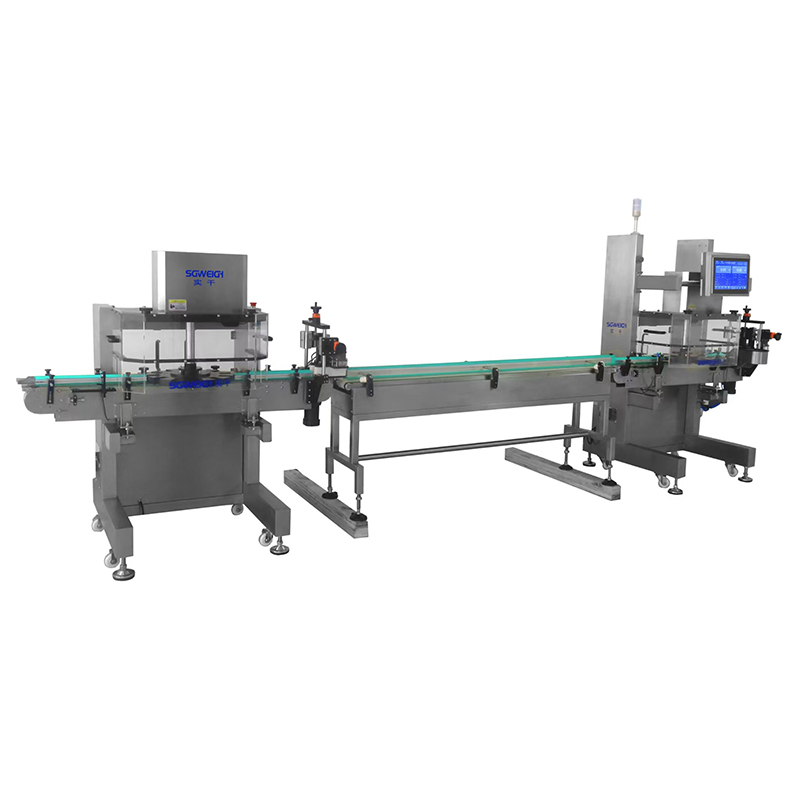

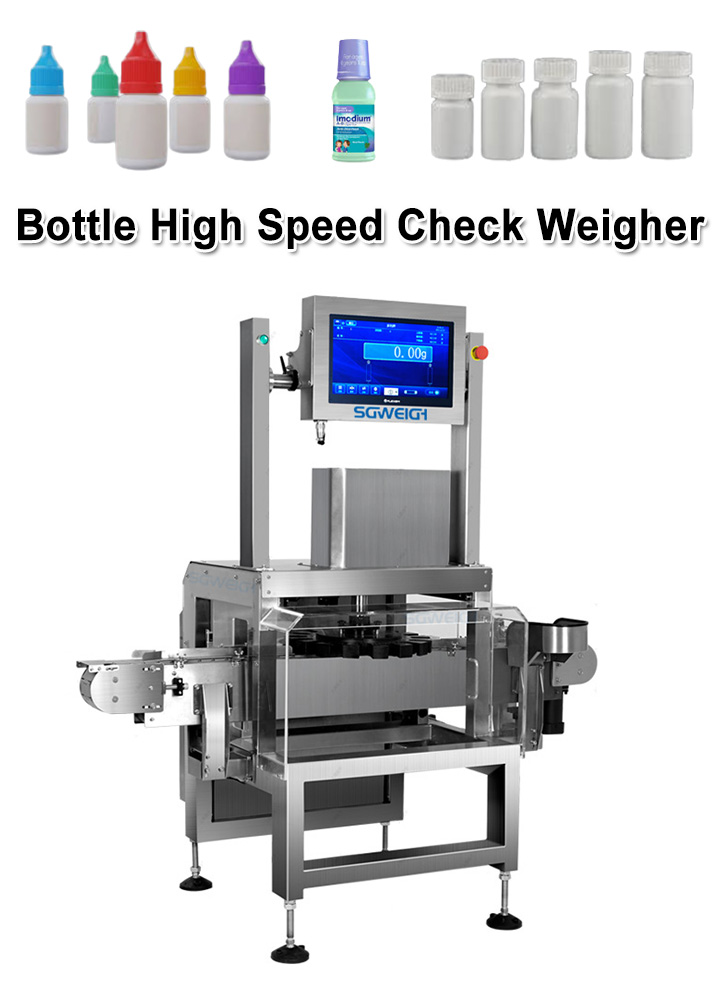

High Speed Rotary Checkweigher is a specialized weighing system designed for high-speed, in-line weight verification of products like bottles, sprays, aerosols, inhalers, and cylindrical items in manufacturing and packaging lines.Bottles Dynamic Weighing Solutions ensures each product meets specified weight tolerances, helping with quality control, regulatory compliance, and waste reduction.
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W

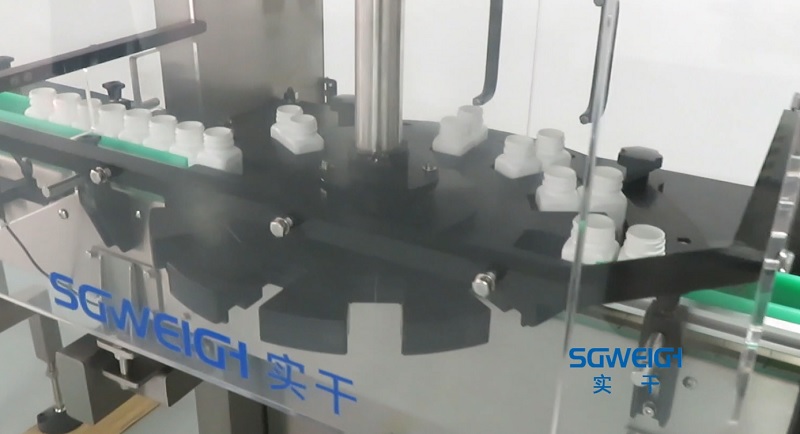

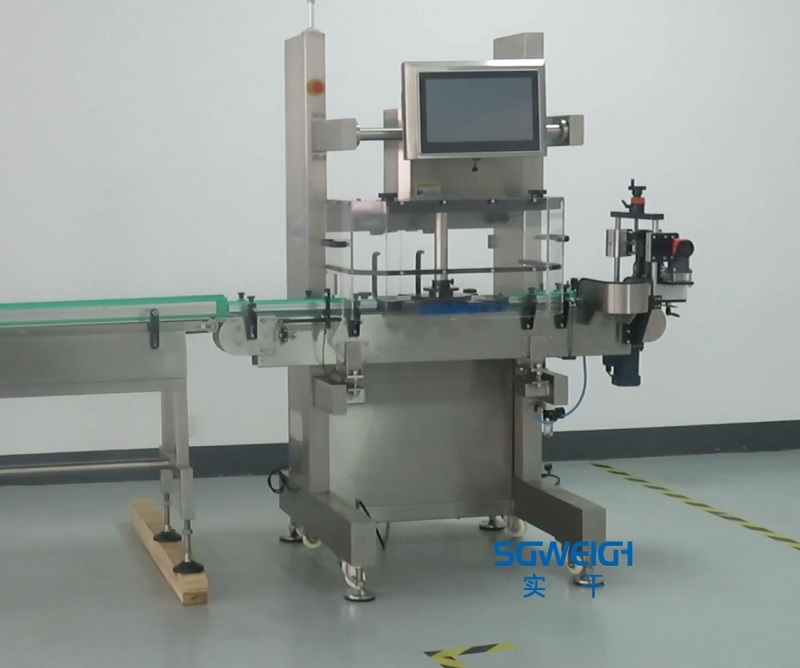

1.Rotary Turntable Design
Uses a rotating platform with multiple weigh cells for continuous, high-speed weighing.
Ideal for round, cylindrical, or unstable products (like aerosol cans or inhalers) that may not sit well on linear conveyors.
2.Gentle Product Handling

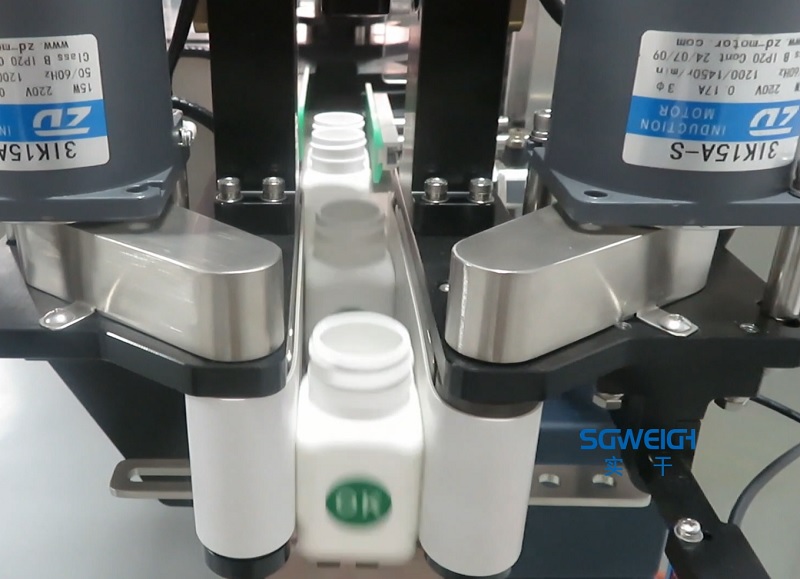

Minimizes product vibration or tipping, crucial for pressurized aerosols or delicate inhalers.
3.High-Precision Load Cells
Measures weight with ±0.1g to ±1g accuracy, depending on product size.
4.Automatic Rejection System
Removes underweight/overweight products (e.g., incomplete sprays, missing doses in inhalers).
5.Integration with Production Lines
Works with filling, capping, and labeling machines for seamless quality checks.
6.Compliance & Data Logging
Meets FDA, ISO, GMP standards for pharmaceuticals, cosmetics, and food industries.
Stores weight data for traceability and batch reporting.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
