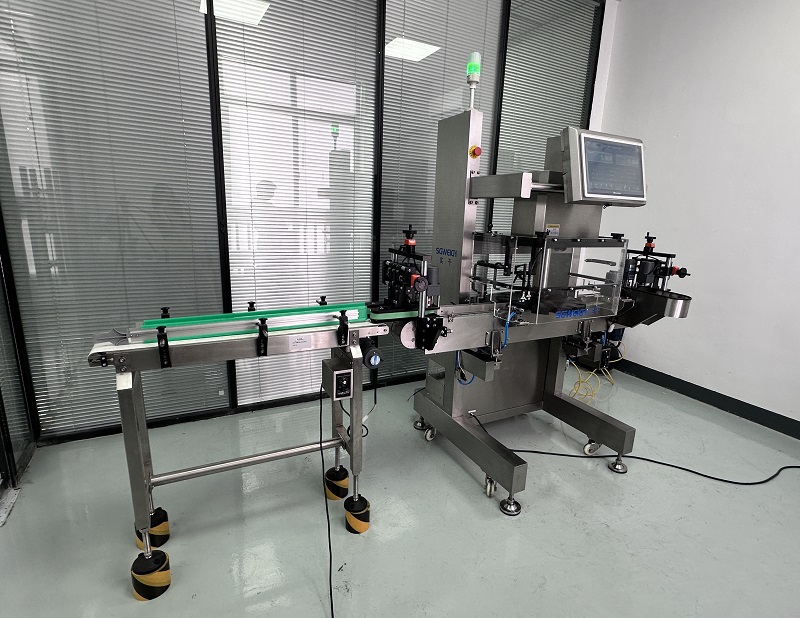

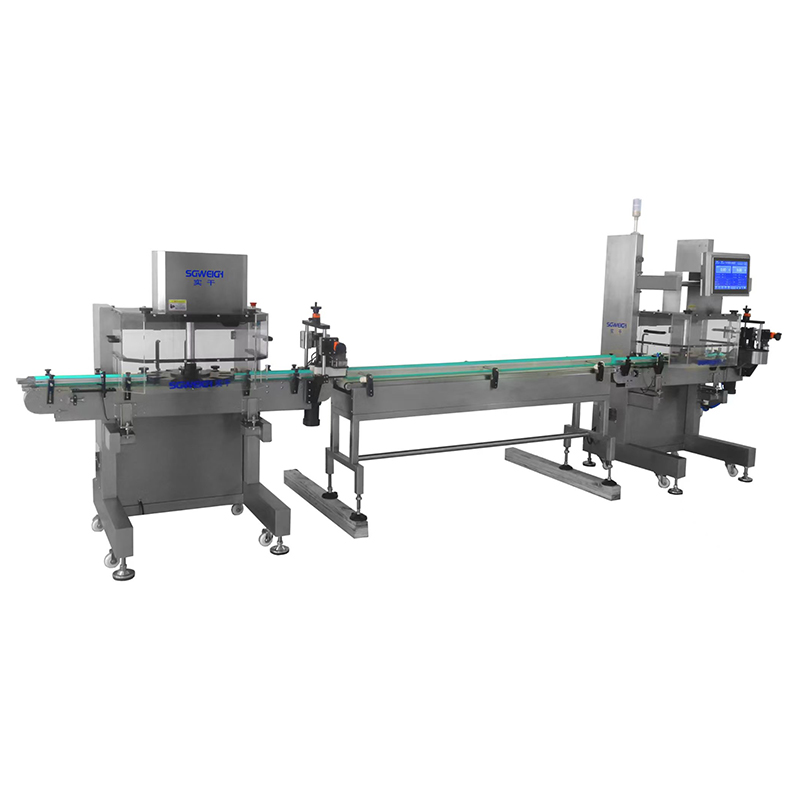

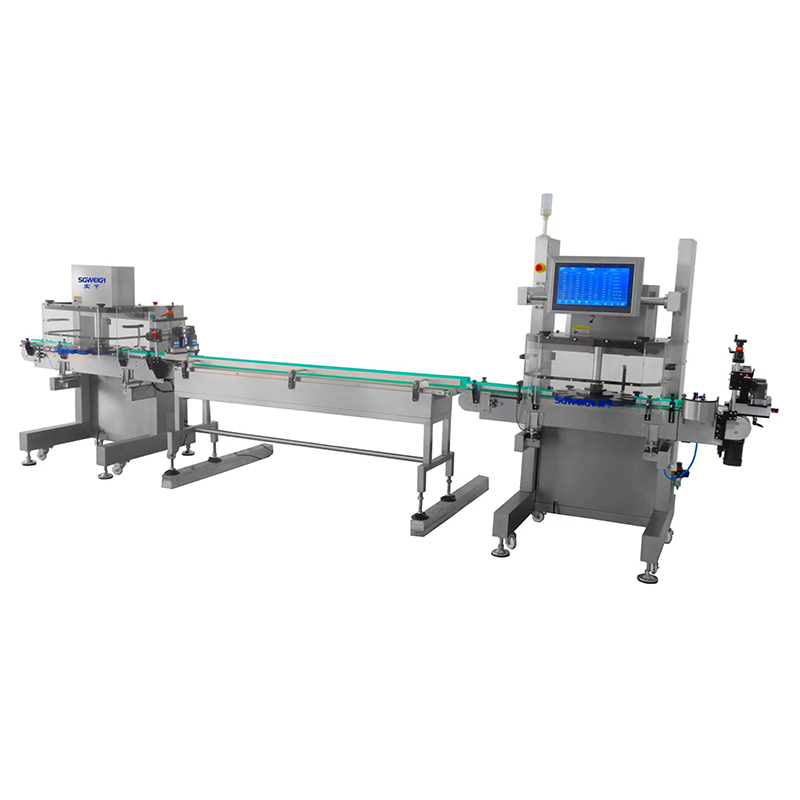

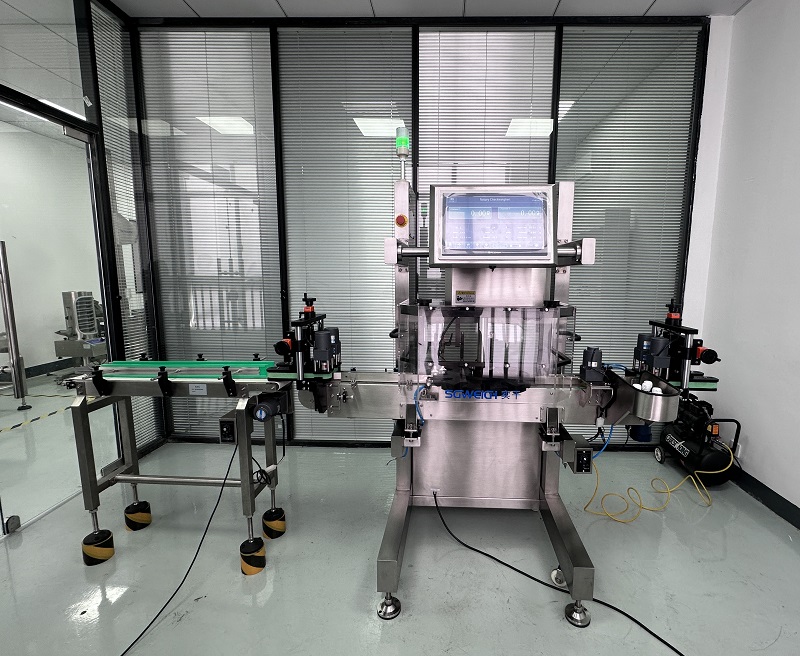

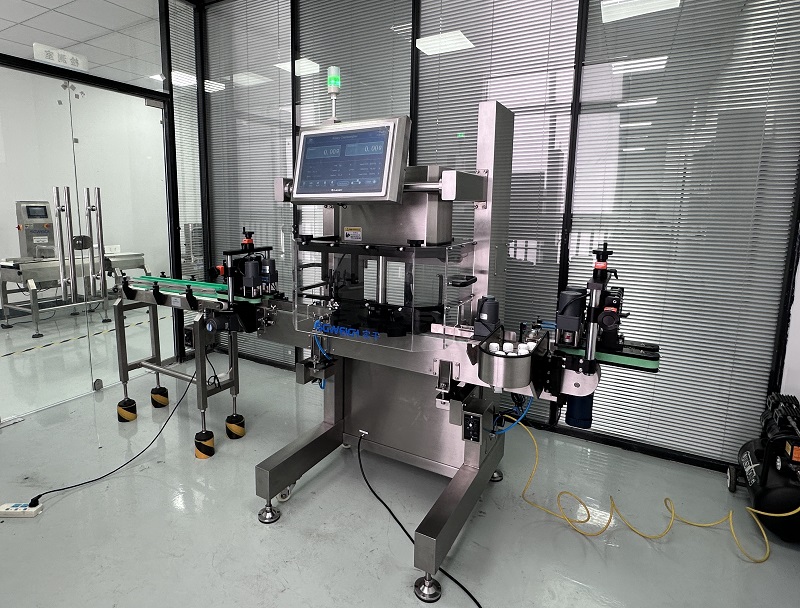

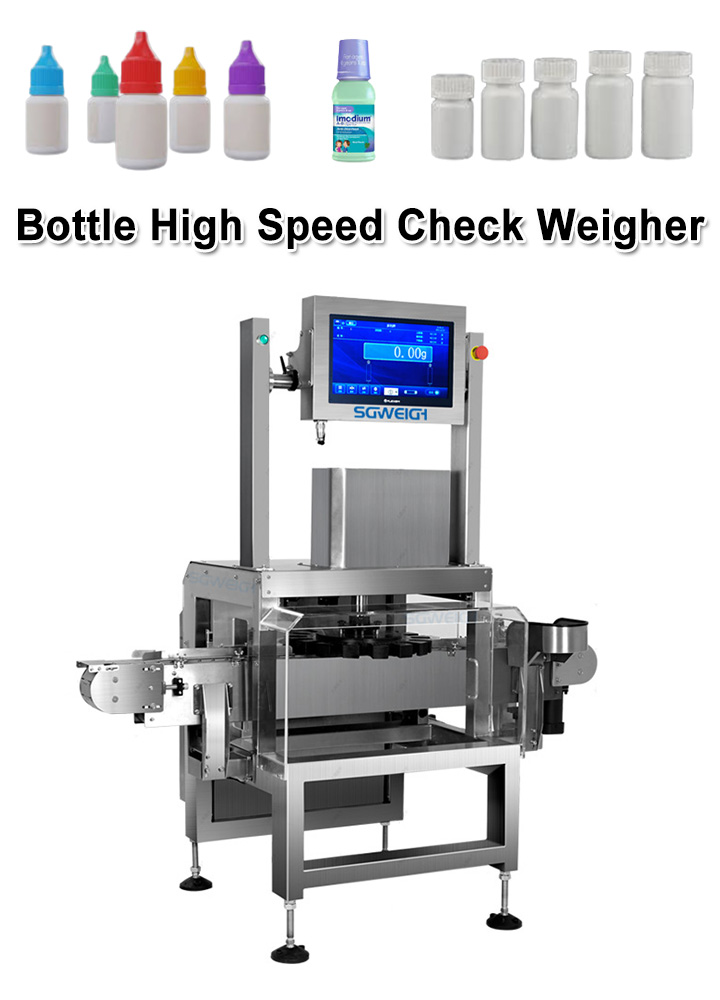

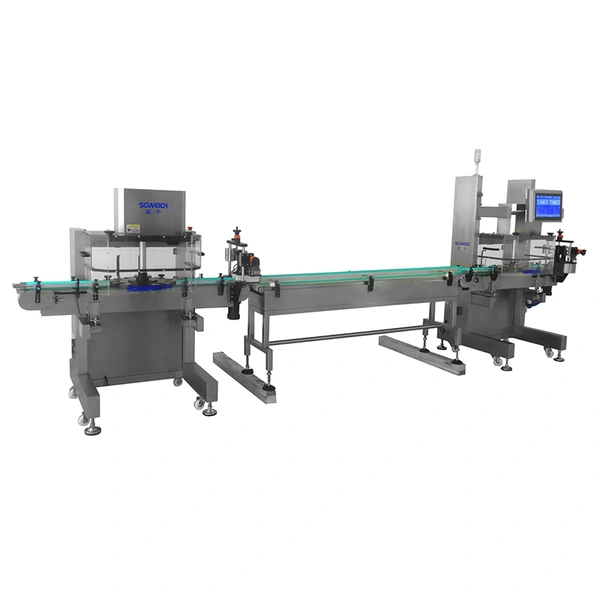

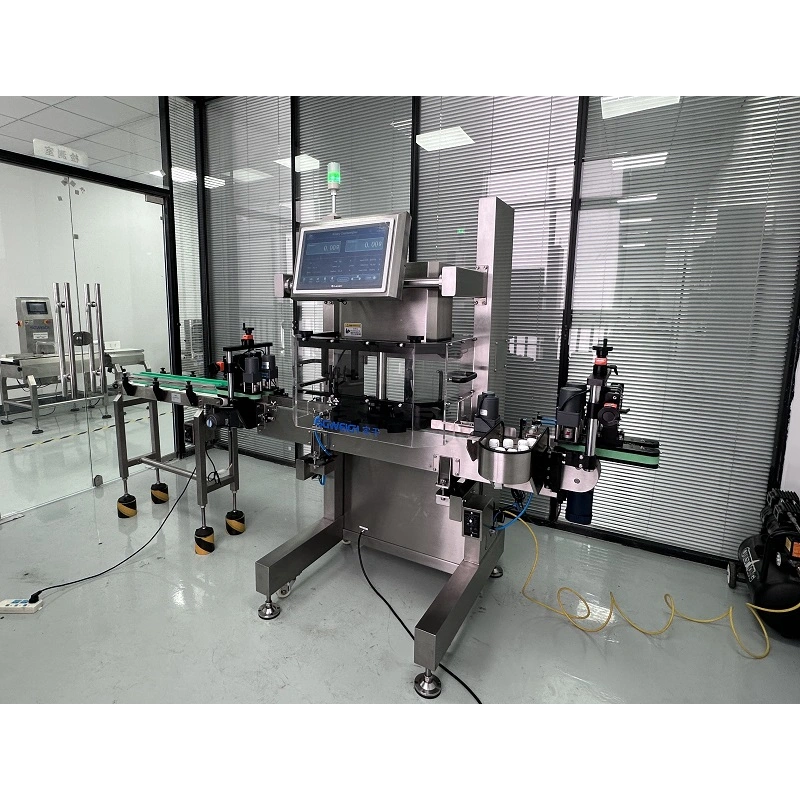

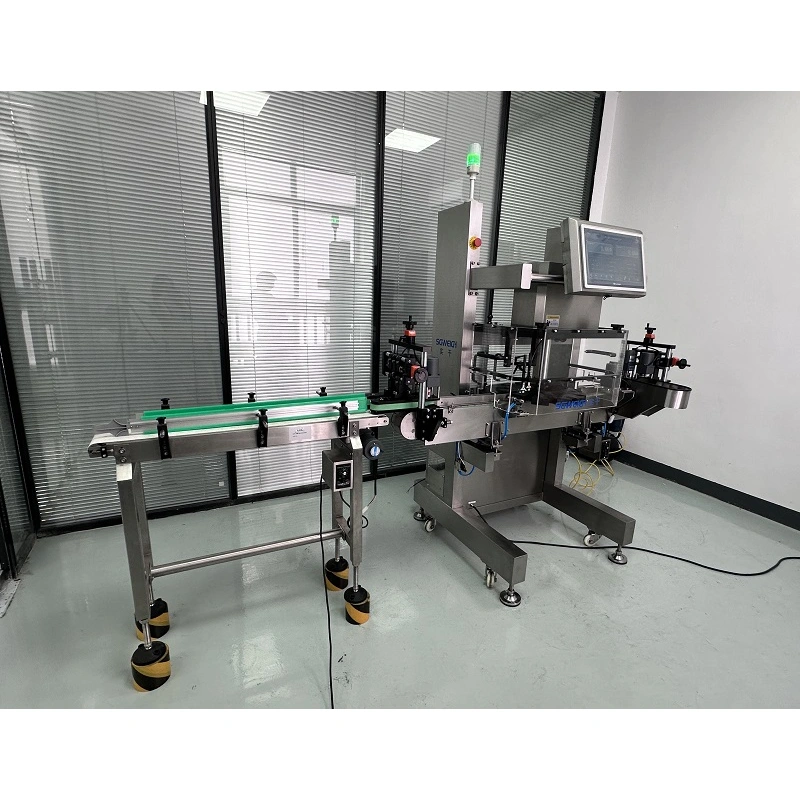

Bottle Line Inline Checkweigher is a specialized industrial system, typically based on high-precision load cells, designed to automatically weigh containers on a production or packaging line. Its primary purpose is Quality Control and Cost Savings by ensuring every bottle meets specified weight criteria before it is filled or shipped.
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W

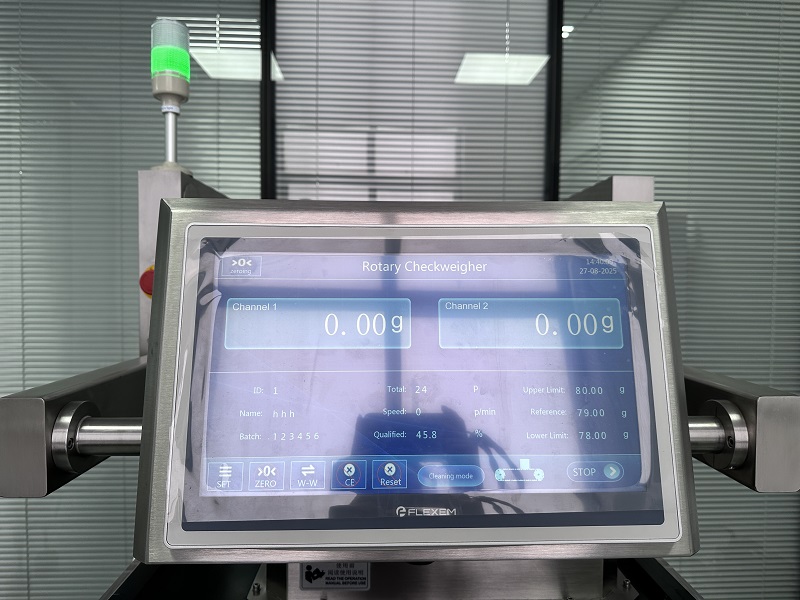

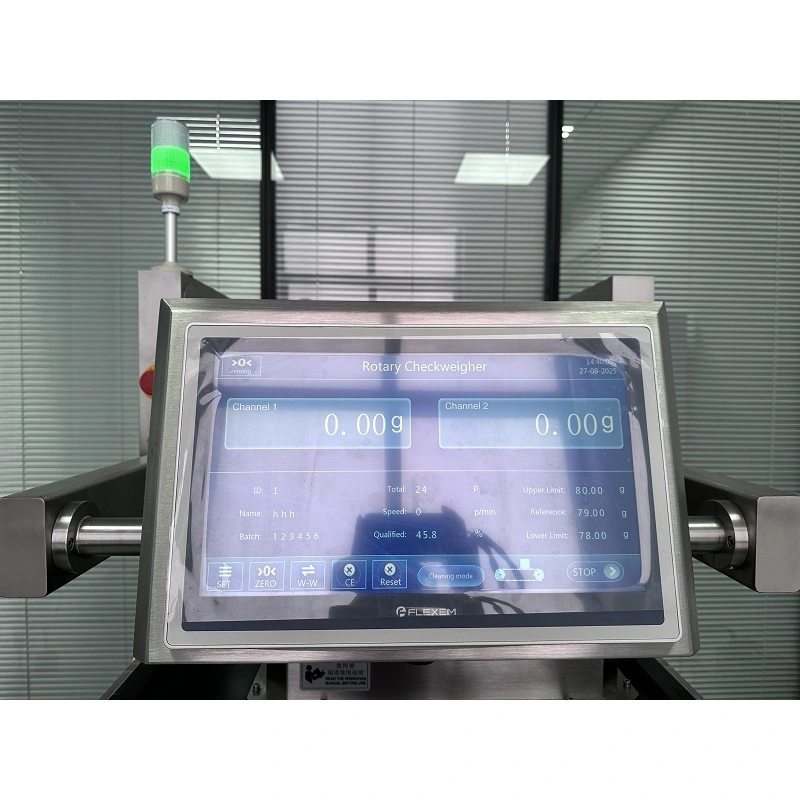

◎ Large display for clear viewing and easy operation.
◎ Default Chinese and English user interface.
◎ Photoelectric positioning: The turntable accurately delivers products to the weighing sensor.
◎ Durable chain conveyor.
◎ Three-level operation permission management with customizable passwords.
◎ 100 preset product recipes.
◎ Automatic rejection of unqualified products.
◎ Multiple product lanes for improved production efficiency (customizable number of lanes).

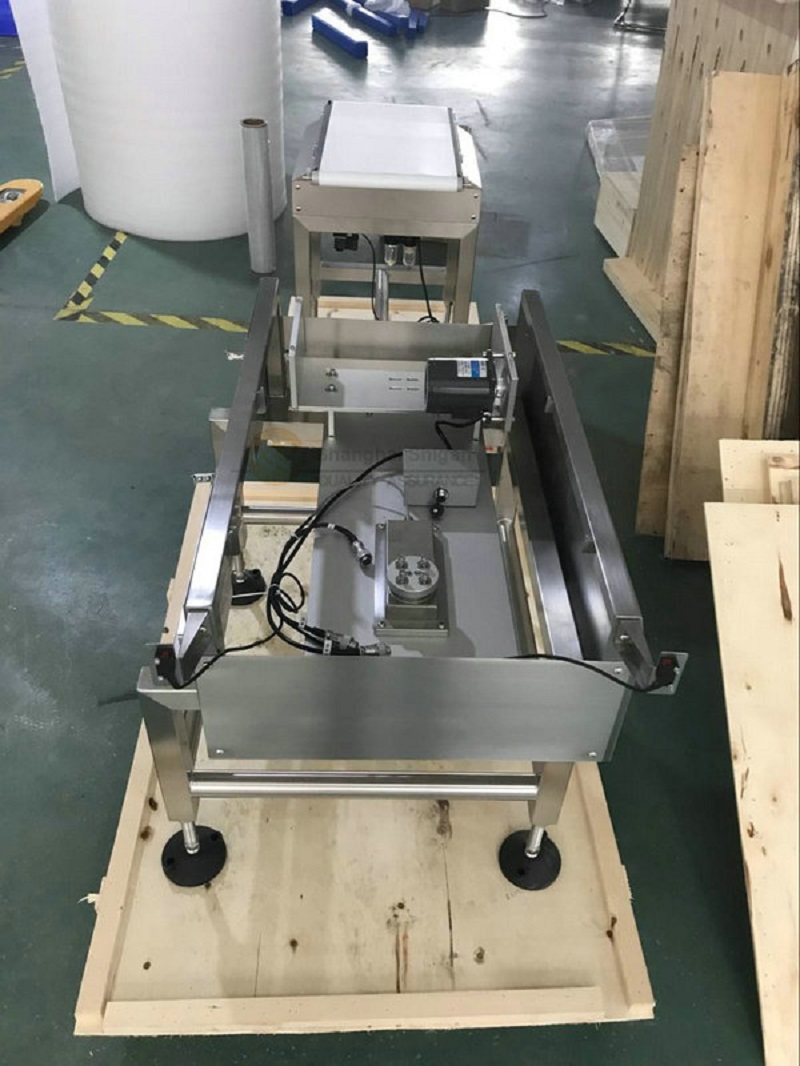

Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
