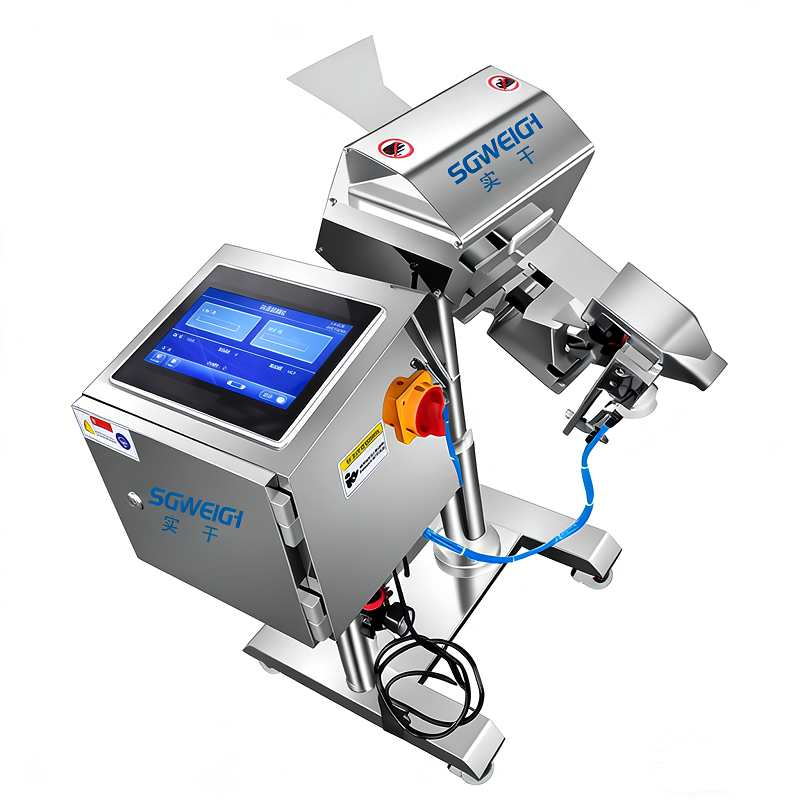

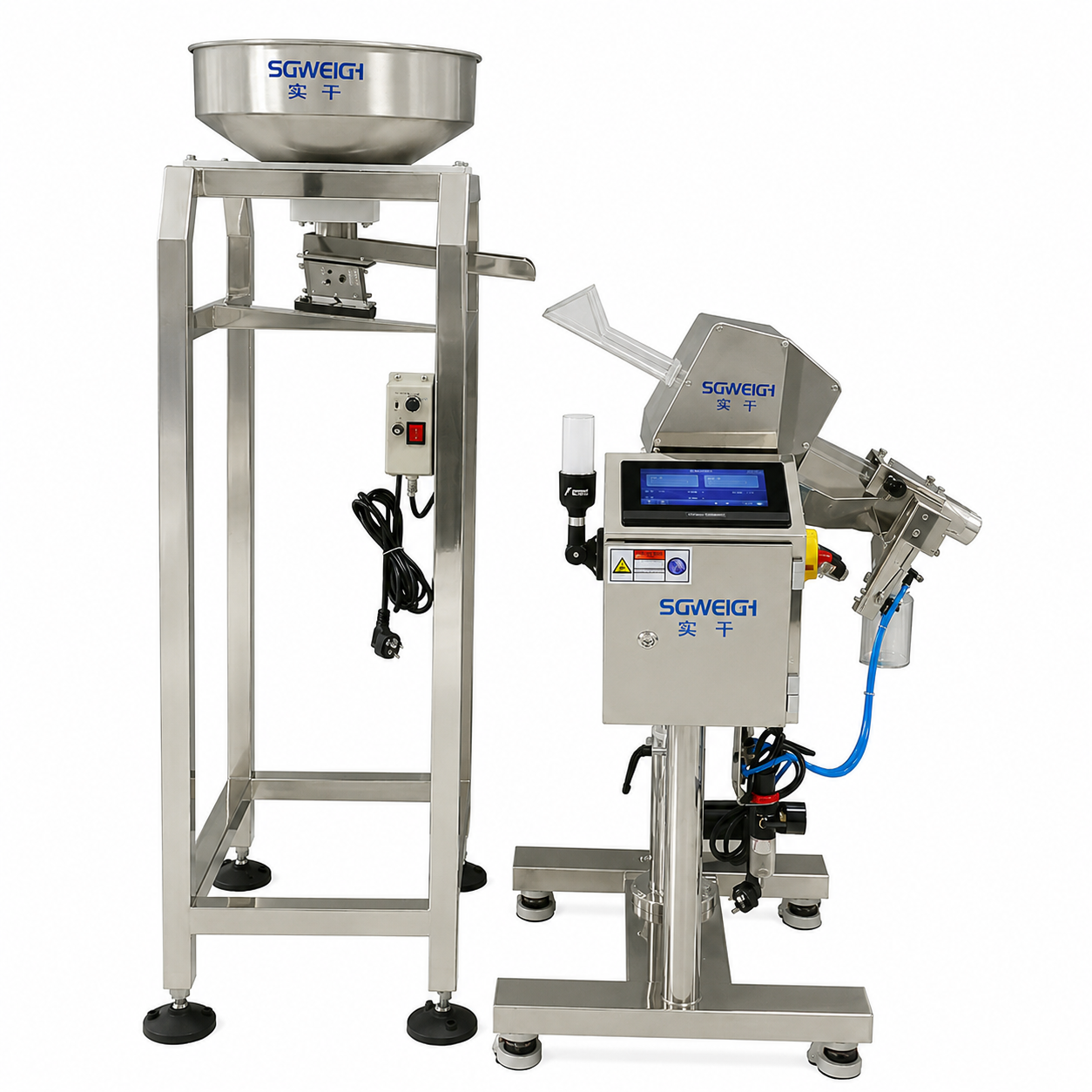

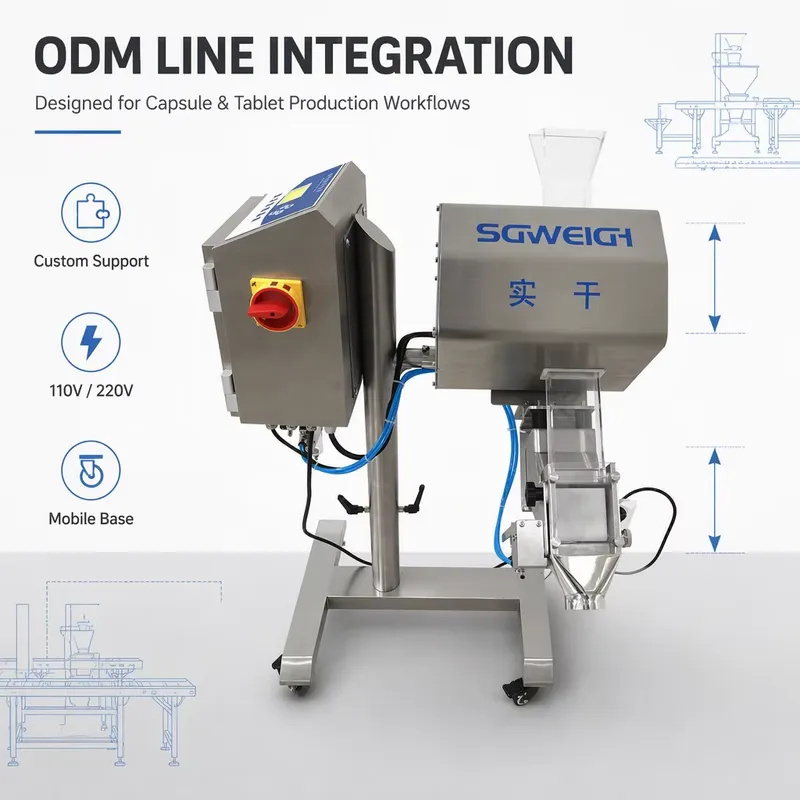

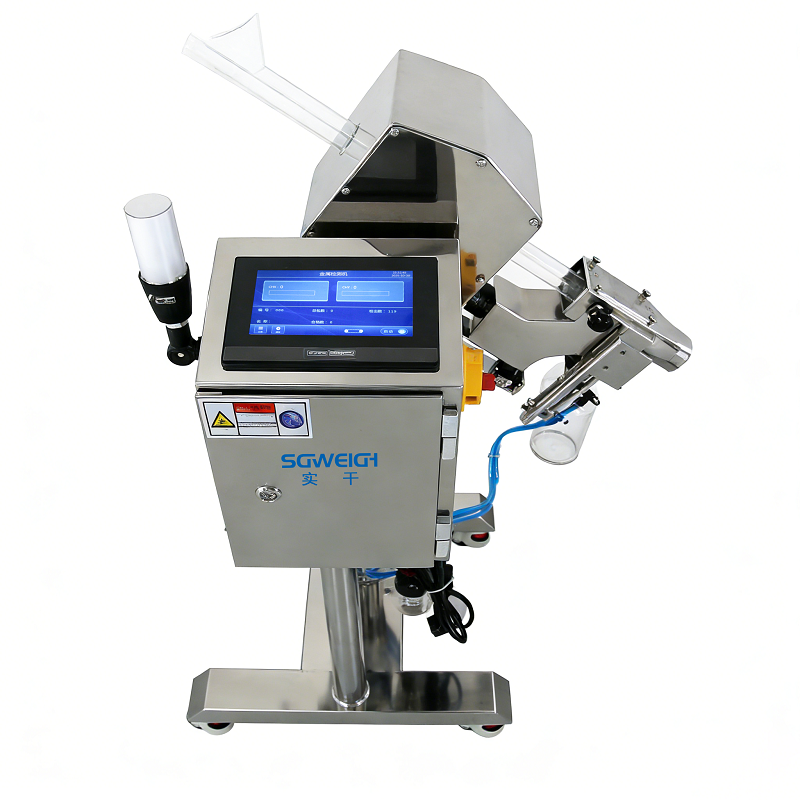

The Capsule & Tablet Metal Detector is designed for inline inspection of pharmaceutical solid-dose products, including hard capsules, and tablets. It detects metallic contaminants such as ferrous metals, non-ferrous metals, and stainless steel, helping pharmaceutical manufacturers improve product quality and reduce the risk of contaminated products reaching the next production stage.

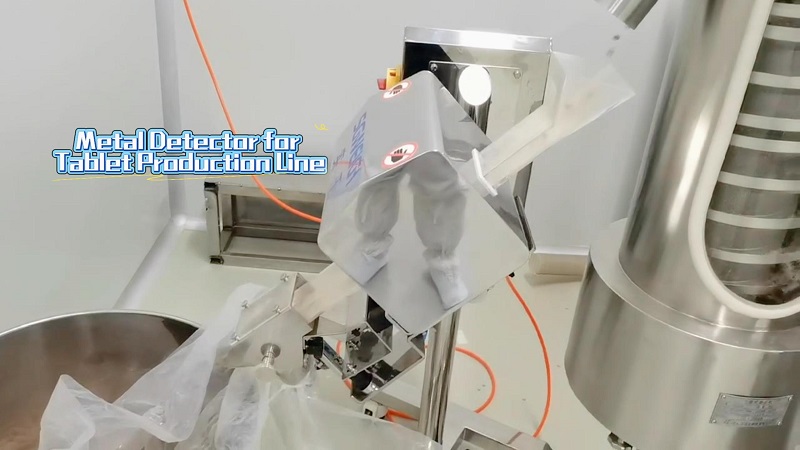

Featuring high-sensitivity detection technology, stable signal processing, and an automatic reject mechanism, the system can be integrated with tablet presses, capsule filling machines, dedusters, and downstream packaging lines. Its hygienic construction and easy-to-clean product-contact components support efficient operation in pharmaceutical manufacturing environments.
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm

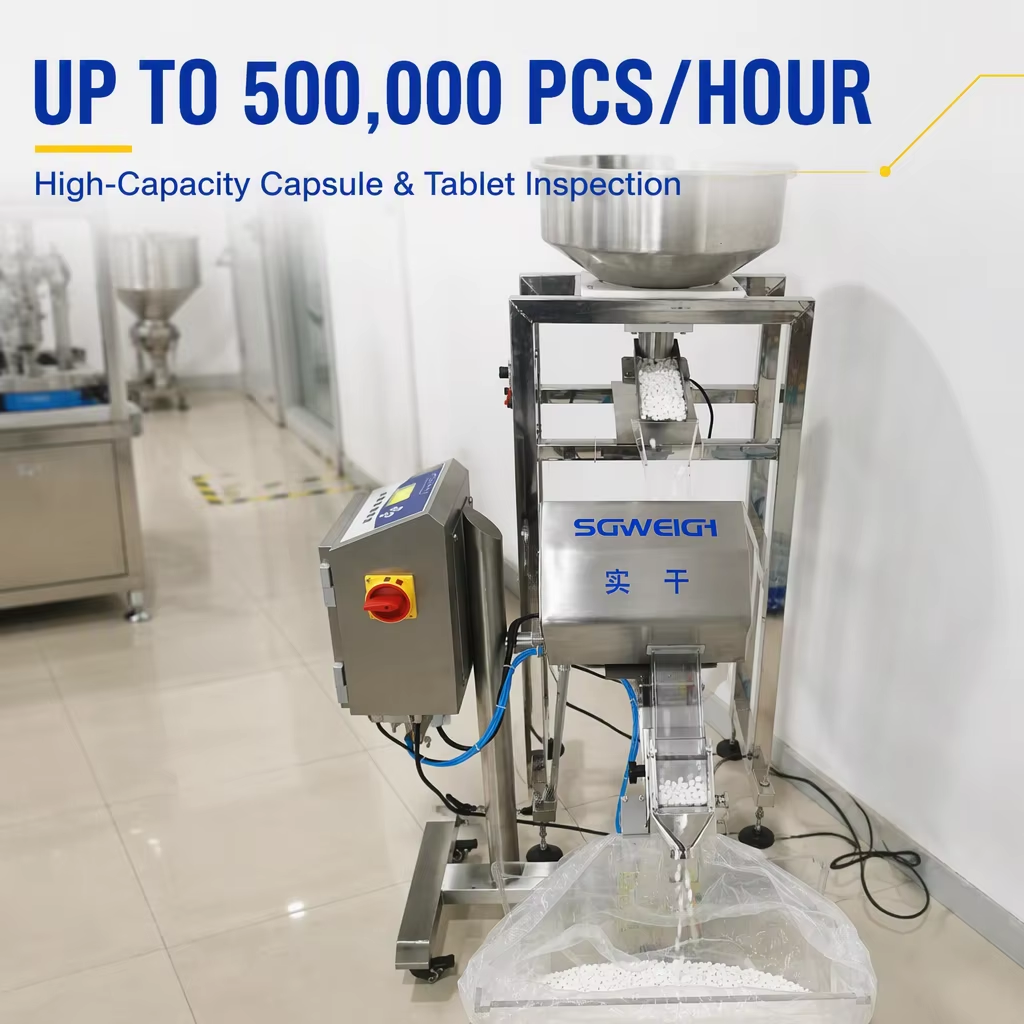

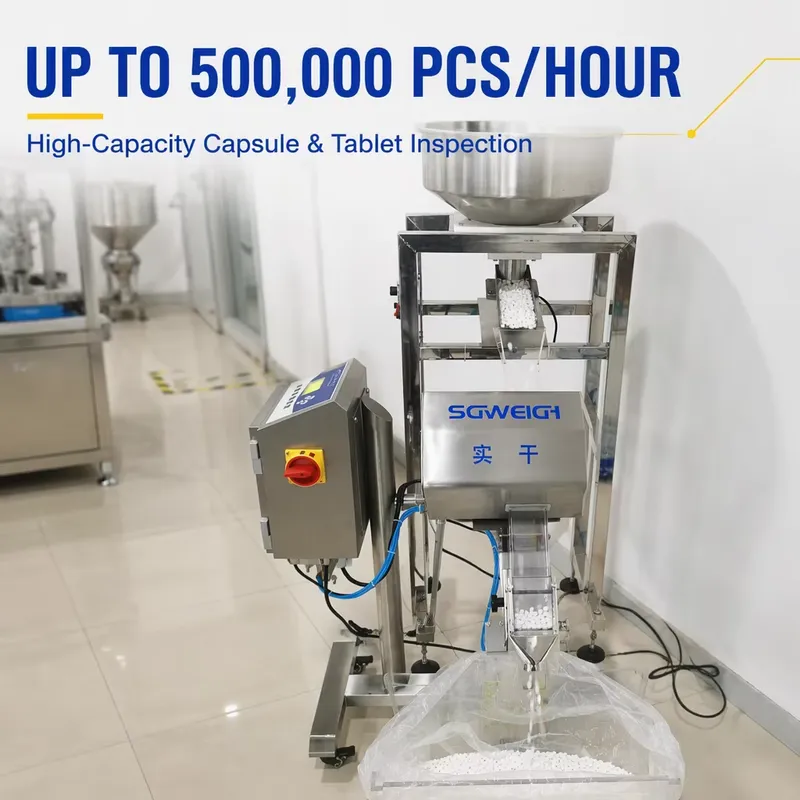

Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg

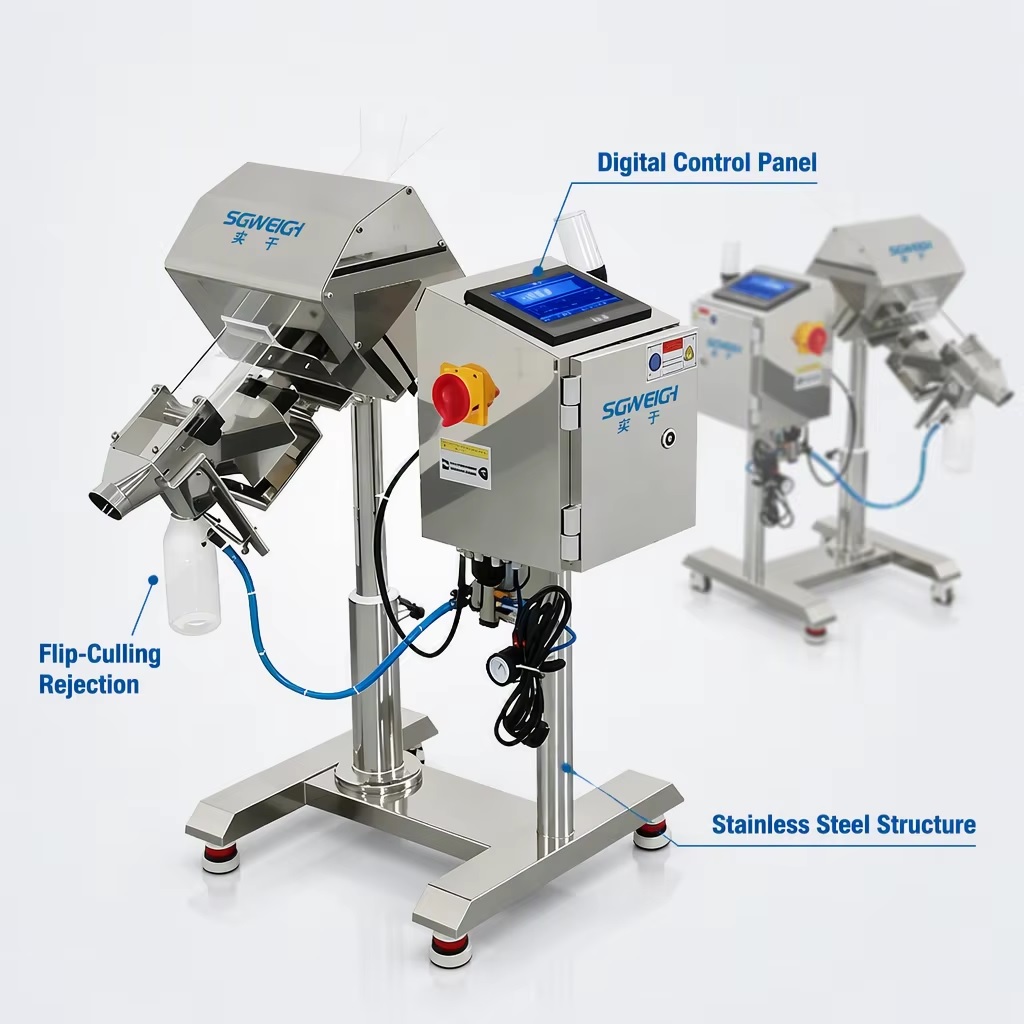

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. High-Sensitivity Metal Detection: Detects ferrous, non-ferrous, and stainless-steel contaminants.
2. Tablet & Capsule Inspection: Suitable for pharmaceutical tablets, hard capsules.
3. Automatic Reject System: Separates contaminated products from qualified products.
4. Stable Detection Performance: Designed to reduce interference from vibration, static electricity, and electrical noise.
5. GMP-Oriented Hygienic Design: Stainless-steel construction and easy-clean product-contact components.
6. Easy Operation: Touchscreen control, product parameter management, and inspection monitoring.
7. Production Line Integration: Compatible with tablet presses, capsule fillers, dedusters, and packaging systems.
8. Optional Data Management: Electronic records and audit trail functions may be available depending on the configuration.
