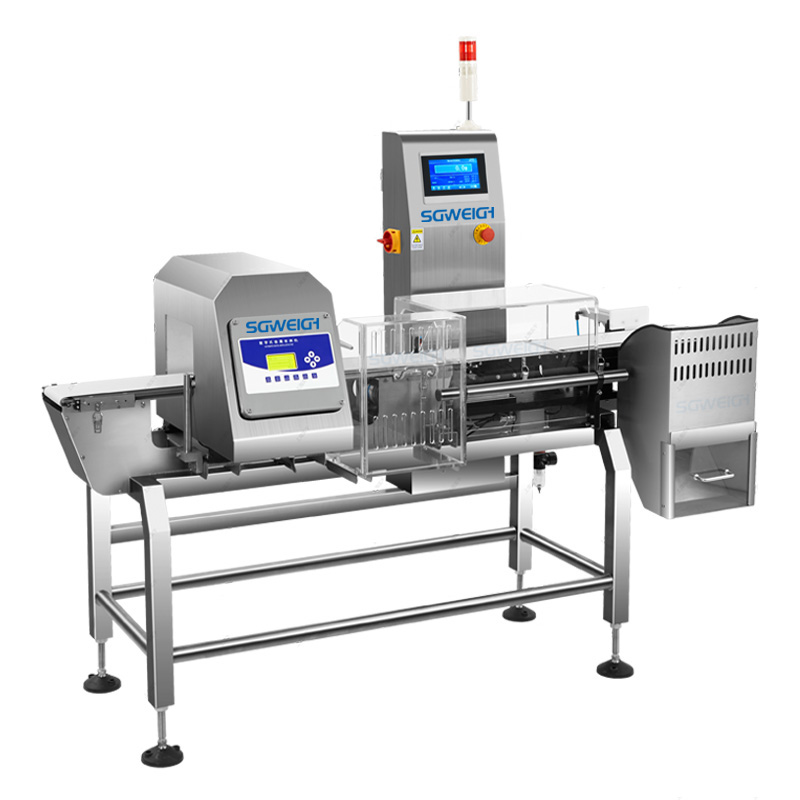

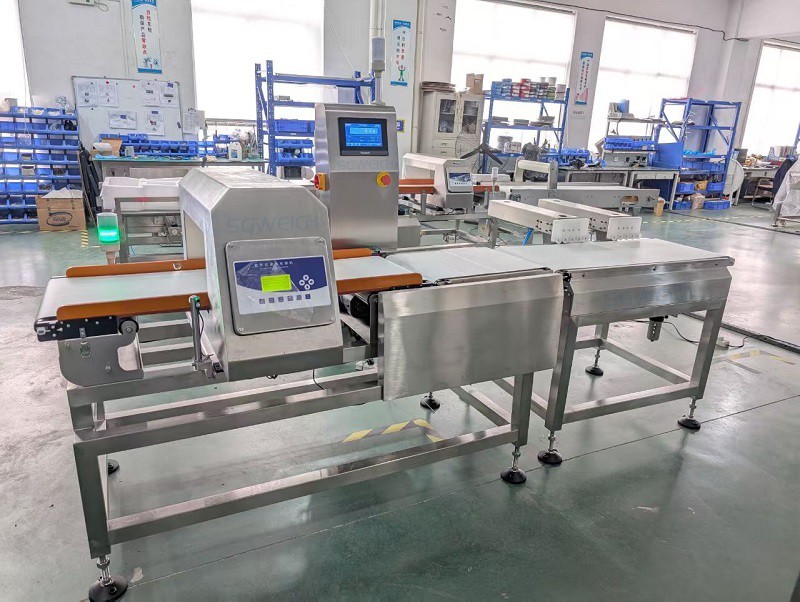

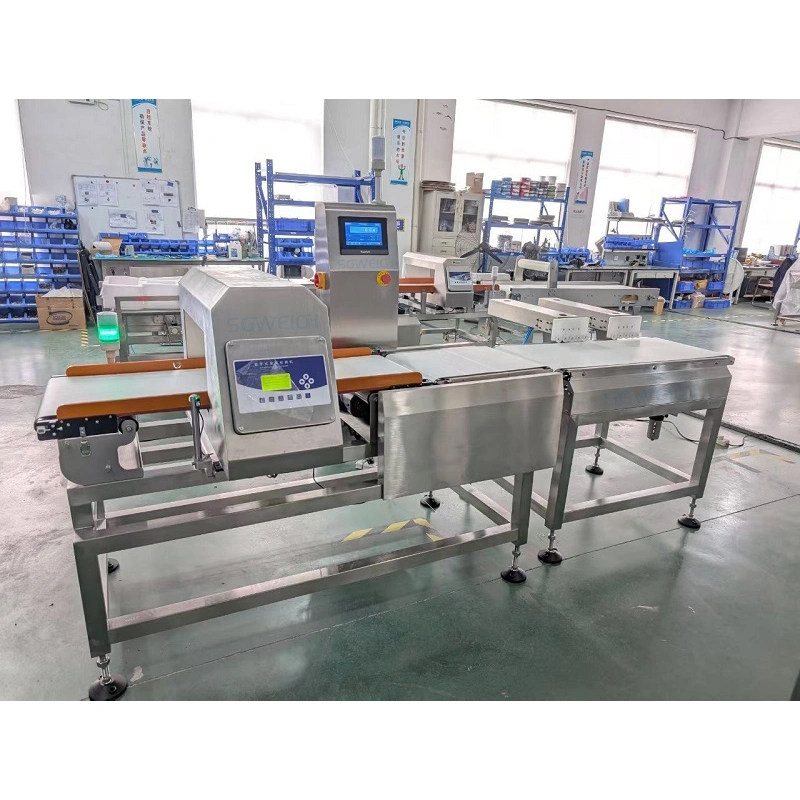

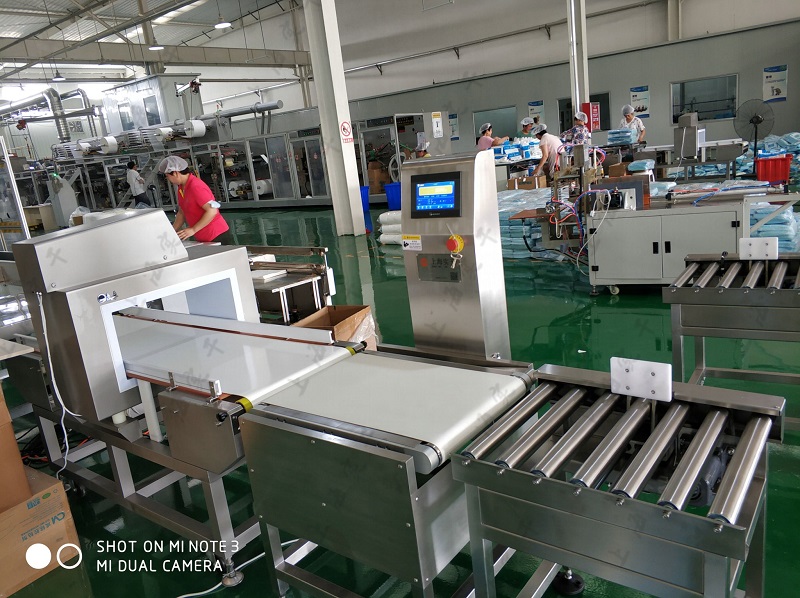

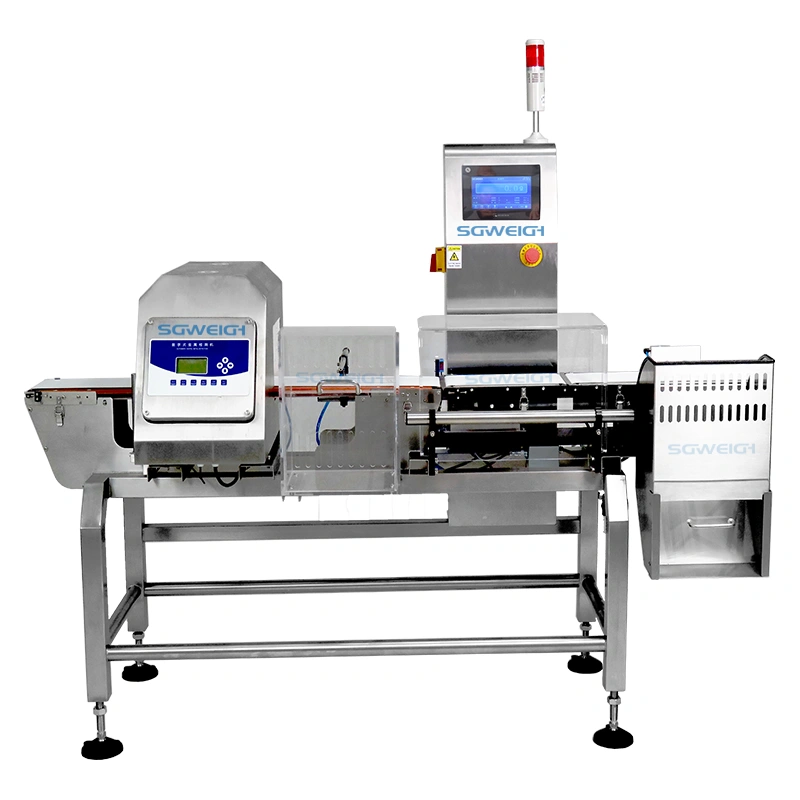

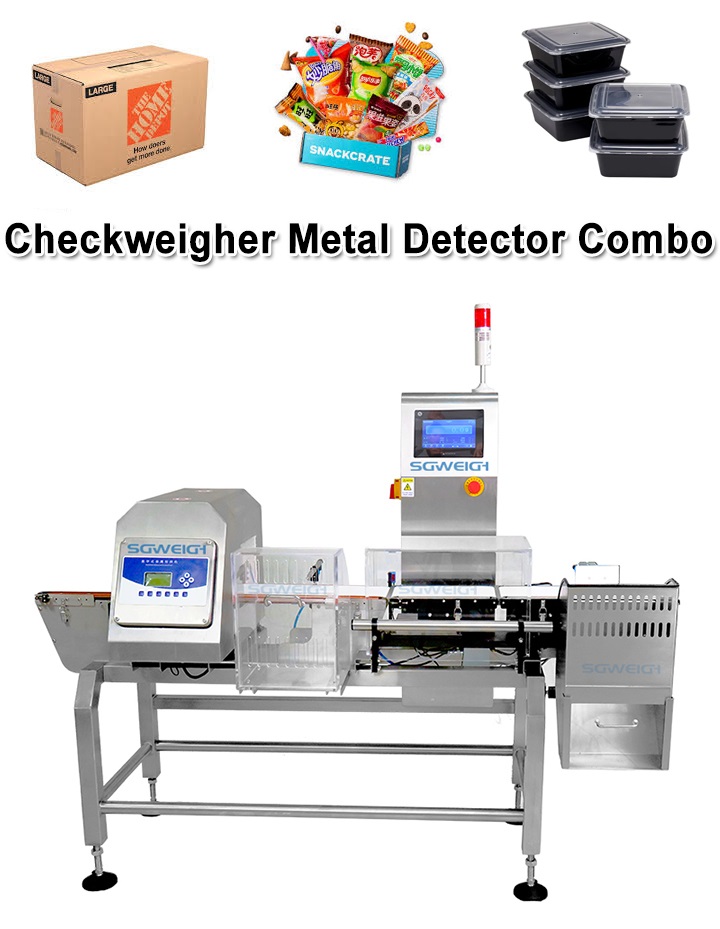

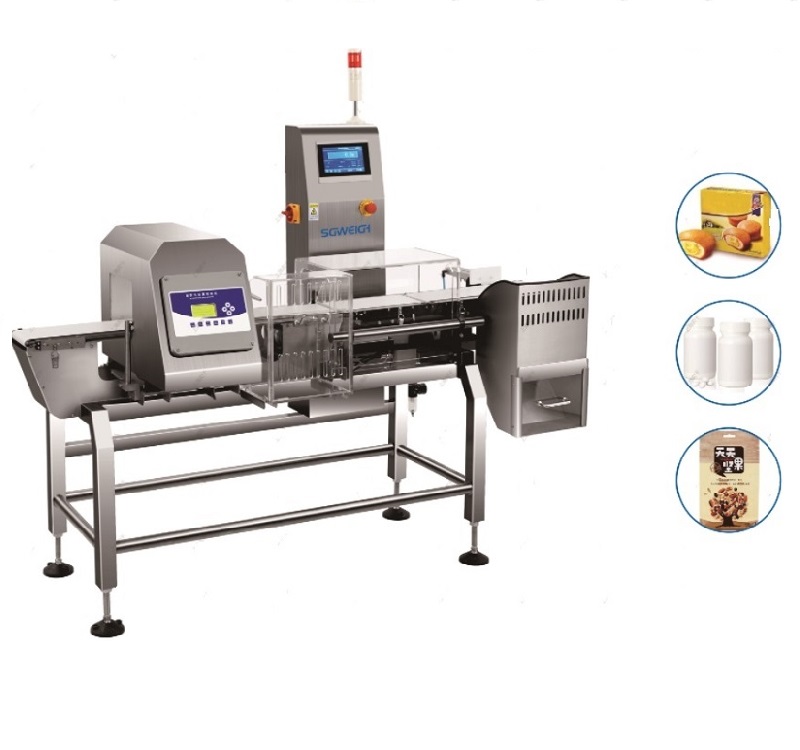

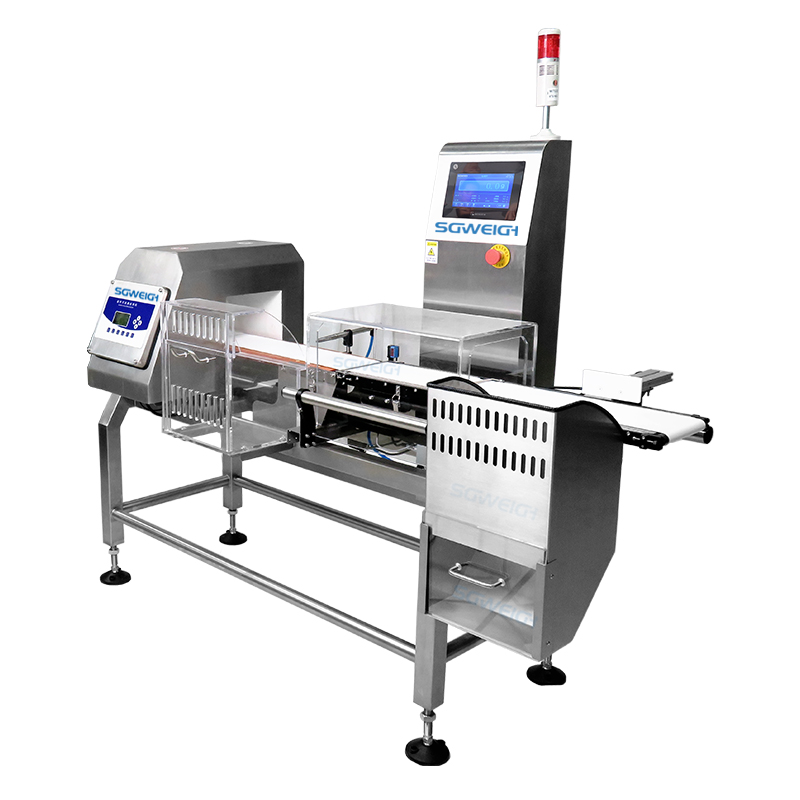

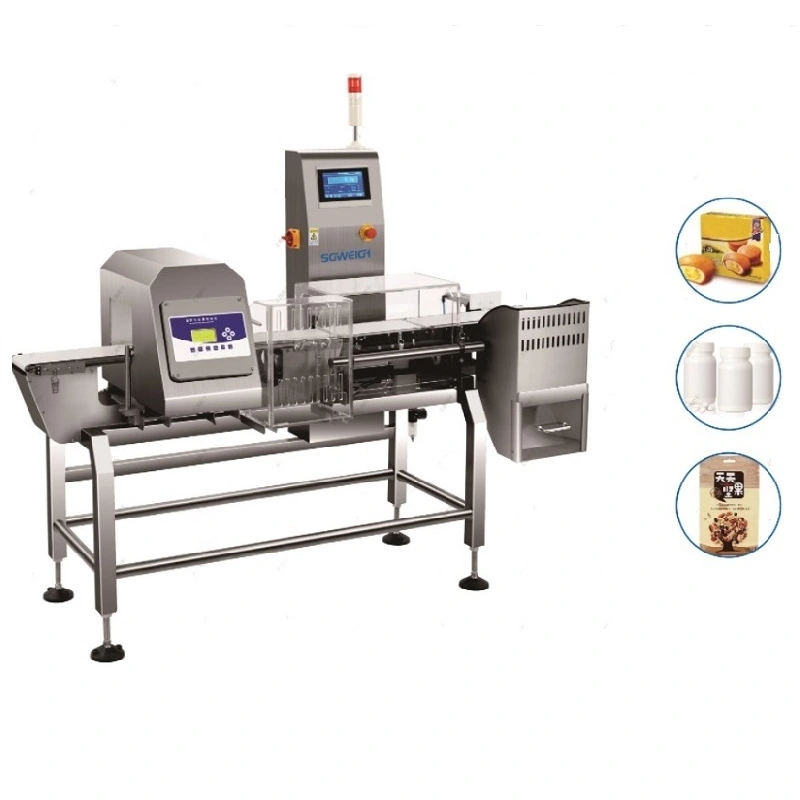

A Combi Checkweigher and Metal Detector is an integrated inspection system that combines dynamic weight checking and metal contamination detection into a single compact unit. Designed for modern automated production lines, it provides 100% inline product inspection, ensuring every packaged product meets both weight specifications and food safety requirements before shipment.
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W
Dimensions: about L2267×W589×H1500mm (final design shall prevail)
1.Combines metal detection and dynamic checkweighing in one compact system.
2.Detects ferrous, non-ferrous, and stainless steel contaminants with high sensitivity.
3.High-speed, high-accuracy dynamic weight inspection.
4.Automatic rejection for contaminated, underweight, and overweight products.
5.Space-saving design compared to separate inspection machines.
6.Integrated touchscreen HMI for centralized operation and monitoring.
7.Multiple reject options including air blast, pusher, swing arm, and drop flap.
8.Recipe management for fast product changeovers.
9.Stainless steel hygienic construction suitable for washdown environments.
10.Real-time production statistics, data logging, and traceability.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
