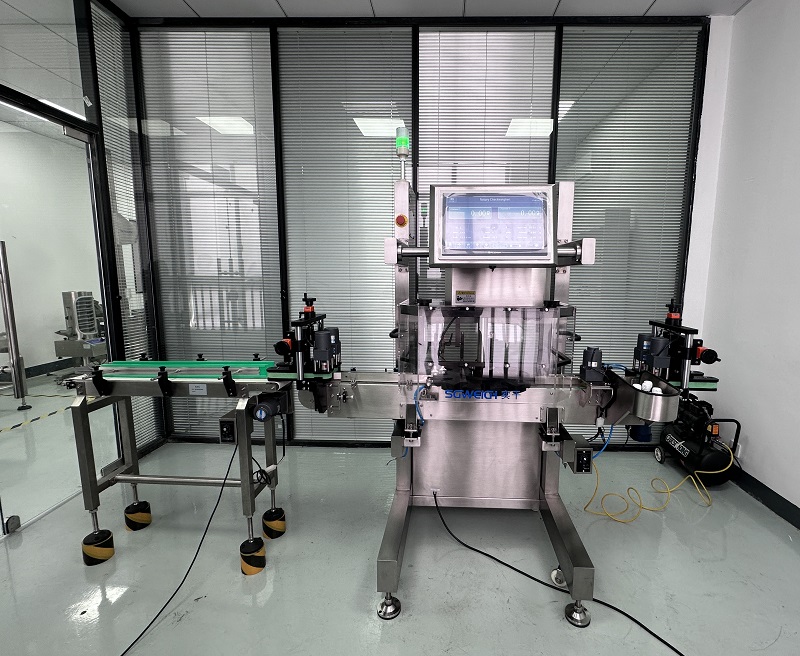

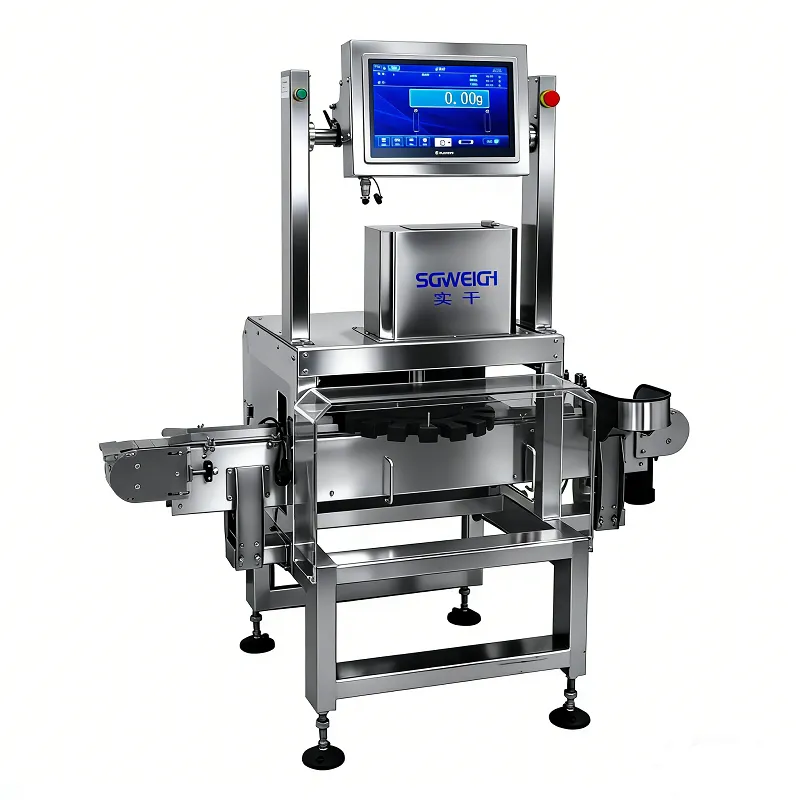

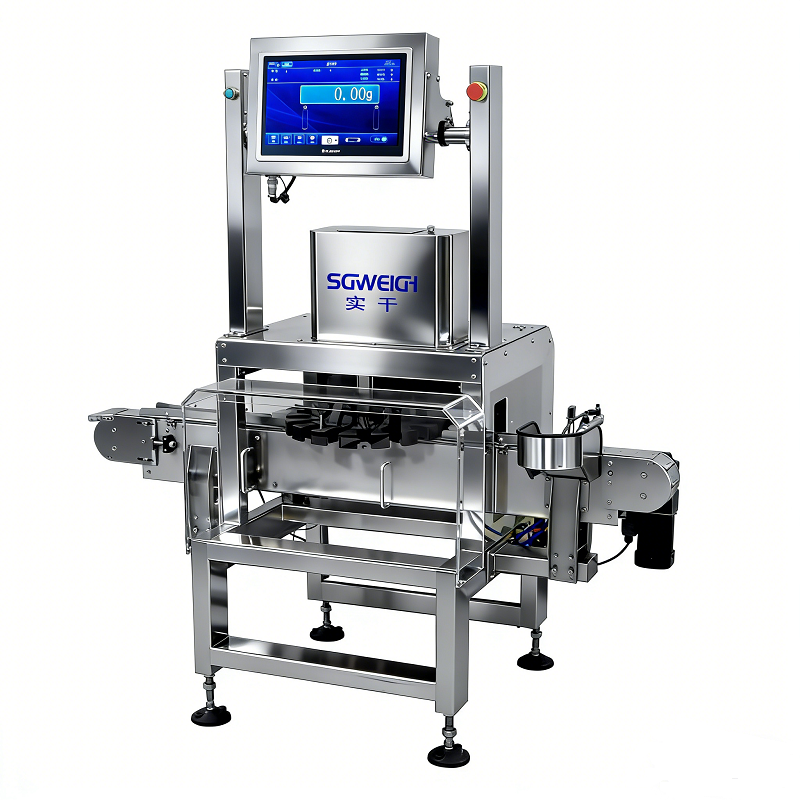

Tablet & Capsule Bottle Rotary Checkweigher is an inline dynamic weighing system designed for high-speed weight inspection of bottles containing tablets, capsules, and other solid/liquid products. The rotary indexing mechanism provides stable bottle positioning during weighing, helping achieve reliable weight measurement without interrupting continuous production.
The Bottle Weight Inspection System can automatically detect the weight of each bottle, compare the measured value with preset upper and lower limits, and reject underweight or overweight bottles. It is suitable for production lines where consistent product quantity, filling accuracy, and automated quality control are required.
Type:SG-Z1
Weighing scope:2-300g
Restrictions of product:Ф10-100 Н:20-200(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt Speed:0-50m/min
Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)
Chain plate width:100mm
Weight of machine:about 260Kg
Powder supply ：AC220V 50HZ
Power:about 400W
Main material:SUS304
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

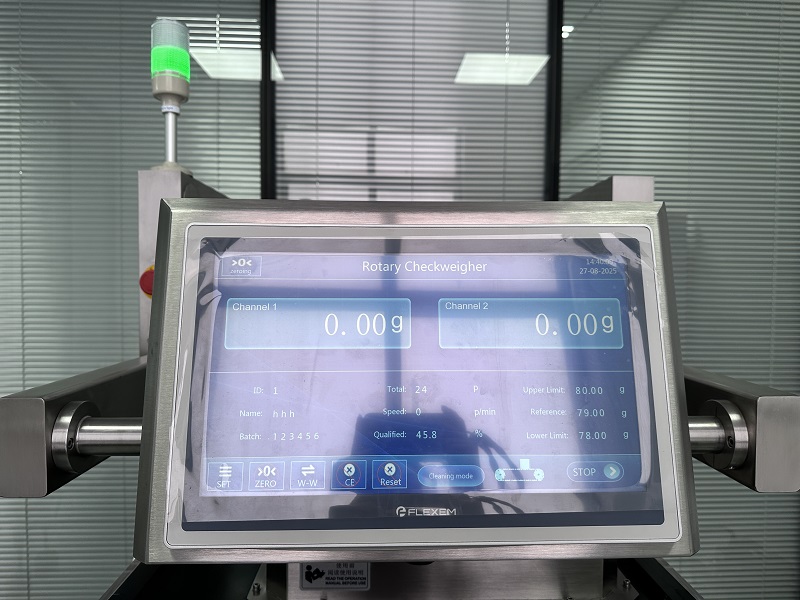

1.Large screen display, clear viewing and convenient operation
2.Chinese-English interface ( Multiple languages can be customized)

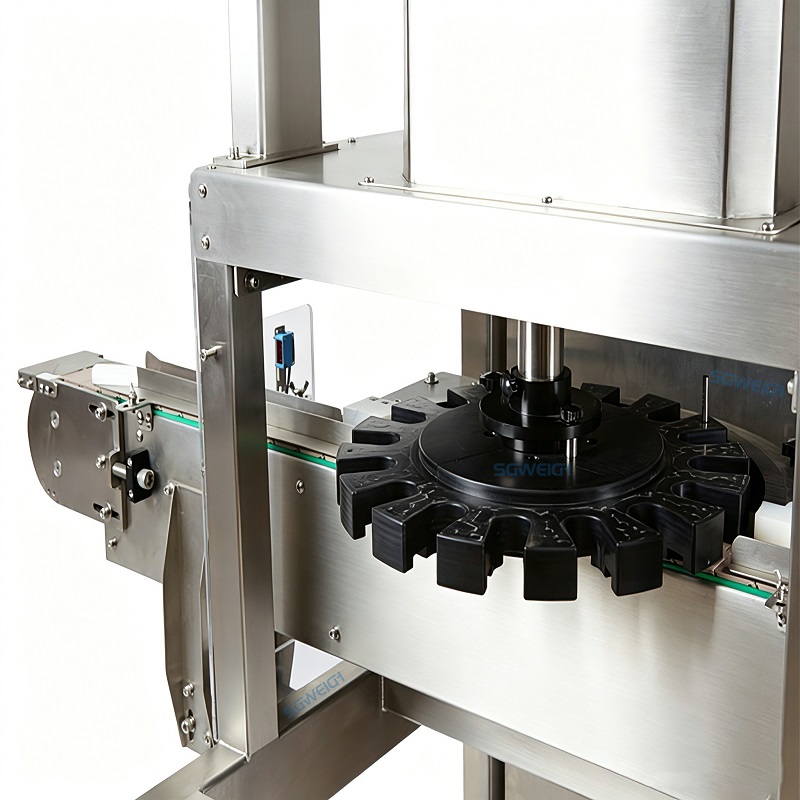

3.Photoelectric positioning, the turntable accurately sends the product to the load cell
4.Chain conveyor is strong and durable
5.Three-level operation authority management, support self-set Password
6.100 kinds data can store with strong data statistics function.

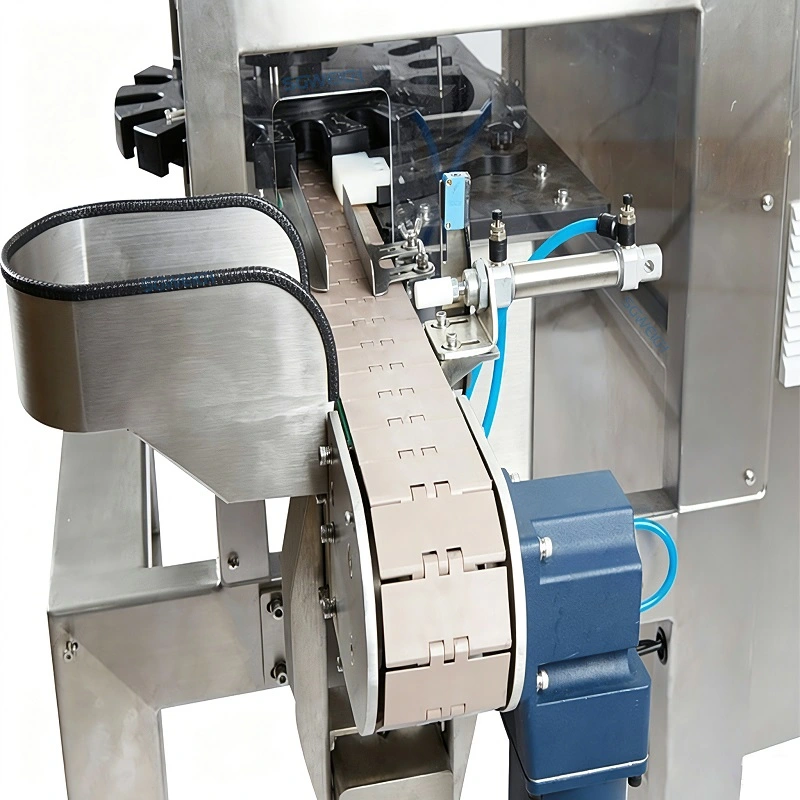

7.Unqualified products are automatically rejected (push type, air blowing type are optional)
8.Multiple lane pass products to improve production efficiency (the number of lanes can be customized)
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
