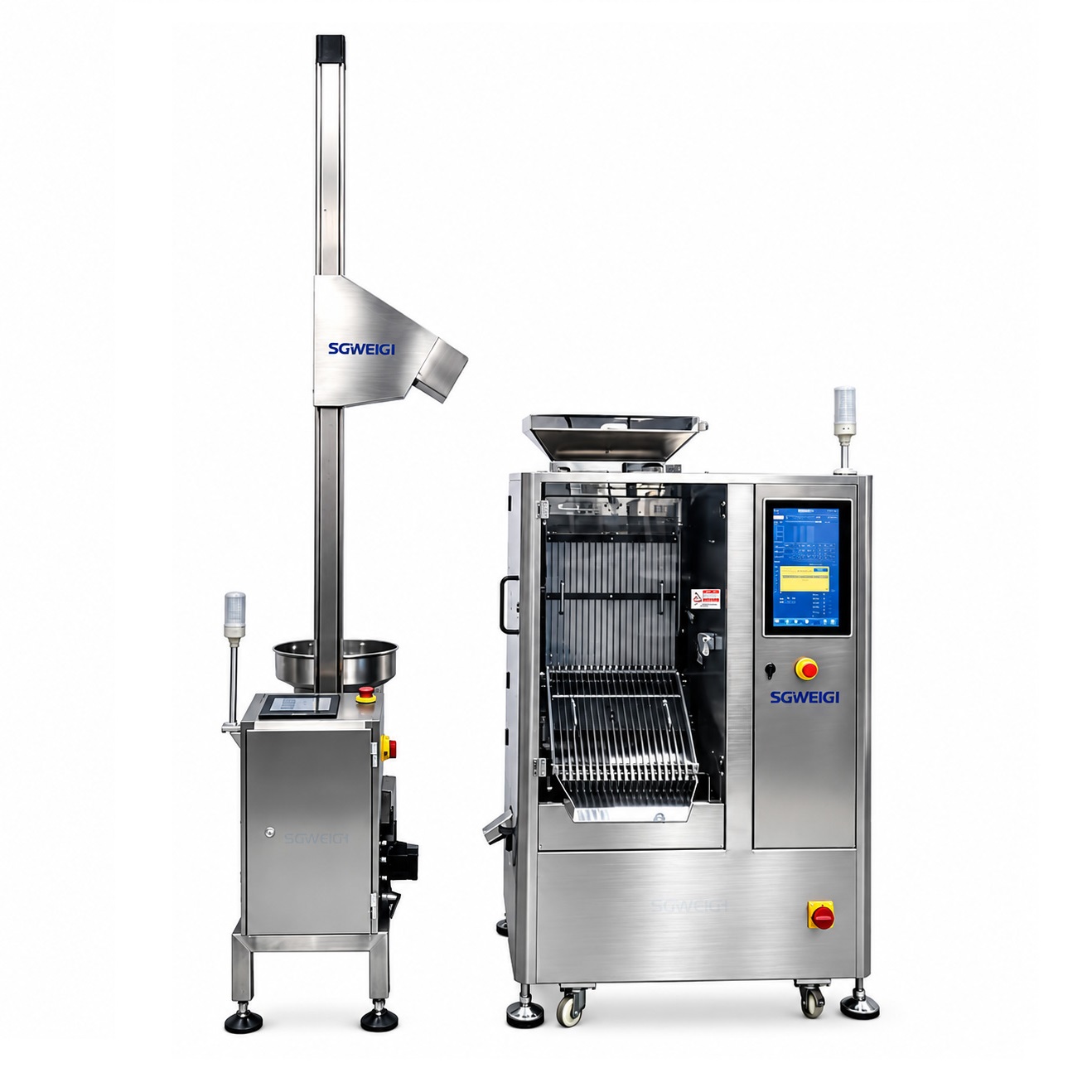

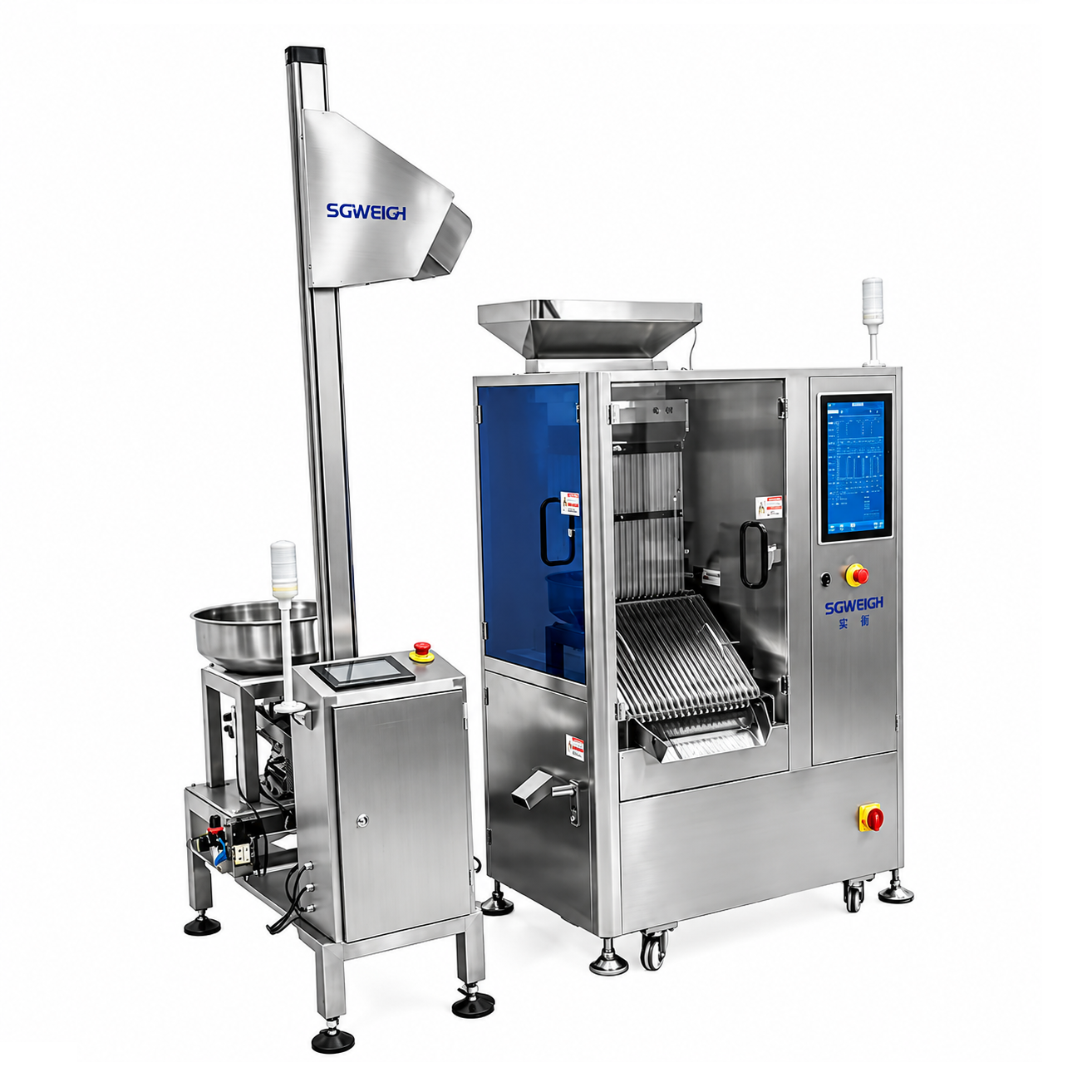

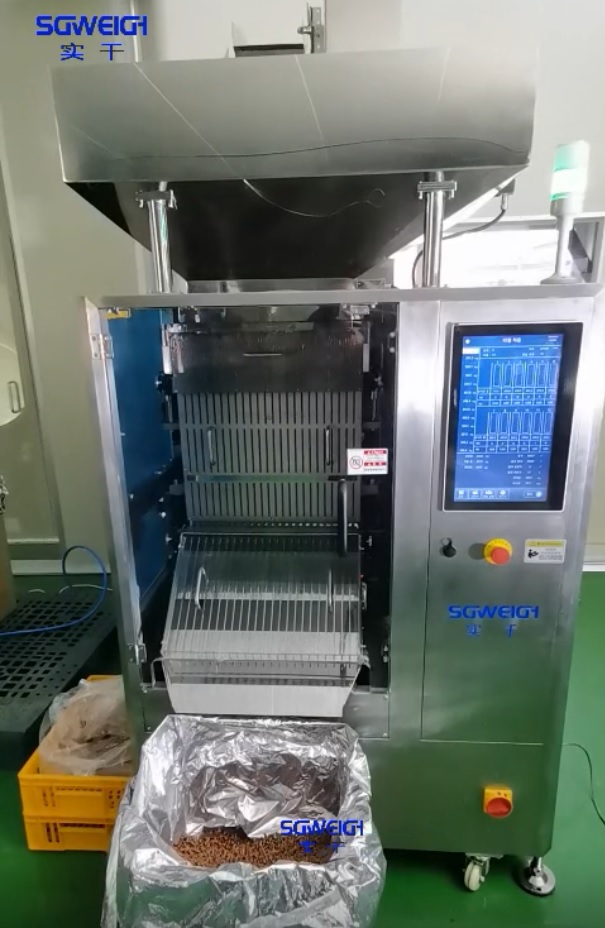

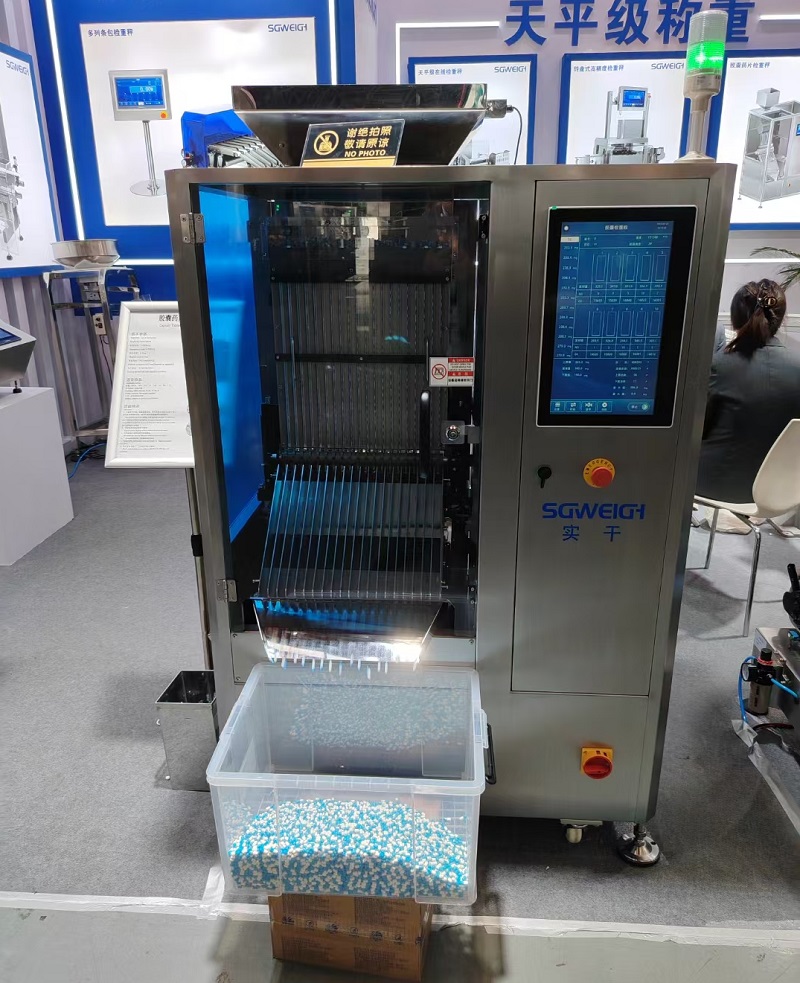

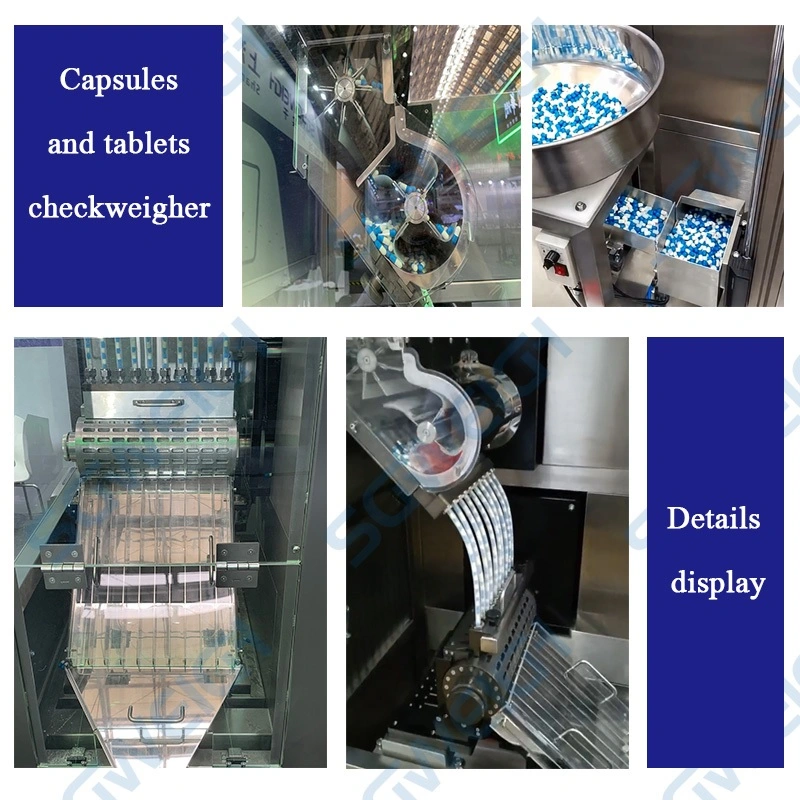

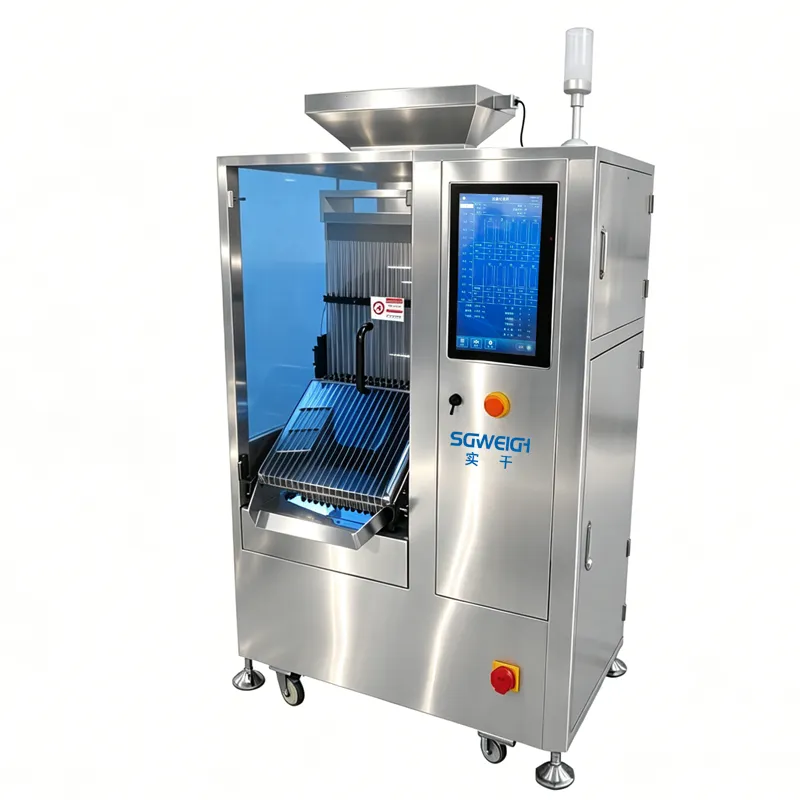

The Hard Gelatin Capsule Checkweigher is a high-precision automatic checkweighing system designed for continuous, 100% weight inspection of hard gelatin capsules. It accurately identifies underweight, overweight, and missing capsules while maintaining stable high-speed operation.
With advanced dynamic weighing technology, the system can perform real-time weight measurement without interrupting production.100% Capsule Checkweigher is suitable for automated capsule production and packaging lines where precise weight control, high throughput, and reliable reject accuracy are required.
| Type | SG-CT20 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 150,000 PCS/HR |
| Number of columns | 20 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30℃ The temperature change during use should not exceed the range of 1℃/h、Humidity 30~70% RH (but no condensation) |
| Shell material | SUS304/316 |
1. High‑Precision Dynamic Weighing
Provides accurate weight measurement for individual hard gelatin capsules.
2. 100% Weight Inspection
Automatically checks every capsule to identify weight deviations.
3. High‑Speed Operation
Designed for continuous inspection on high‑speed production lines.
4. Automatic Reject System
Removes underweight and overweight capsules without stopping the production line.

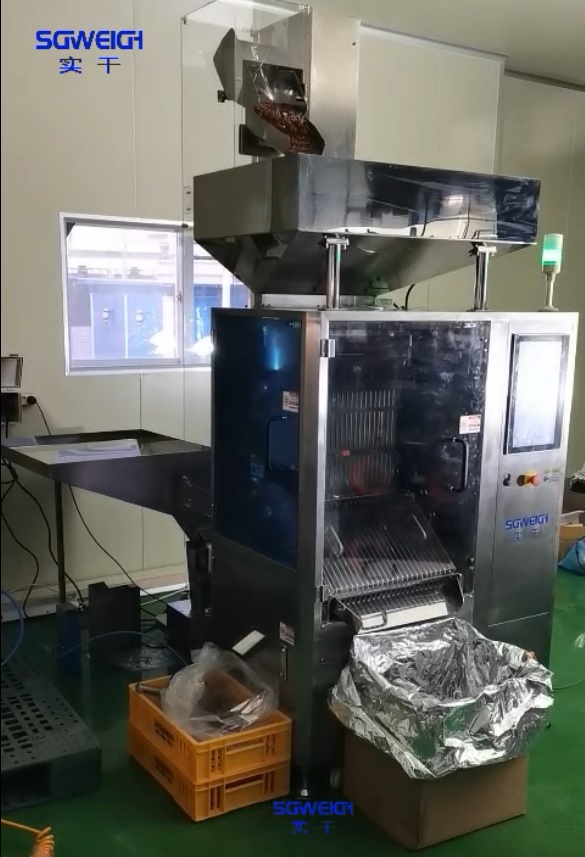

5. Multi‑Lane Configuration
Available with multiple weighing lanes to increase production capacity.
6. Real‑Time Monitoring
Continuously monitors capsule weight and production data.
7. Stable Weighing Performance
Optimized for reliable operation under continuous production conditions.
8. Easy Operation
User‑friendly touchscreen interface simplifies parameter setting and production monitoring.
9. Data Management
Supports production statistics, weight records, and quality‑control data management.
10. Customizable Design
Lane numbers, weighing range, speed, and conveyor configuration can be customized according to production requirements.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
