New Capsule Checkweigher For Pharmaceutical Industry

2023-07-29 17:20:50

Technical Parameters


Weighing scope :5-2000mg

Display scale:0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

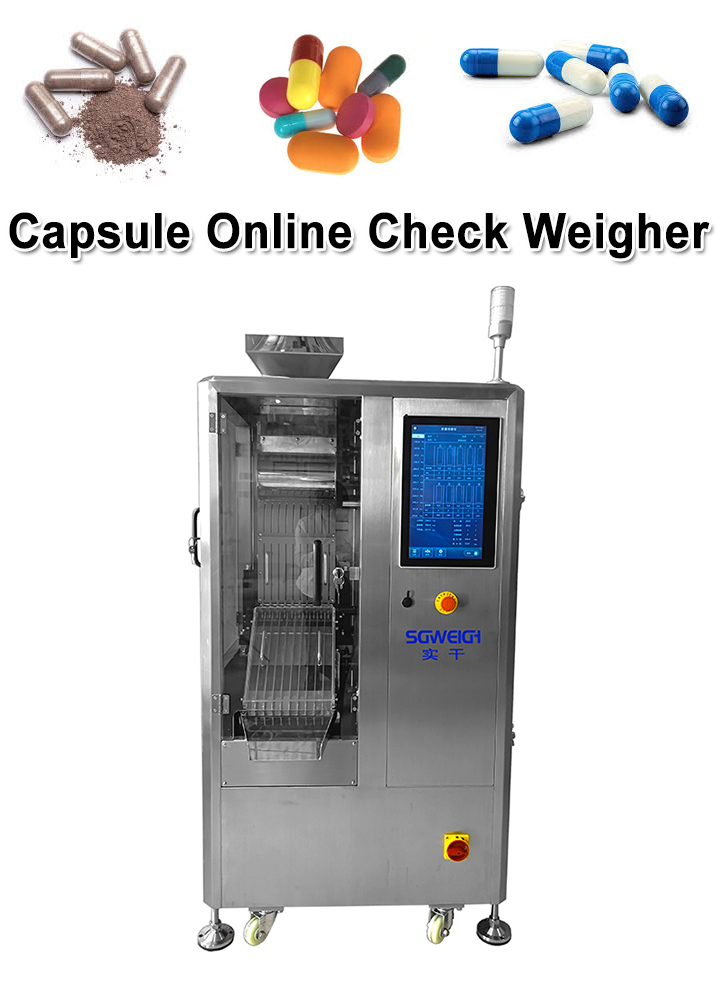

Capsule Checkweigher

Main Features

◎Large screen display clear viewing and convenient operation.

◎Chinese-English interface( Multple languages can be customized).

◎Suitable for regular capsules and tablets

◎It can actually display the relevant data of eachchannel

◎Three-level operation authority management support se lf-set passwora.

◎100 kinds data can store with strong data statistics function.

◎All channels can be cleaned without disassembly.

◎Multi-channel passing products to improve production efficiency (the number of channels can be customized).

Capsule Checkweigher
