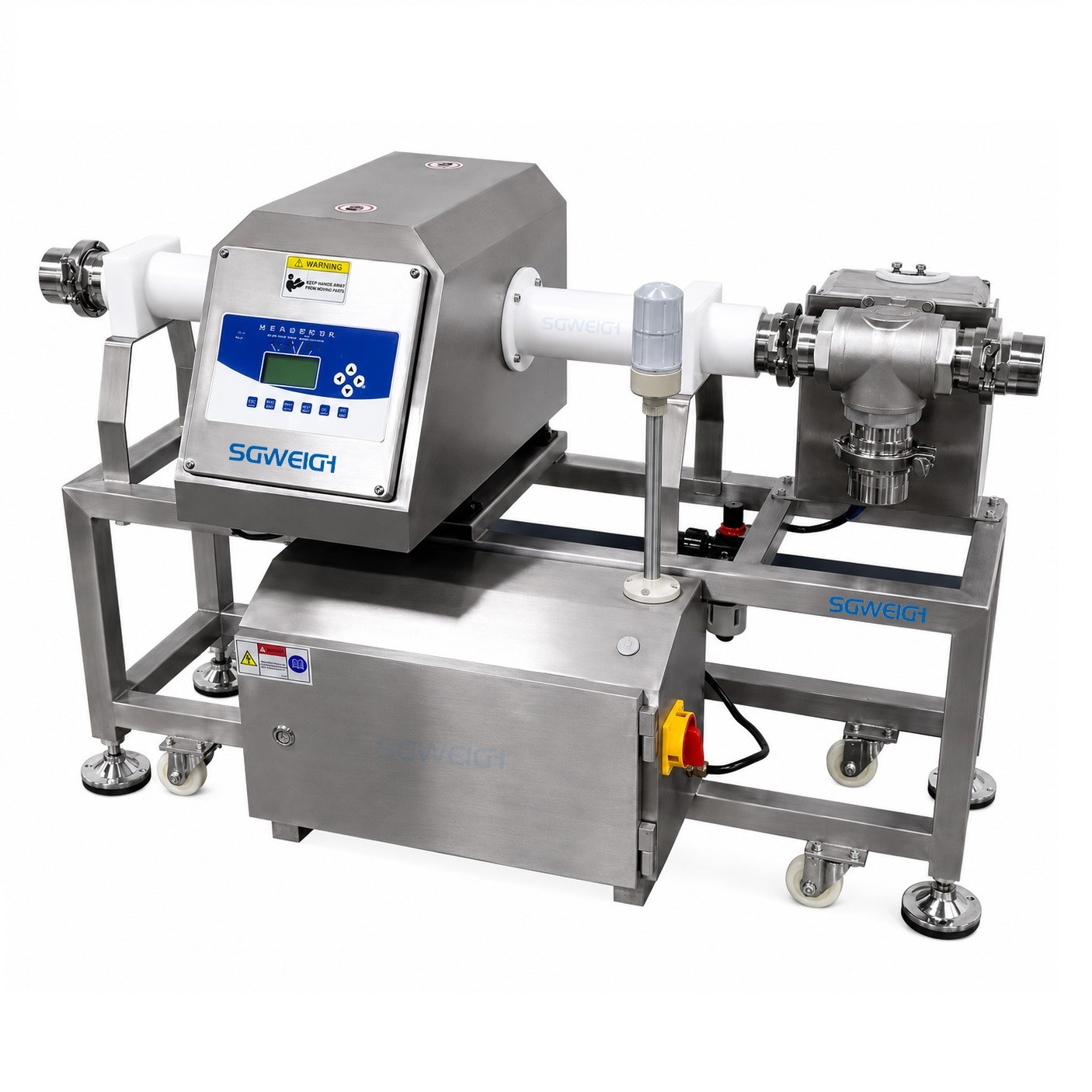

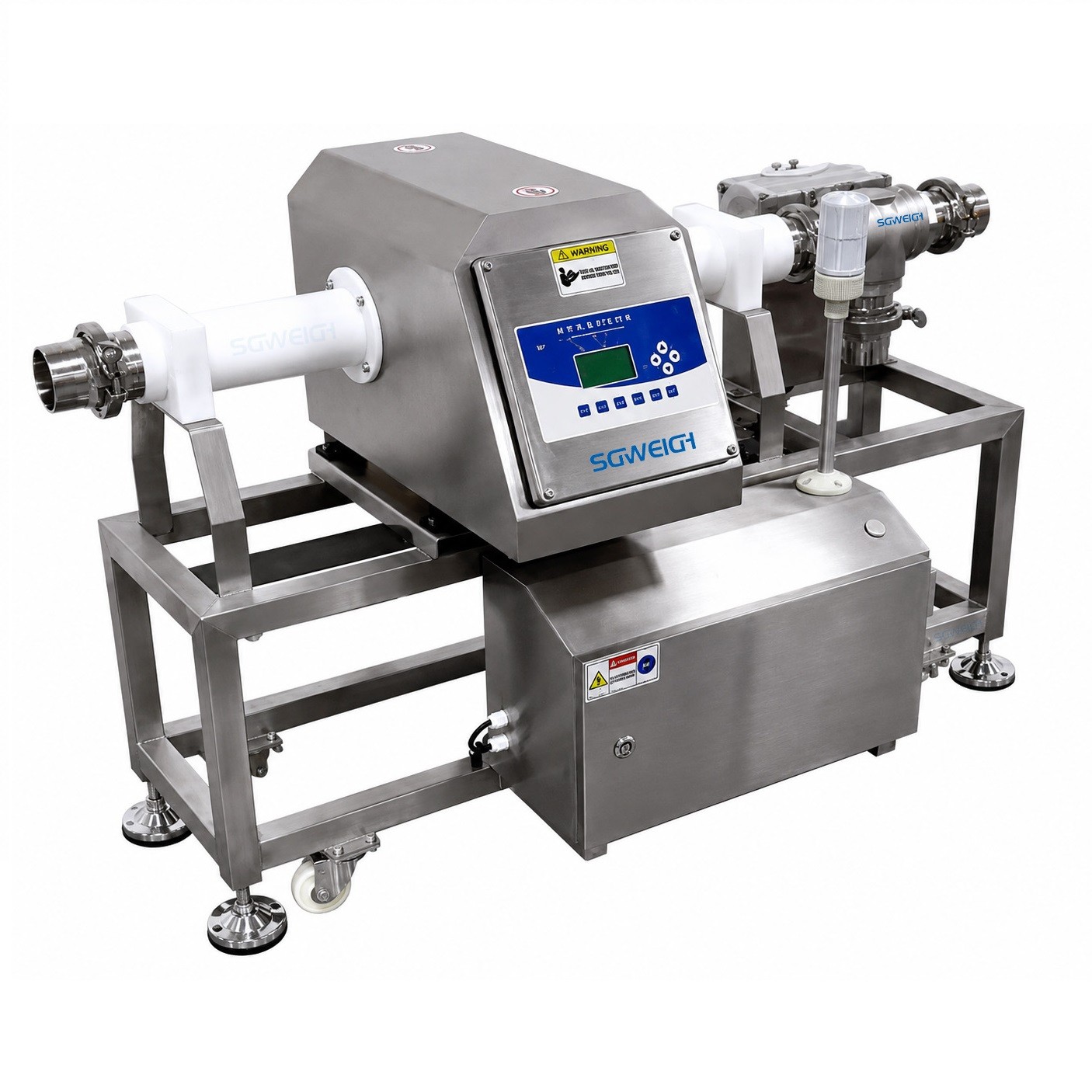

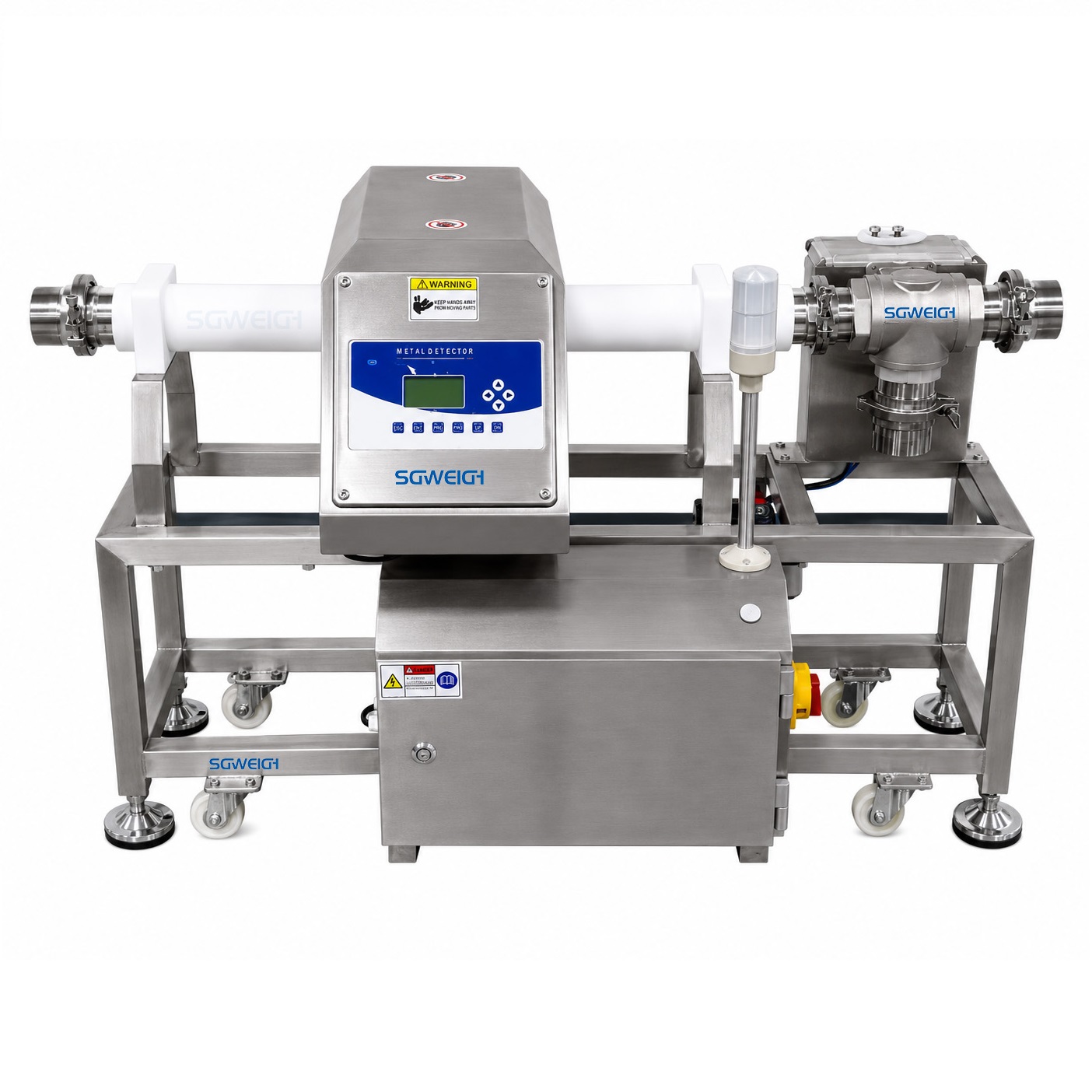

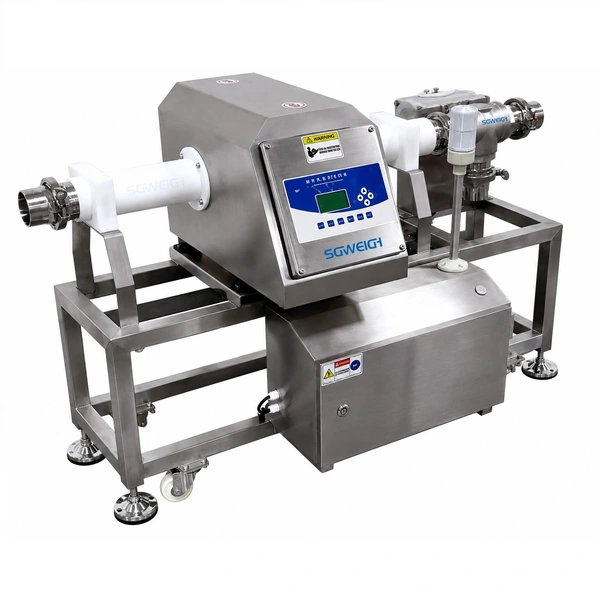

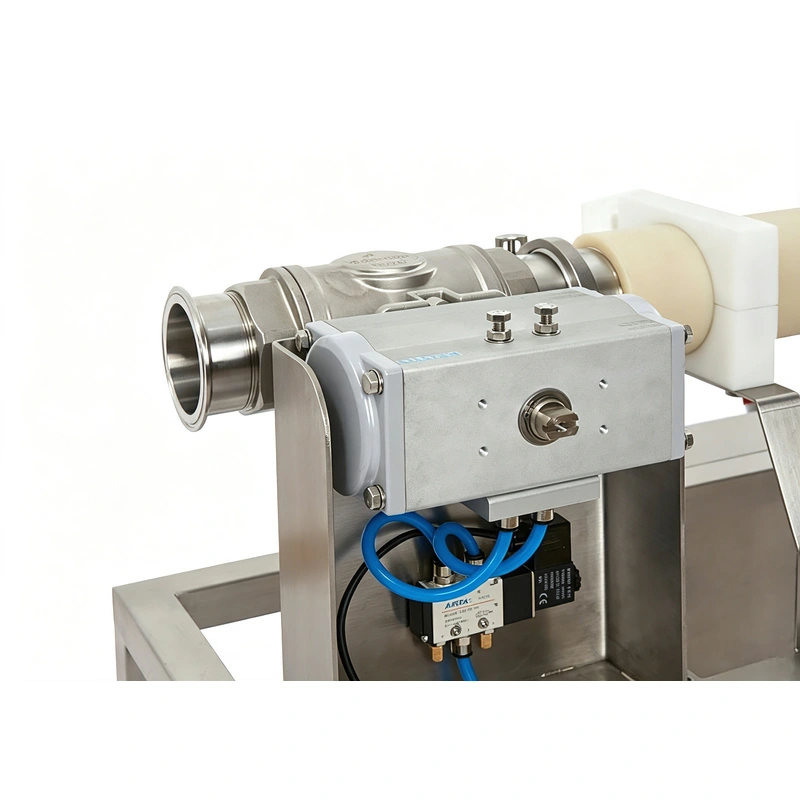

Liquid Sauce In-Line Pipeline Metal Detector is a continuous metal inspection system designed for liquid, viscous, and semi-liquid food products transported through pressurized pipelines.Pipeline Metal Detector is suitable for products such as jam, ketchup, mayonnaise, sauces, fruit puree, soup, dressing, honey, and other pumped food products. Similar pipeline systems are specifically designed to handle sauces, jams and other viscous products while maintaining hygienic production.
Its pipeline design helps manufacturers perform inspection before filling and packaging, without transferring liquid products onto a conveyor. This makes it particularly suitable for high-viscosity and continuously pumped food-processing applications.
| Type | SG-ML80 | SG-ML100 | SG-ML150 | SG-ML200 | |
| Pipe inner diameter | 80 | 100 | 150 | 200 | |
| Detection sensitivity | Fe（φ） | 0.6 | 0.8 | 1.0 | 1.0 |
| SUS304（φ） | 1.2 | 1.5 | 1.5 | 2.0 | |
| Pipe flow t/h | 2 | 4 | 8 | 15 | |
| Deadweight of Machine | 120kg | 140kg | 160kg | 180kg | |
| Product default quantity | 100 Type | ||||
| Detected product form | Sauces, fruit purees, chocolate syrups, dairy products, beverages, viscous fluids, etc. | ||||
| Air source requirement | ≥0.5MPa | ||||
| Alarm Way | When metal is detected, it will be alarmed and automatically rejected | ||||
| Pipe material | PP | ||||
1.High-Sensitivity Metal Detection – Detects ferrous, non-ferrous and stainless-steel contaminants.
2.Inline Pipeline Inspection – Integrates directly into existing liquid or sauce pipelines.

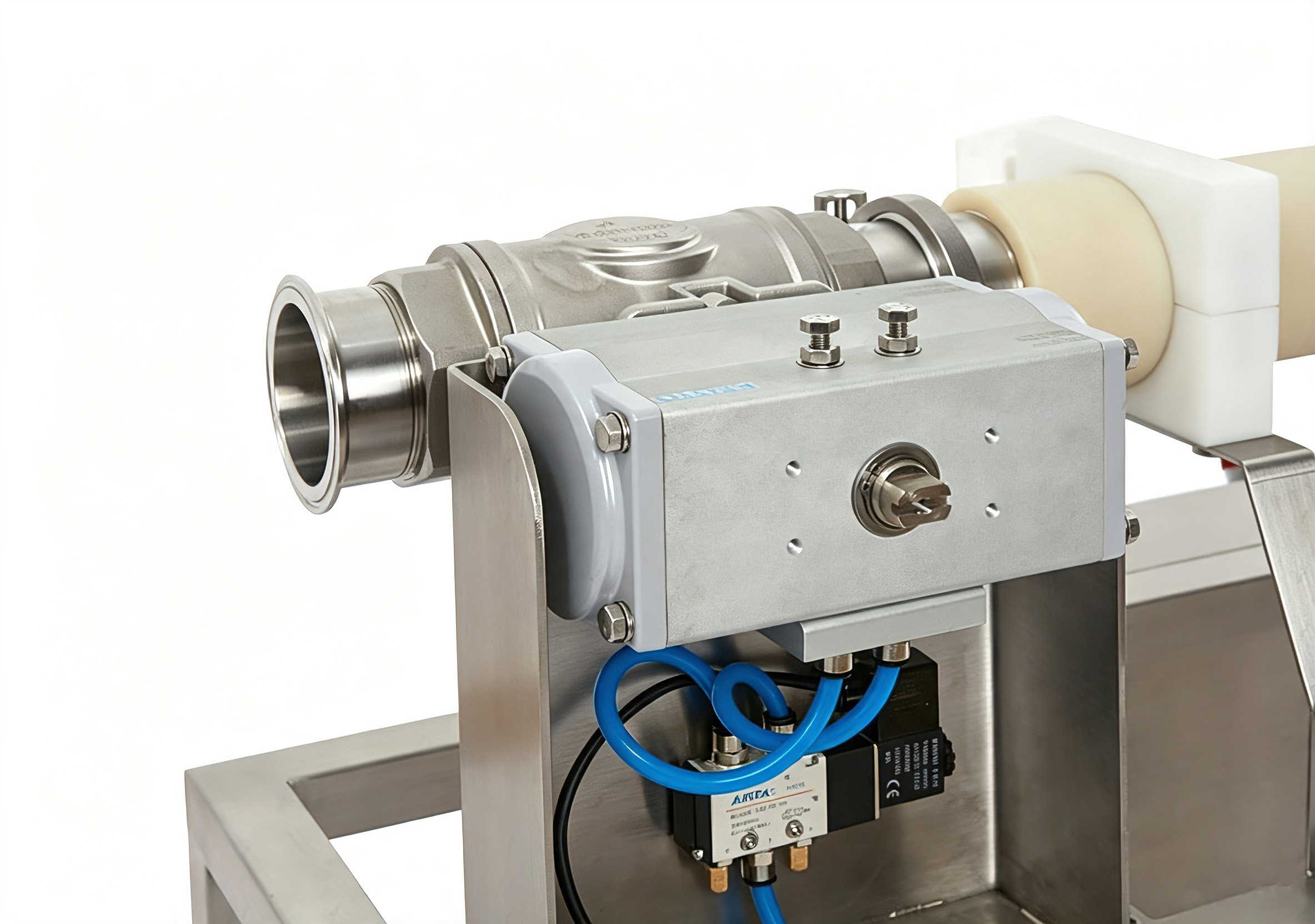

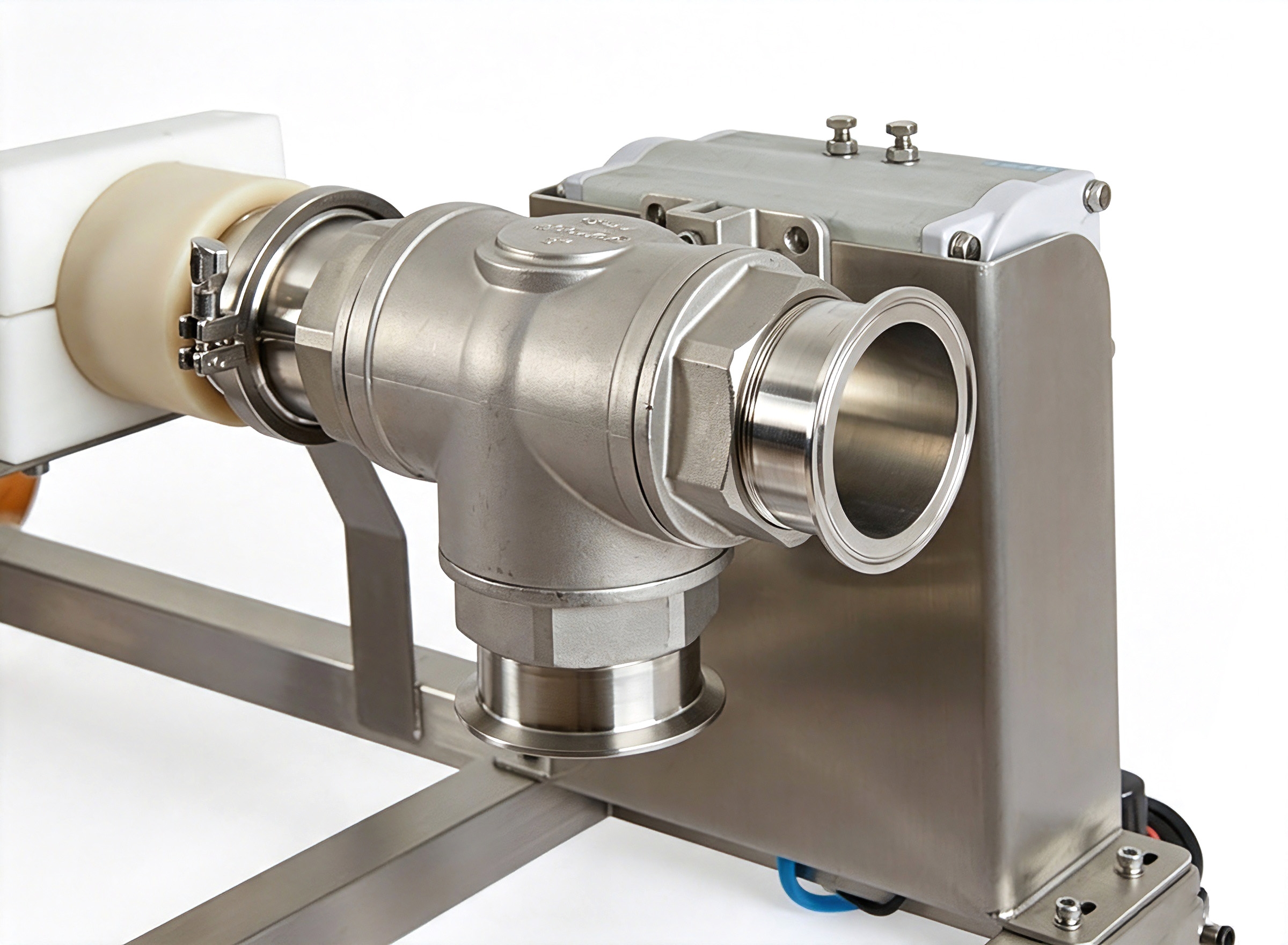

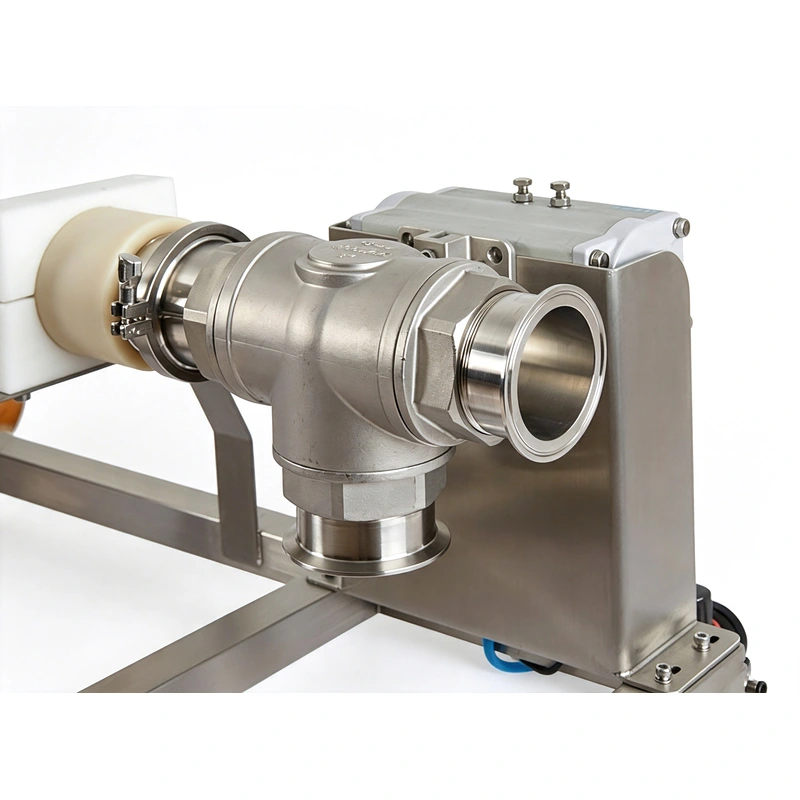

3.Automatic Reject System – Automatically diverts contaminated product when metal is detected.
4.Designed for Viscous Products – Suitable for jam, ketchup, sauces, fruit puree, mayonnaise and pastes.
5.Hygienic Stainless-Steel Construction – Suitable for demanding food-processing environments.
6.Continuous Online Inspection – Provides real-time inspection without interrupting product flow.
7.Product Effect Compensation – Helps maintain detection stability with high-moisture, salty or conductive products.
8.Customized Pipe Diameter – Pipeline connections and detection aperture can be configured according to production requirements.
9.Easy Production-Line Integration – Can be installed between pumps, processing equipment and filling machines.
It applies to the food industry, chemical industry, pharmaceutical industry, liquid and paste materials, pump pump delivery or fill in the application of jam, chocolate, soup or sauce and other liquid substances of metal foreign matter detection.
