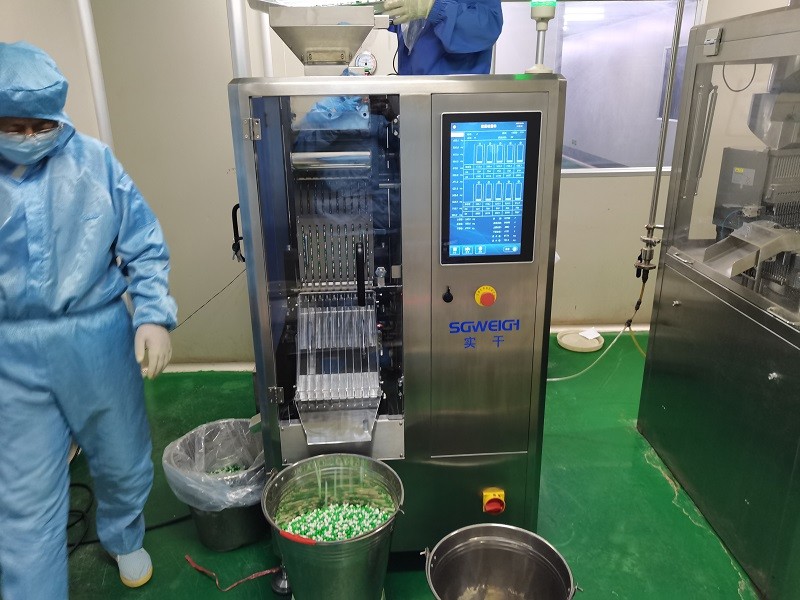

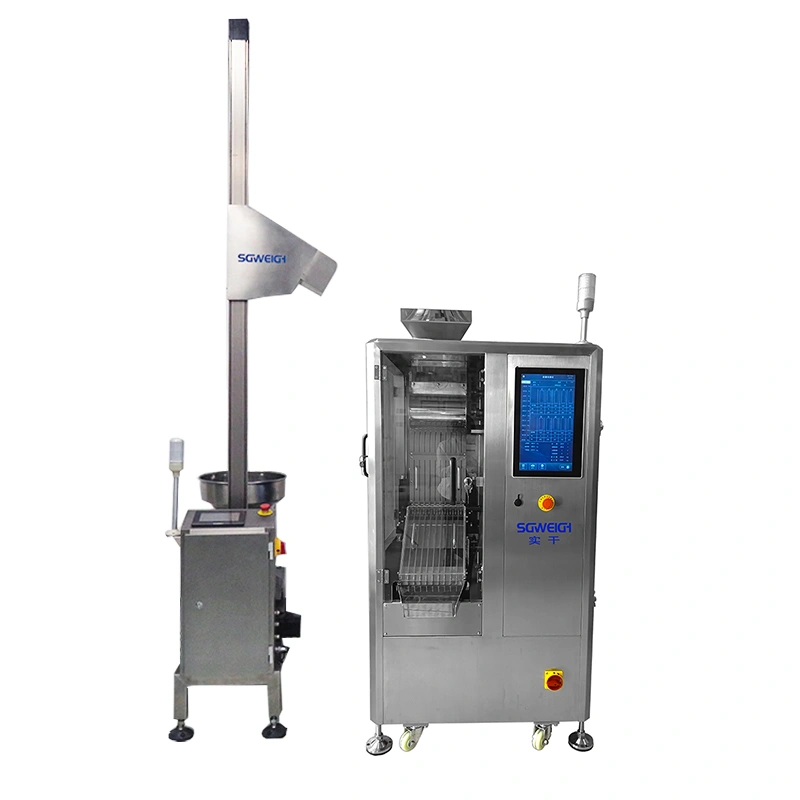

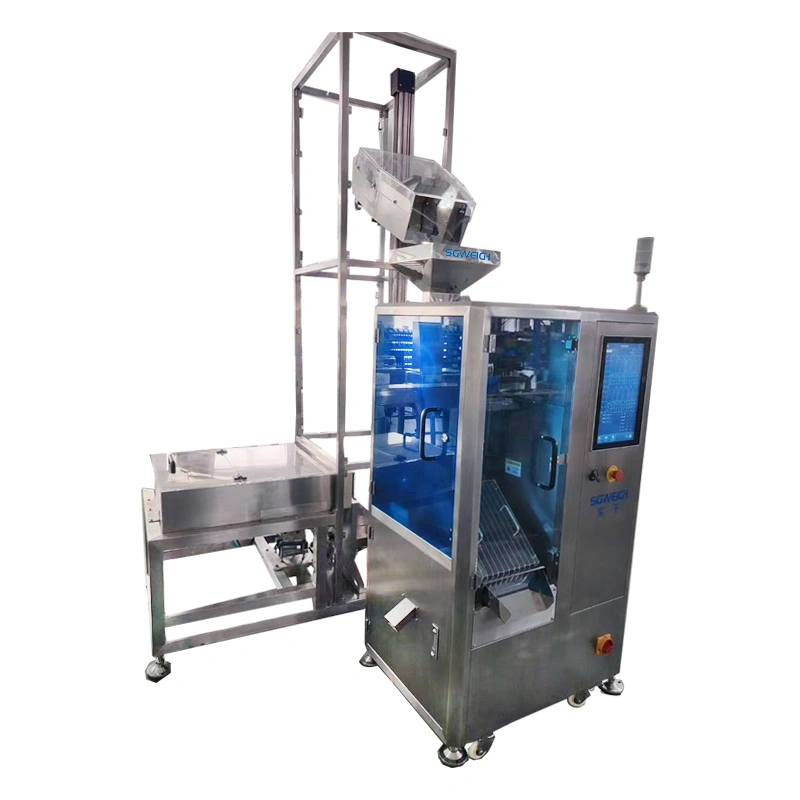

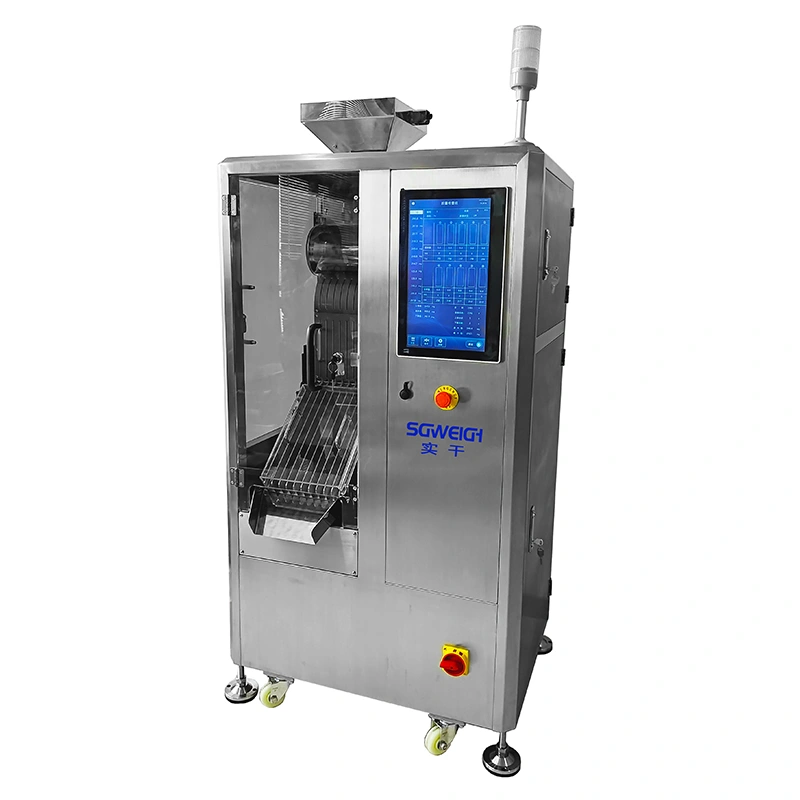

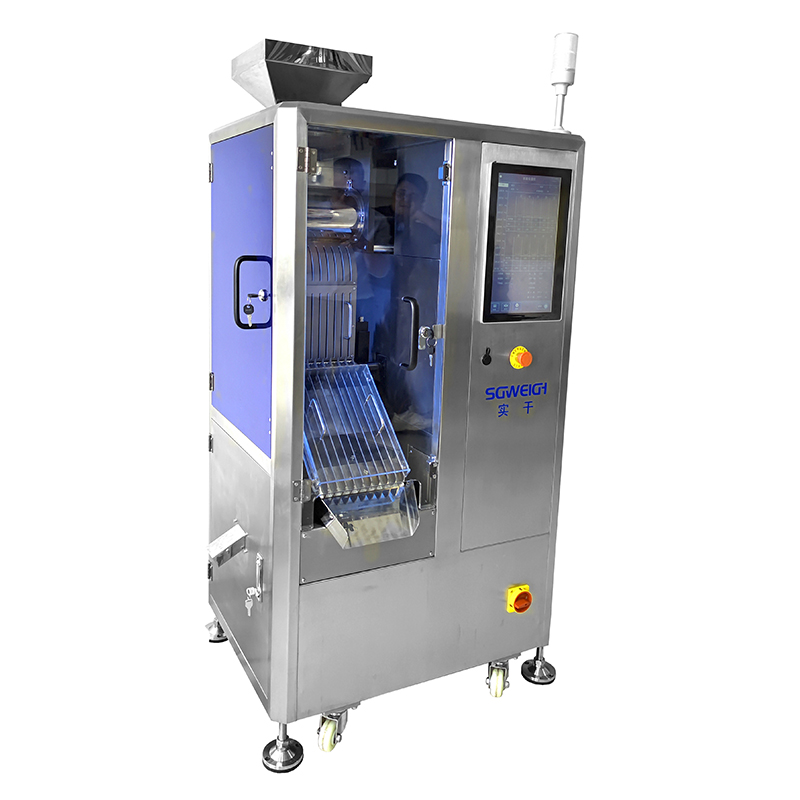

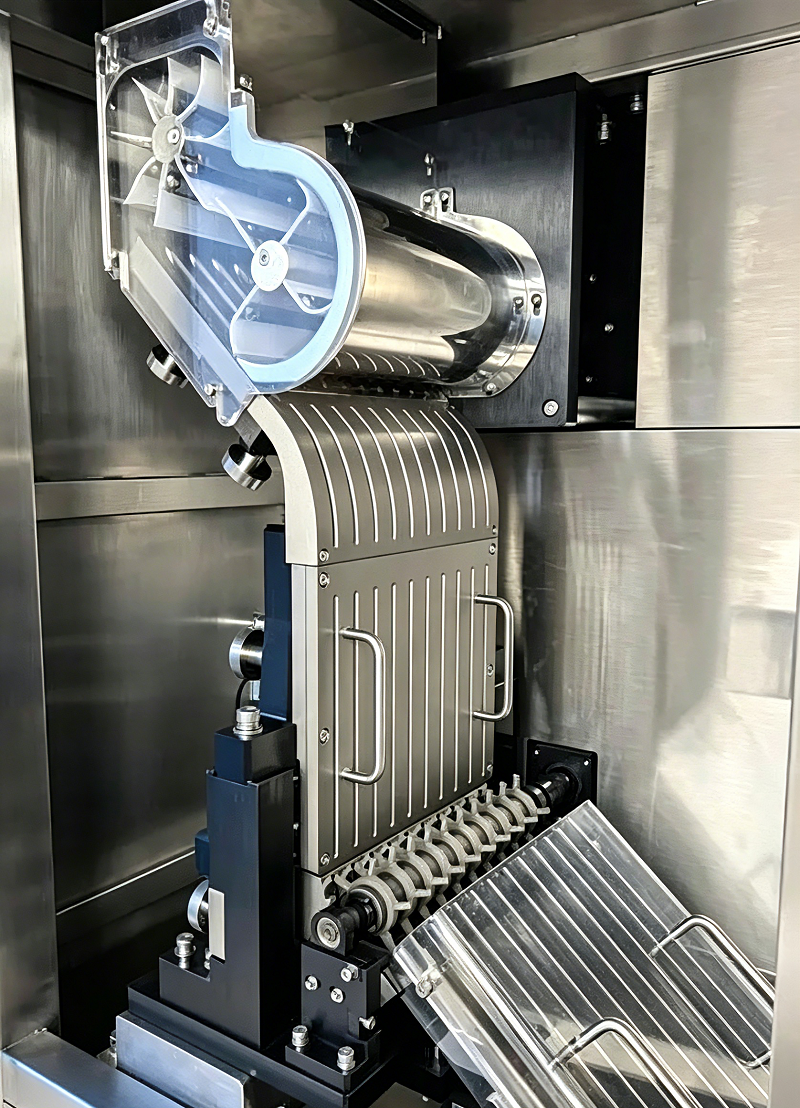

A Capsule Pharmaceutical Checkweigher Machine is a high-precision automatic weighing system designed to inspect the weight of every filled capsule in pharmaceutical and nutraceutical production lines. By utilizing advanced dynamic weighing technology and high-resolution load cells, the machine performs 100% in-line capsule weight inspection, automatically rejecting underweight, overweight, empty, or partially filled capsules while maintaining continuous high-speed production.
| Model Type | SG-CT10 | SG-CT20 | SG-CT30 |
|---|---|---|---|
| Weighing scope | 5-2000mg | ||
| Display scale | 0.1mg | ||
| Highest sorting accuracy | ±0.5mg | ||
| Product specification | Capsule: 00#-5#; Wafer: Φ5.5-Φ18mm, Thickness 3-12mm;Pill: Φ5.5-Φ12mm, Other sizes or shapes subject to testing | ||
| Highest sorting ability | 75,000 PCS/HR | 150,000 PCS/HR | 230,000 PCS/HR |
| Number of columns | 10 Columns | 20 Columns | 30 Columns |
| Power supply | AC-220V±10%, 50Hz | ||
| Compressed air | 0.3-0.9Mpa | ||
| Use environment | 15 ~ 30℃ (Temperature change during use shall not exceed 1℃/h)Humidity 30~70%RH (no condensation) | ||
| Weight of Machine | 350kg | 500kg | 700kg |
| Shell material | SUS304 Stainless Steel | ||
1.High-precision weighing with accuracy up to ±0.5 mg (model dependent).
2.100% inspection of every capsule for complete quality assurance.
3.Automatically detects underweight, overweight, empty, broken, and partially filled capsules.

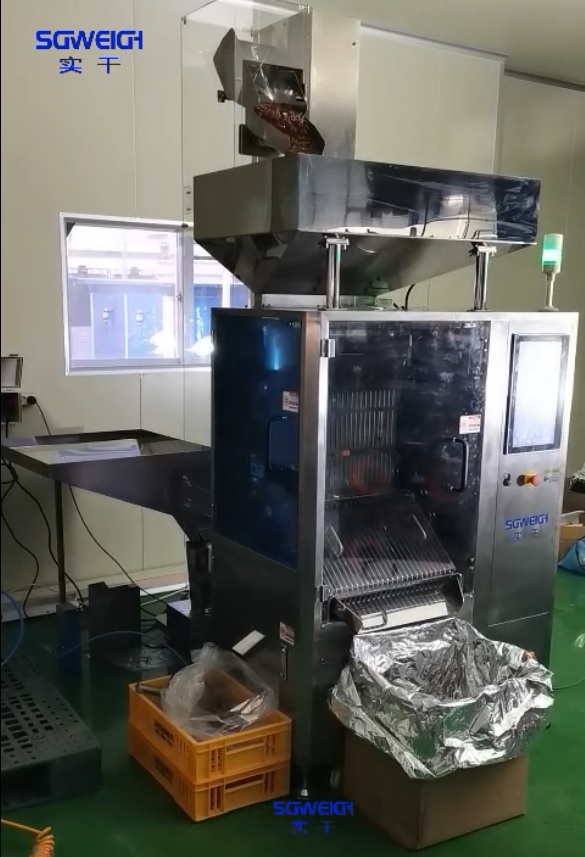

4.Intelligent automatic rejection system removes defective products without interrupting production.
5.High-speed inspection suitable for continuous pharmaceutical manufacturing.
6.Multi-lane configurations available to maximize production capacity.
7.Compatible with capsule sizes 000–5 and various formulations.
8.Stable weighing performance with anti-vibration and anti-static design.
9.Large touchscreen HMI with recipe management and production statistics.
10.Data recording, audit trail, and optional FDA 21 CFR Part 11 compliance.
11.Easy-to-clean stainless steel construction designed for GMP environments.
12.an be integrated with capsule fillers, metal detectors, polishing machines, and packaging systems.
13.Supports Ethernet, PLC, and factory automation communication interfaces.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
