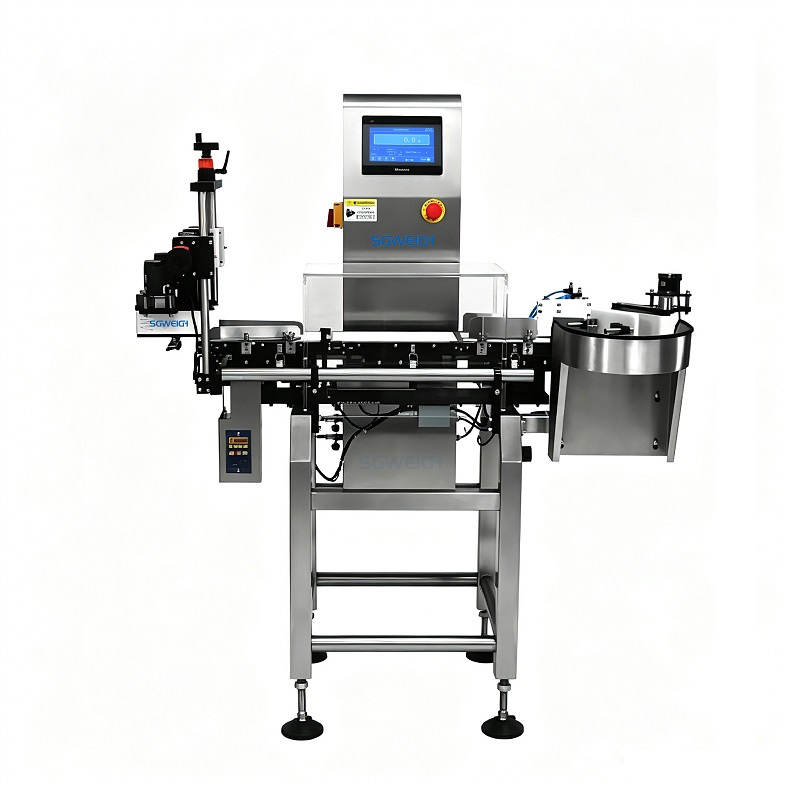

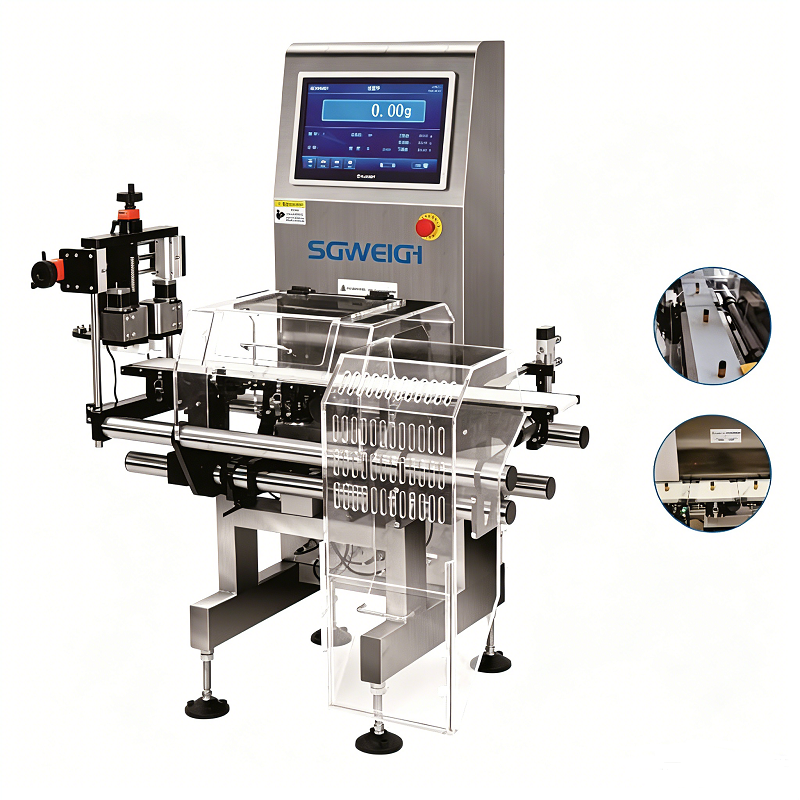

The Small Medicine Bottle Checkweigher is an automatic dynamic weighing system designed for small pharmaceutical bottles, including tablet bottles, capsule bottles, liquid medicine bottles, and other compact medical containers. It performs in-line weight inspection without interrupting the production process, helping pharmaceutical manufacturers verify product weight consistency and improve quality control.
The system automatically weighs each bottle as it moves along the conveyor and compares the measured weight with a preset target weight and allowable tolerance. Bottles outside the configured weight range can be automatically rejected, helping identify potential filling errors, missing tablets or capsules, and other weight-related production issues.
Designed for integration into pharmaceutical packaging lines, this Bottle Checkweigher can connect with counting, filling, capping, sealing, and labeling equipment. Its compact structure makes it suitable for production environments where space efficiency, stable conveying, and reliable weight inspection are important.
Depending on the bottle dimensions, product characteristics, line speed, and required weighing accuracy, the system can be customized to meet different pharmaceutical packaging requirements.
Type:SG-100HH
Weighing scope:2-300g
Restriction of product:L:100 W:100 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:800 pcs/min
Belt width:100mm
Belt Speed:0-120m/min
Weight of machine:about 120kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
1.Automatic Dynamic Weighing: Weighs each medicine bottle during continuous conveyor operation.
2.Target Weight Comparison: Compares actual bottle weight with preset target values and tolerance limits.

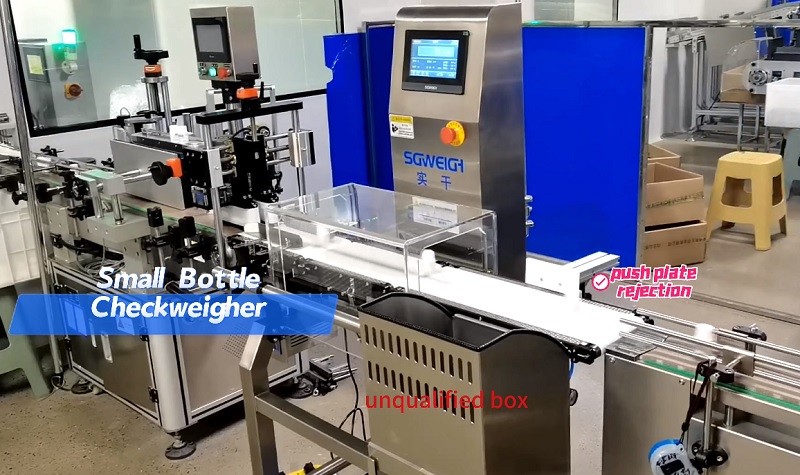

3.Automatic Reject System: Separates bottles that fall outside the configured weight range.
4.Missing Product Detection: Helps identify potential missing tablets or capsules when the weight difference is detectable.
5.Production Data Statistics: Records inspection quantities, pass/fail counts, and weight-related data, depending on the system configuration.
6.Production Line Integration: Can be integrated with pharmaceutical counting, filling, capping, and labeling machines.
7.Compact Conveyor Design: Suitable for small bottles and space-limited packaging lines.
8.Recipe and Parameter Settings: Supports product-specific inspection settings, depending on the control system.
1. Suitable for the detection of small bottled drugs to detect whether there is a lack of medicine particles or instructions in the bottle.

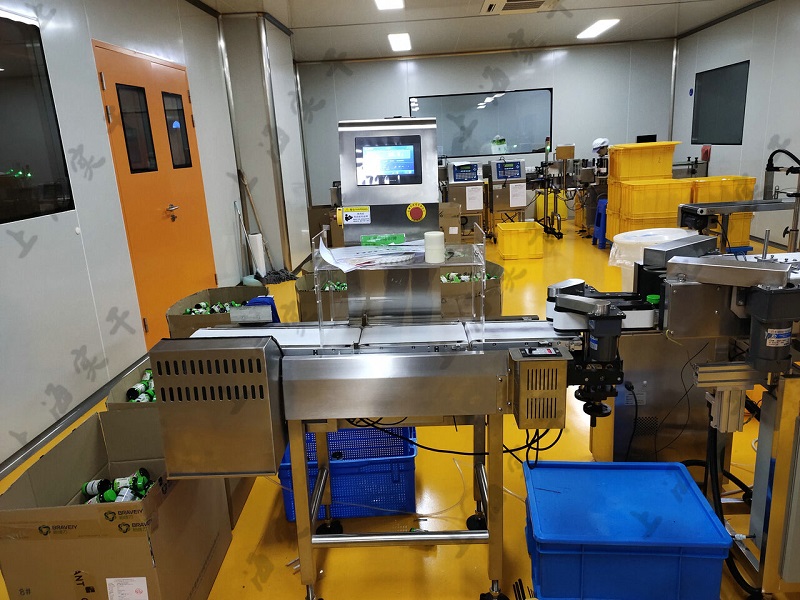

2. Suitable for use on the back-end assembly line of the filling machine.
3. Suitable for bottled products of other shapes, such as bottled eye drops, glue, etc.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
