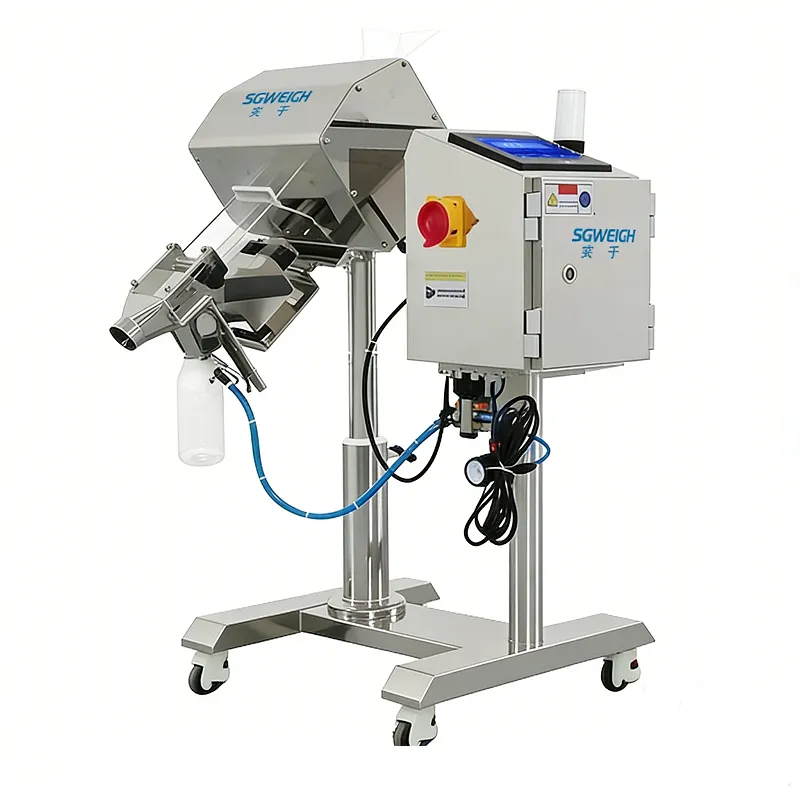

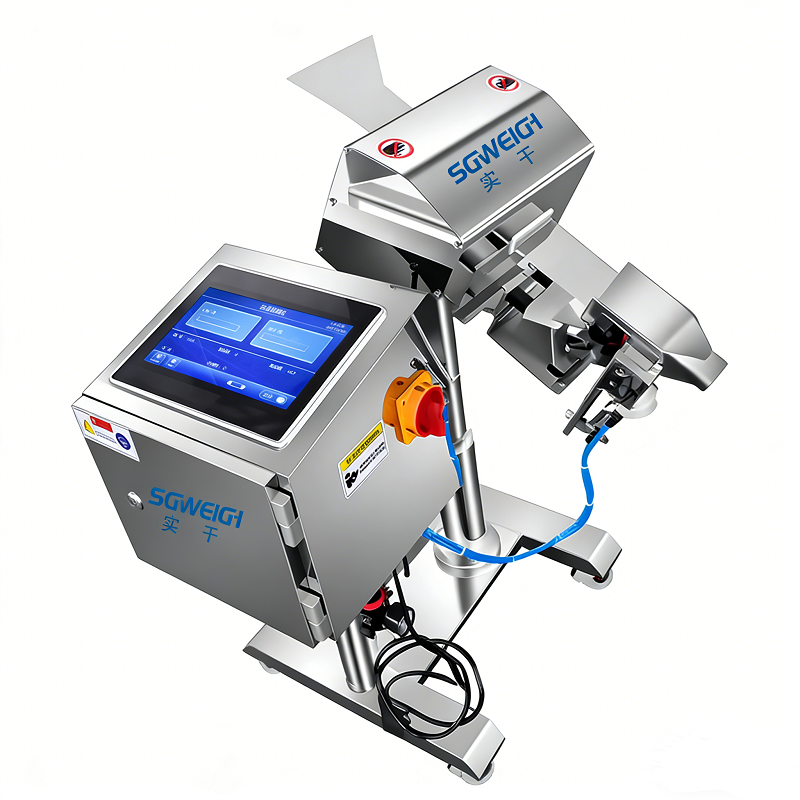

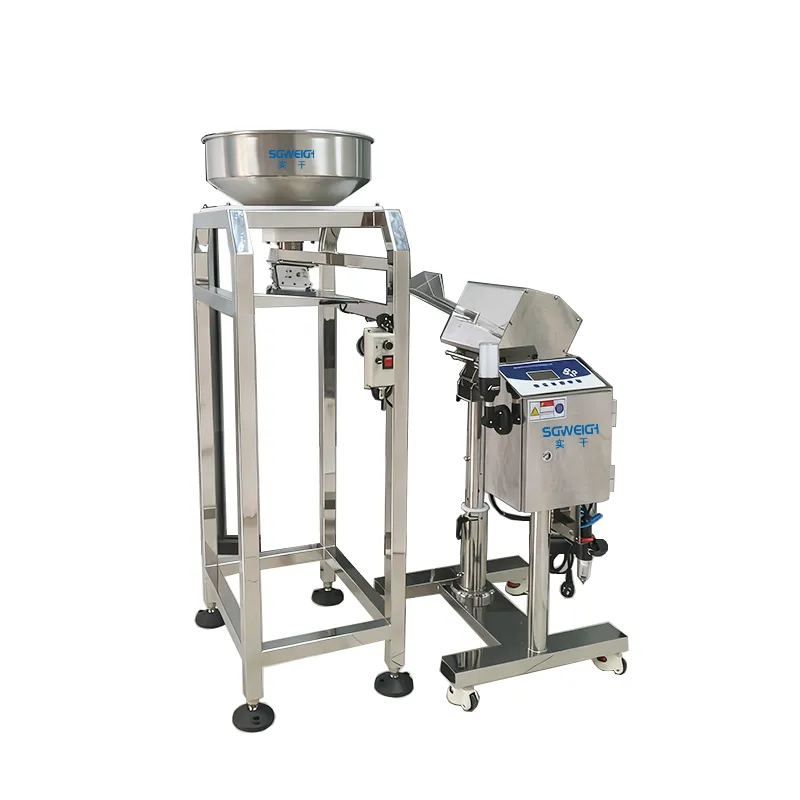

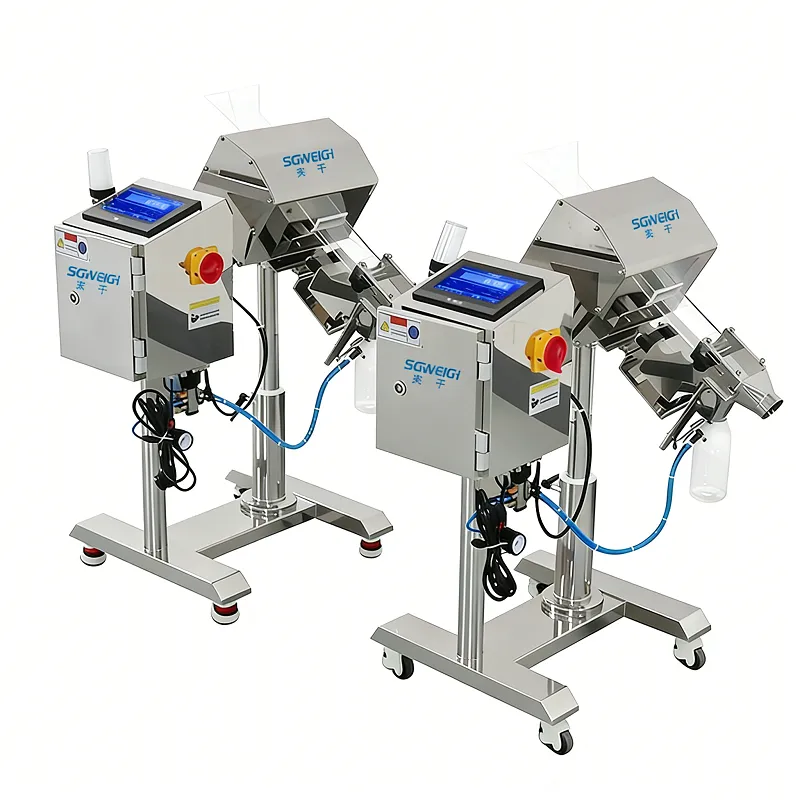

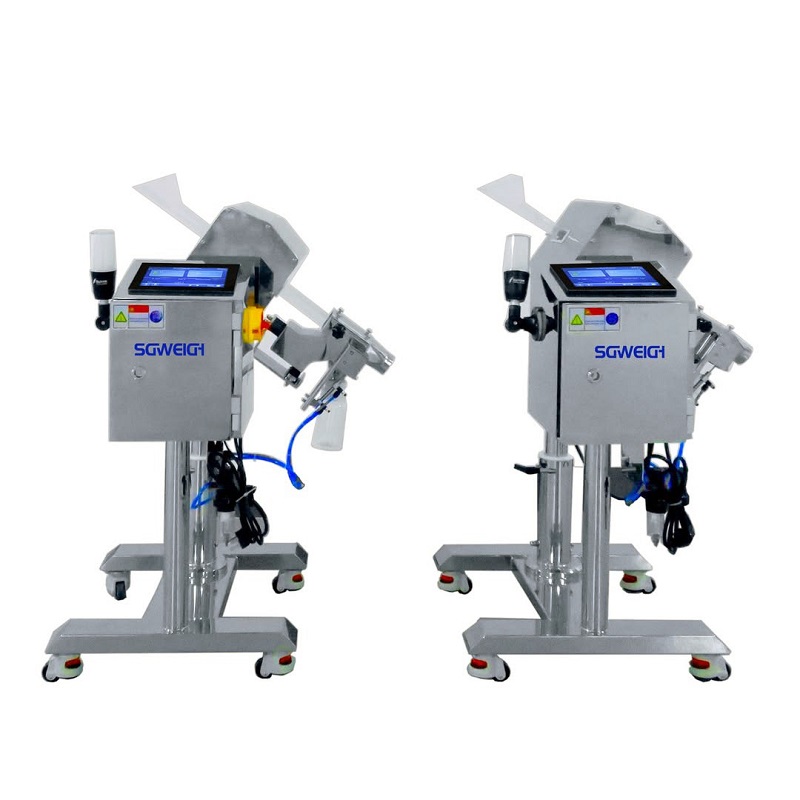

Tablets Capsule Metal Detector for Pharma is suitable for detecting and removing magnetic and non-magnetic metal foreign bodies in tablets and capsules.Small metal chips embedded in the product can also be removed quickly online.During operation, the metal detector can detect perfectly (100%), thus reducing material loss and not affecting normal roduction.Welcome to consult for quotation information !
| Type | SG-M50 |

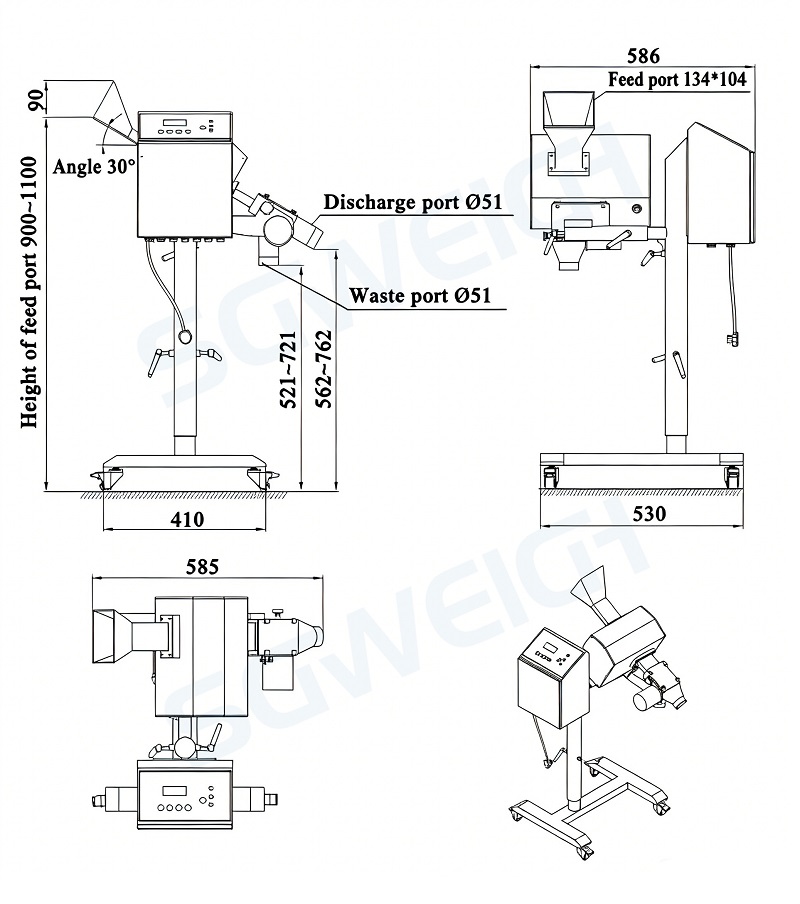

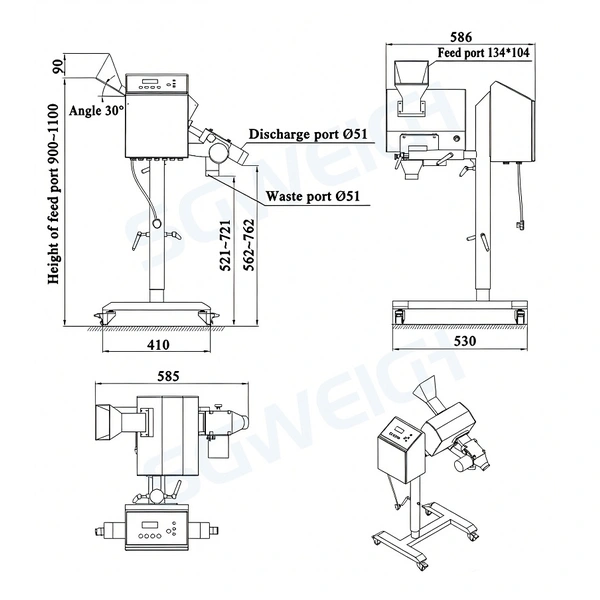

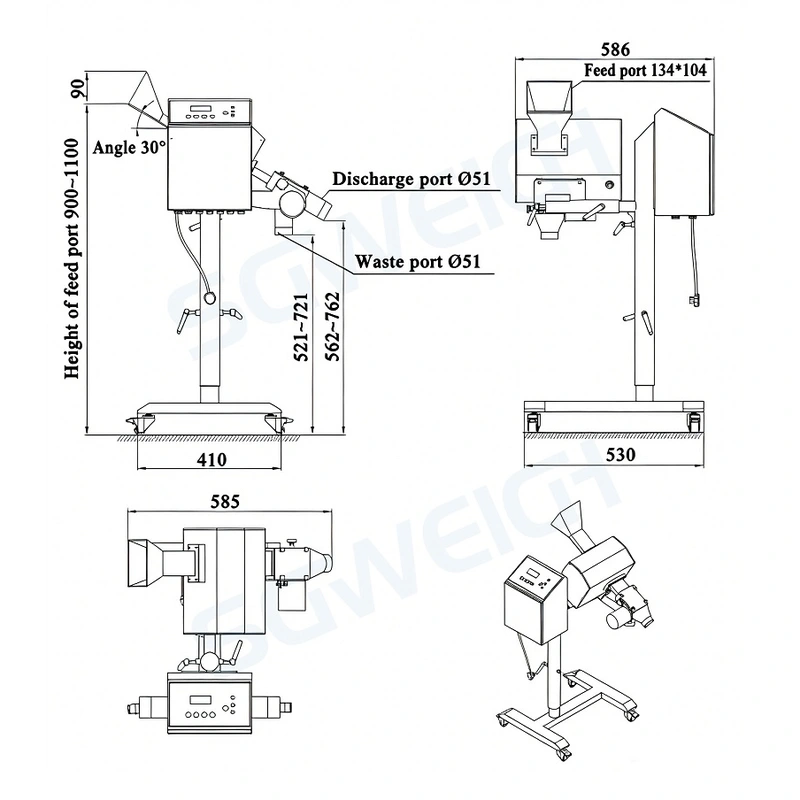

| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.4mm |

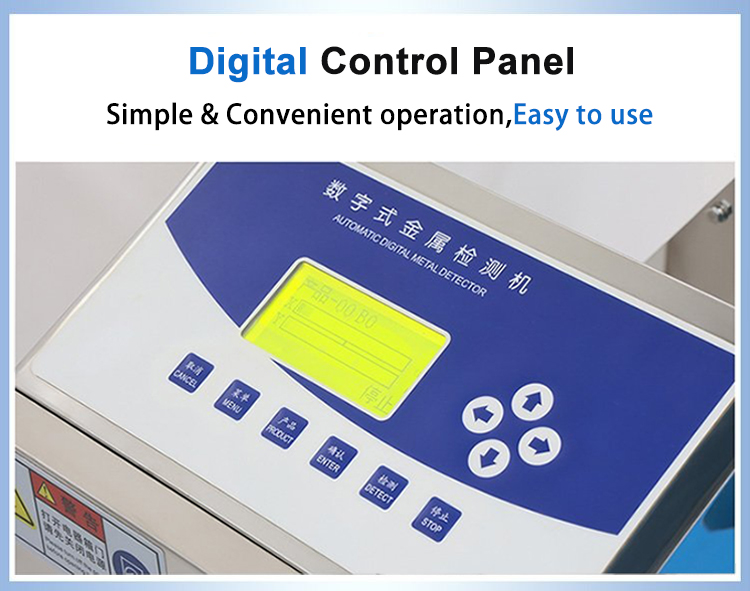

| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
1.Suitable for detecting and separating magnetic and non-magnetic metals in tablets and capsules.

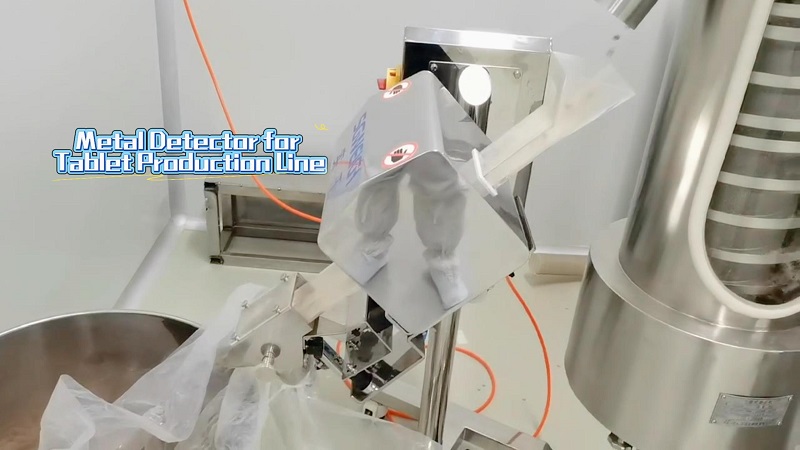

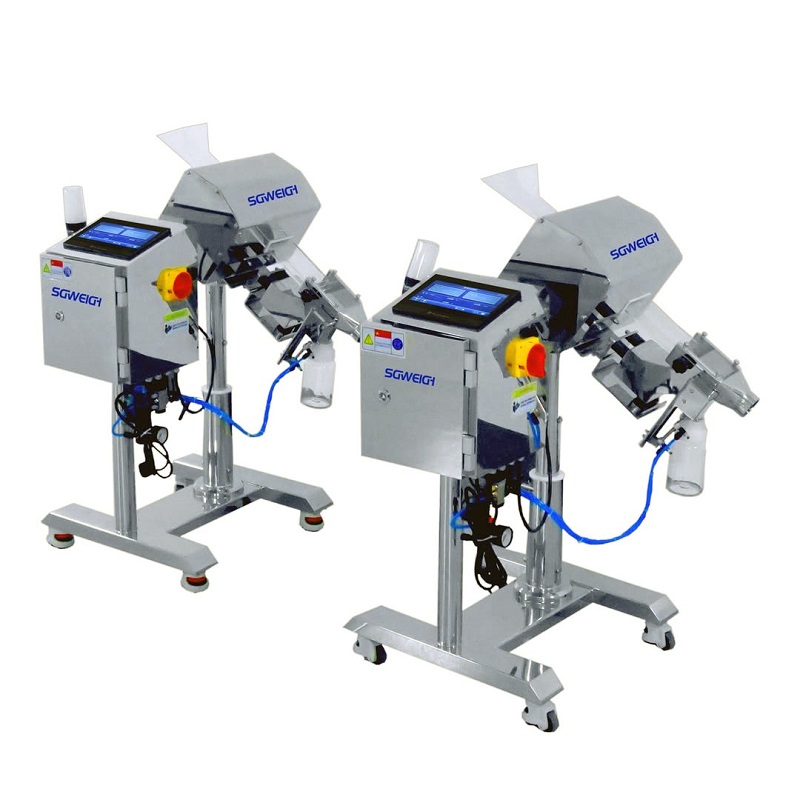

2.It can be used with tablet press machine, capsule filling machine and tablet sieving machine, or used alone, easy to adapt to the site.

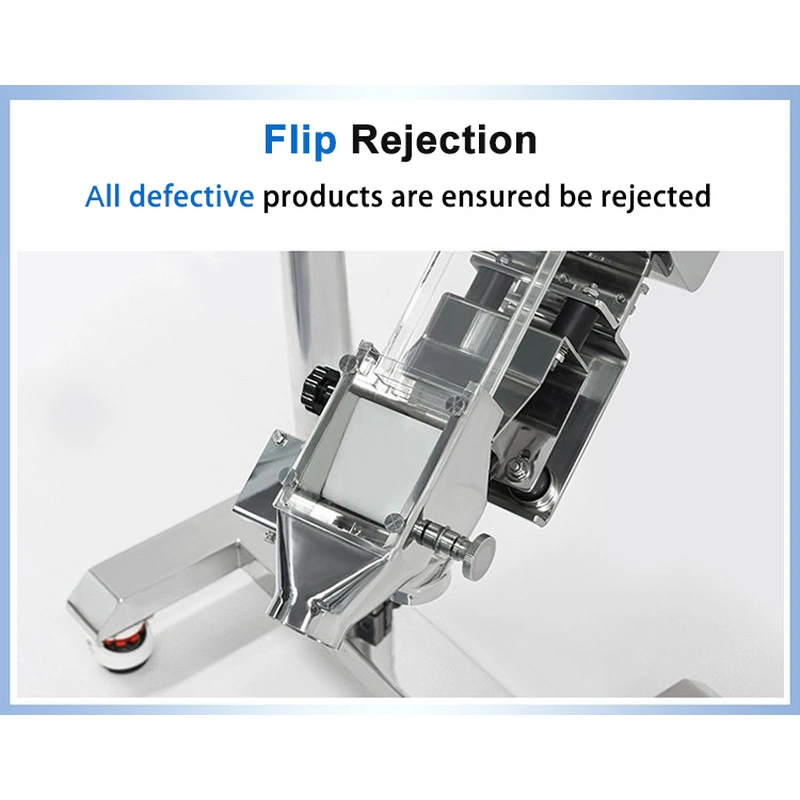

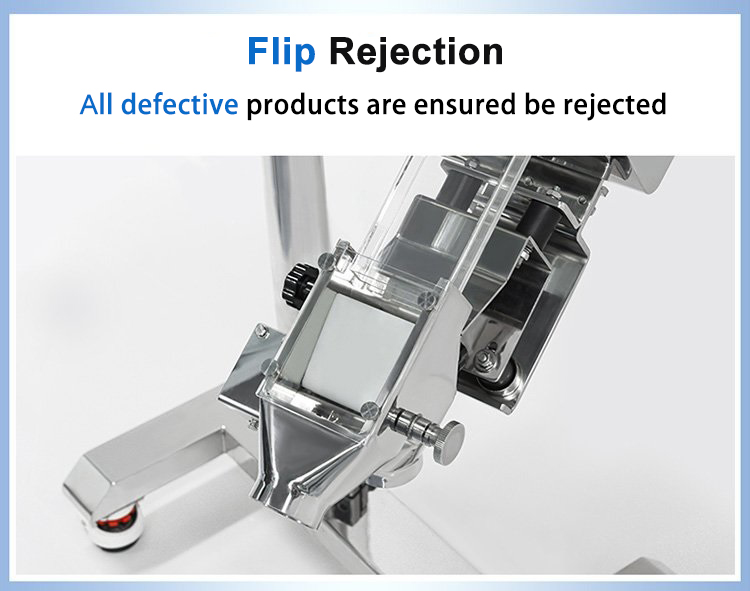

3.Elimination method: minimize material loss with electromagnet control flap fast automatic elimination to keep normal production.

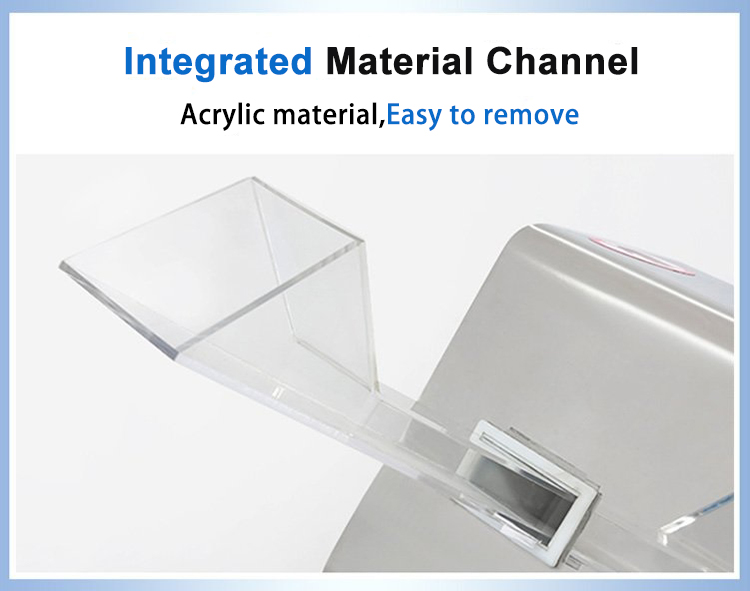

4.Simple design, easy to clean.
5.Can automatically recognize product characteristics and effectively eliminate product effects;
6.The height of the probe is adjustable, and it can be customized for higher height.
7.Fully FDA compliant, with in-built security and data control.
Detects all types of metals including ferrous, stainless steel, aluminum, copper and brass through examination of pills and capsules.Reliable detection of free or encapsulated contaminants in product flow.

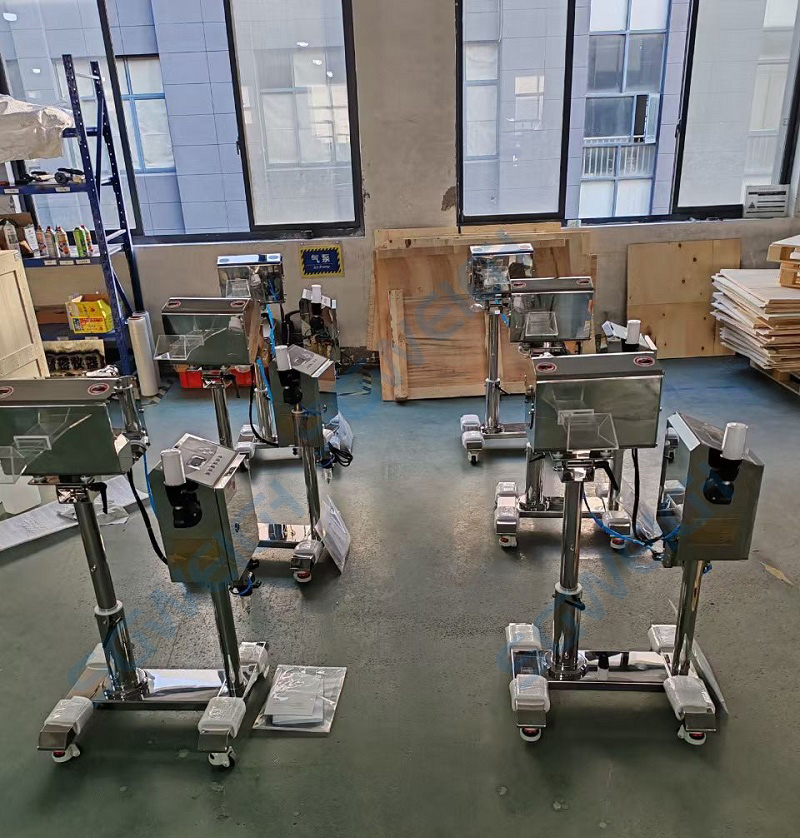

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
