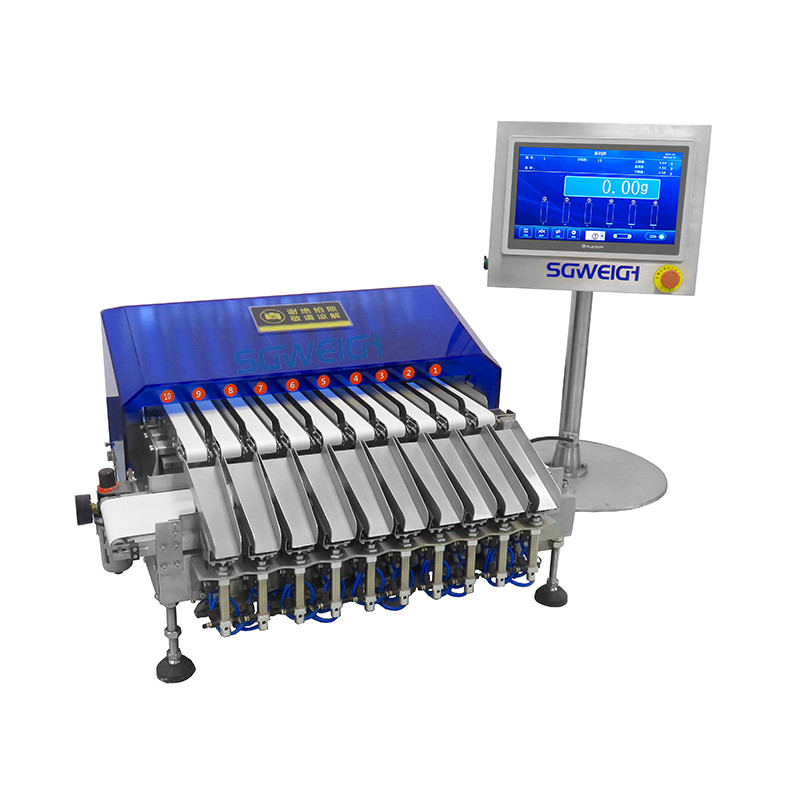

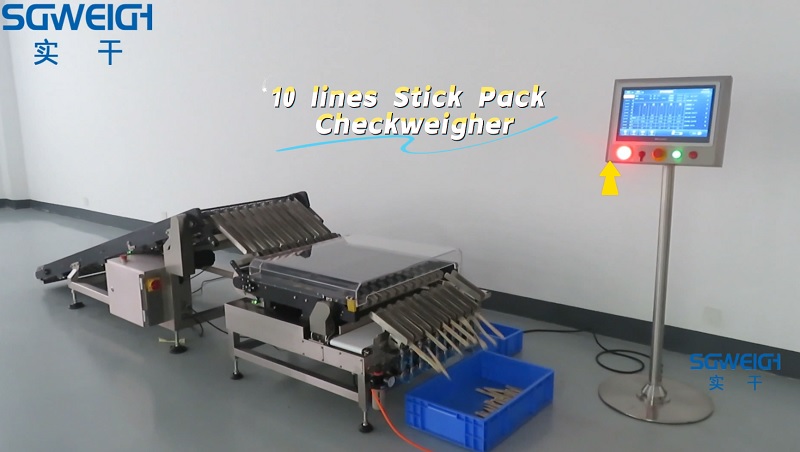

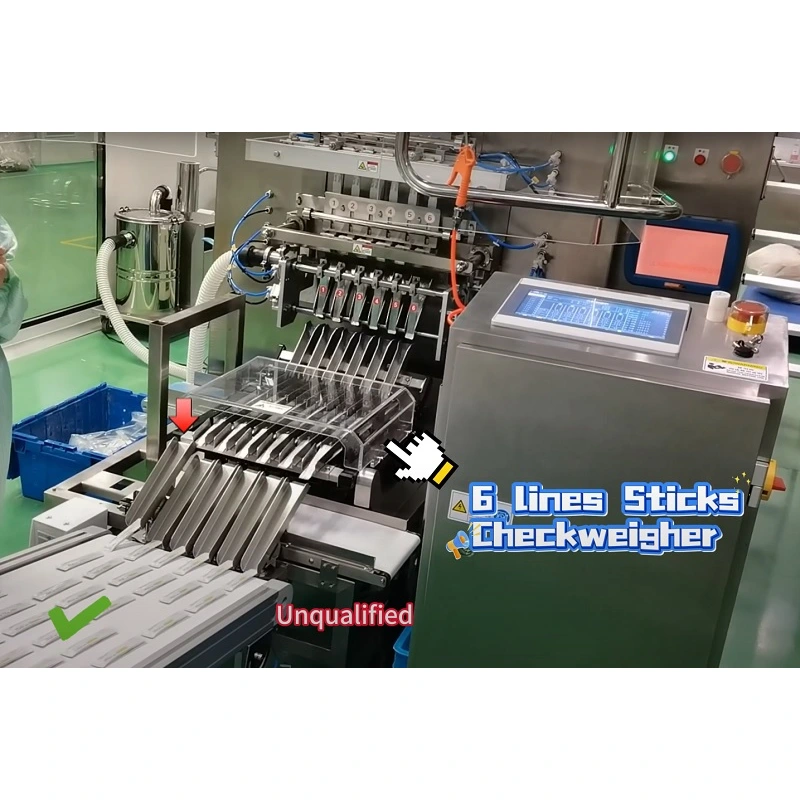

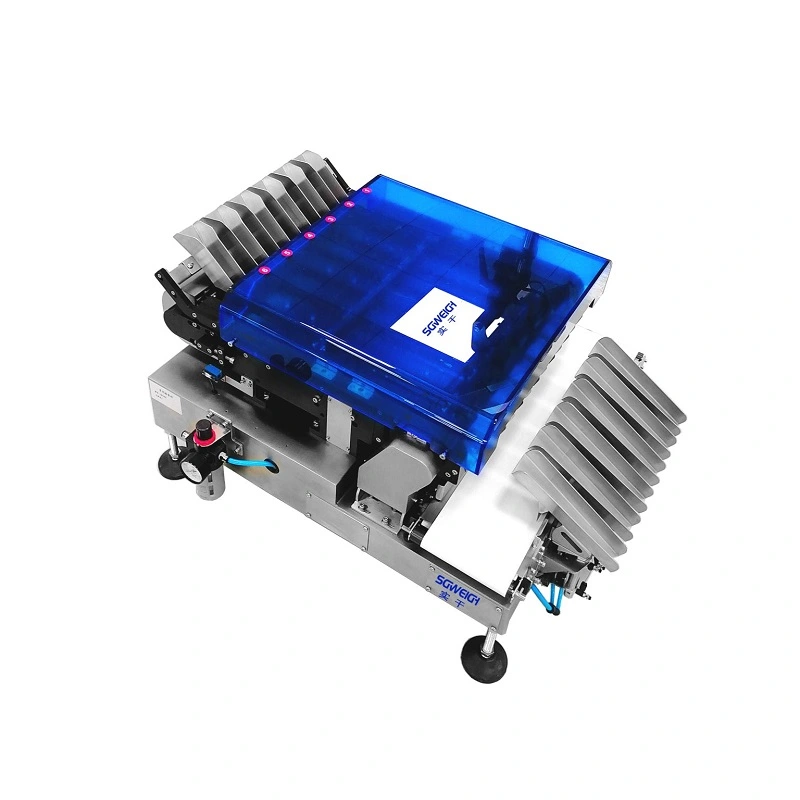

Individual Stick Pack 2-10 Lane Checkweigher is a high-precision and high-efficiency dynamic weighing equipment.It is mainly used for product weight detection on the production line and automatically rejects overweight and underweight packages. 2-10 lanes Weight Checker can be connected to a multi-row packaging machine to increase production.
Type:SG-10X
Weighing scope:2-300g

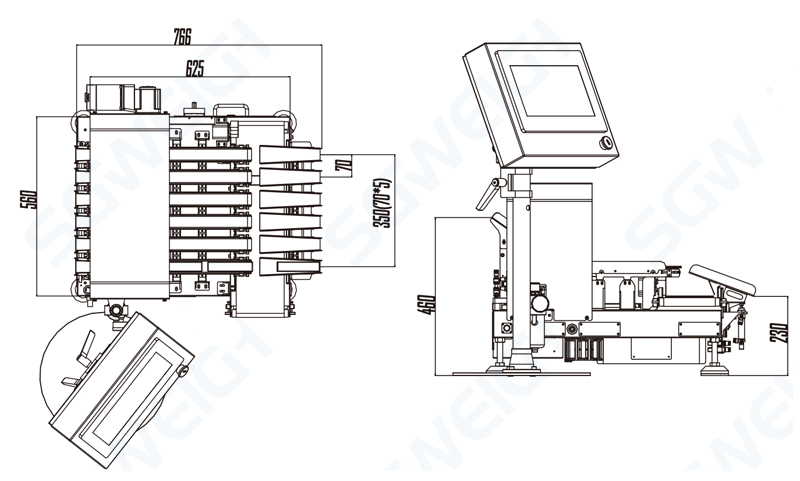

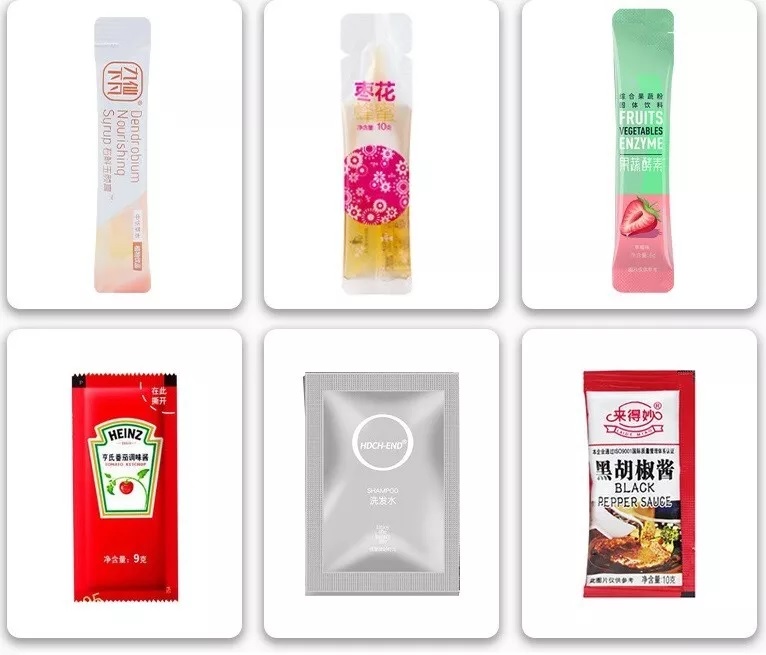

Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)

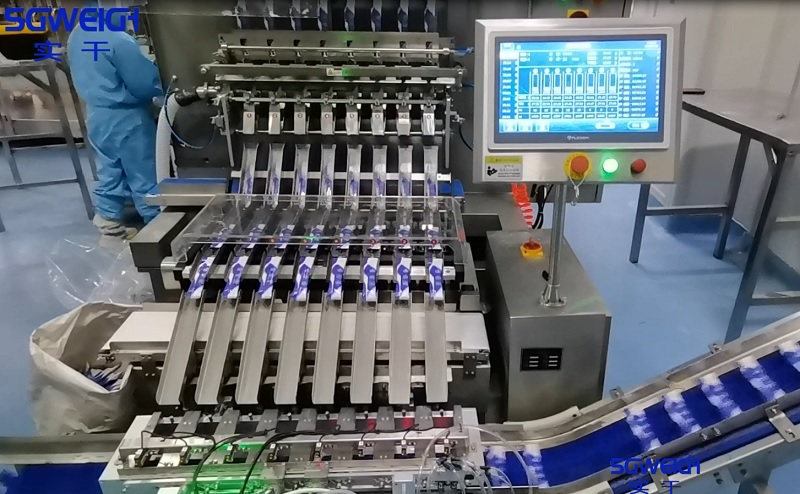

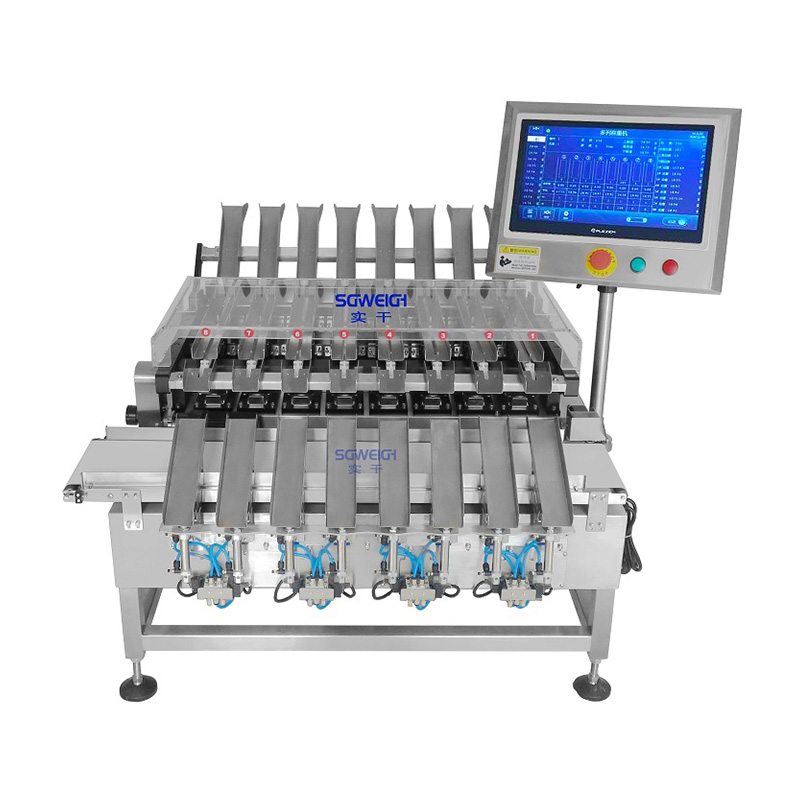

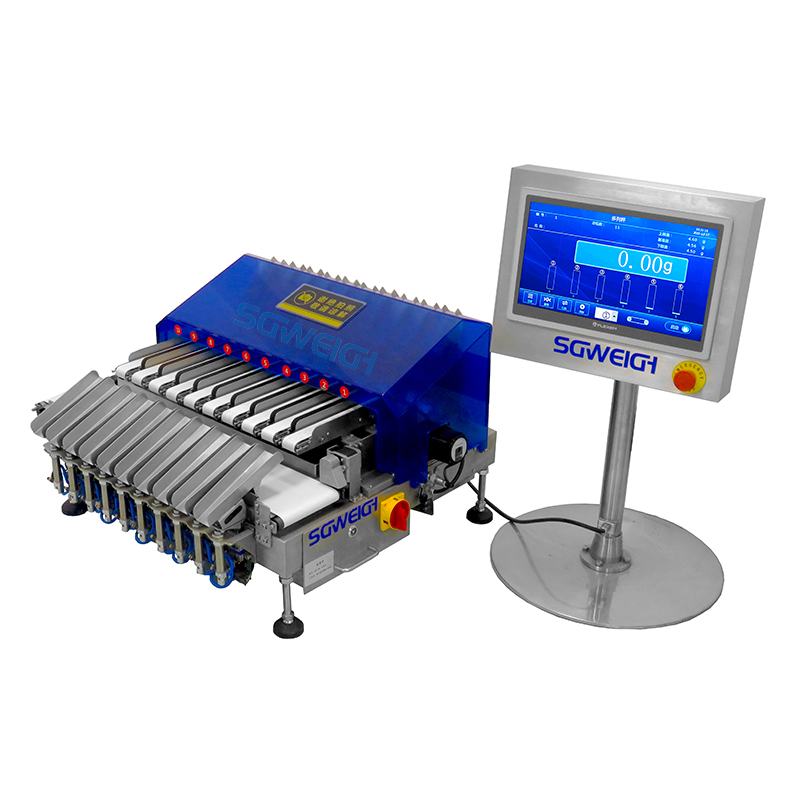

Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
1. Small footprint, independent channels, and trend control.

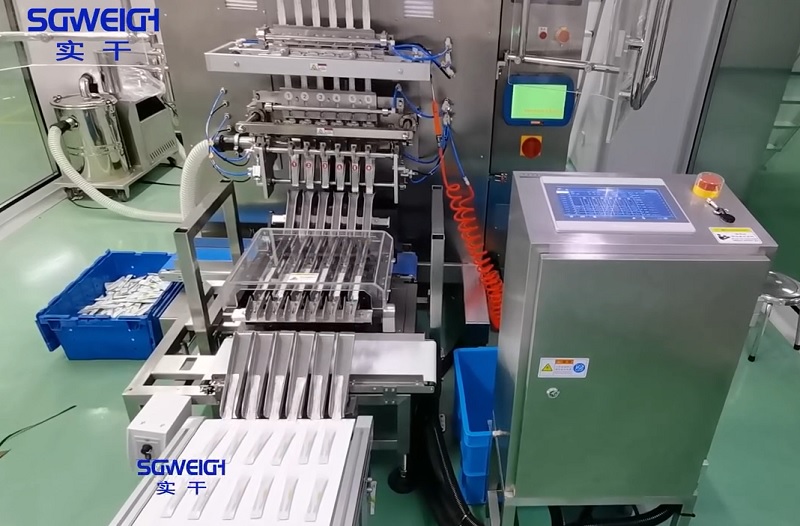

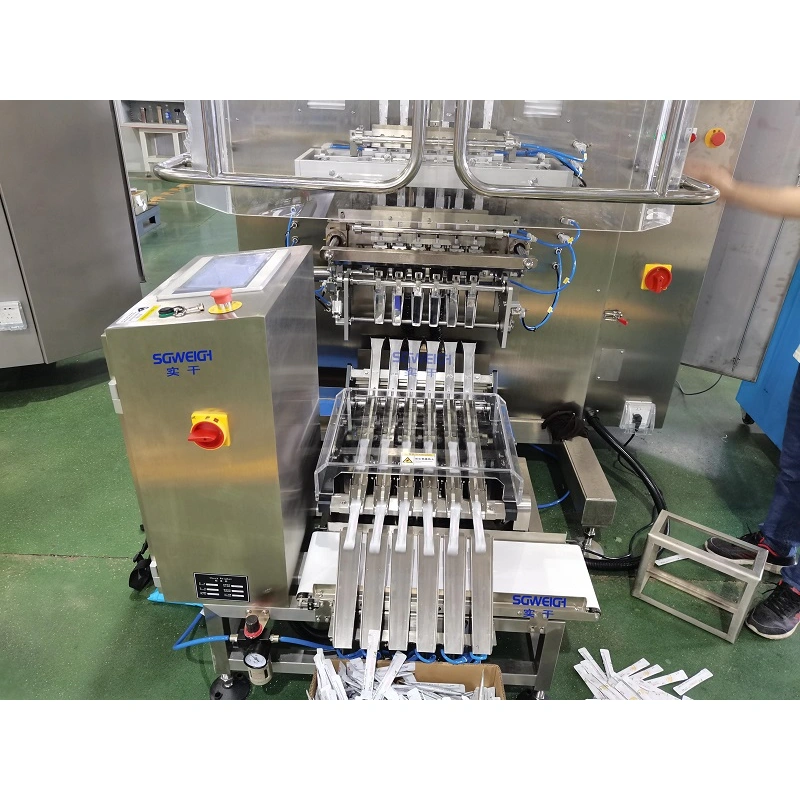

2. No additional spreading conveyor is required, as the checkweigher can receive packages at the same center spacing as the filling and packaging machine.

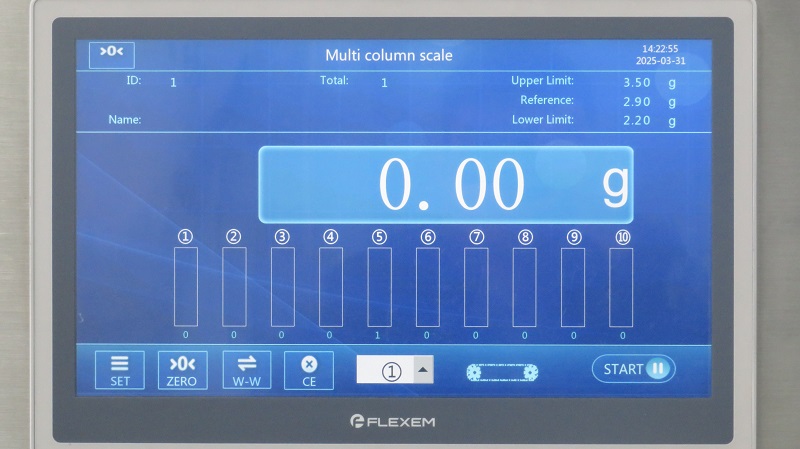

3. The checkweigher controller can be installed near the filling and packaging machine, facilitating adjustments to the filling process.
4. Data output supports common send/receive communication protocols.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
