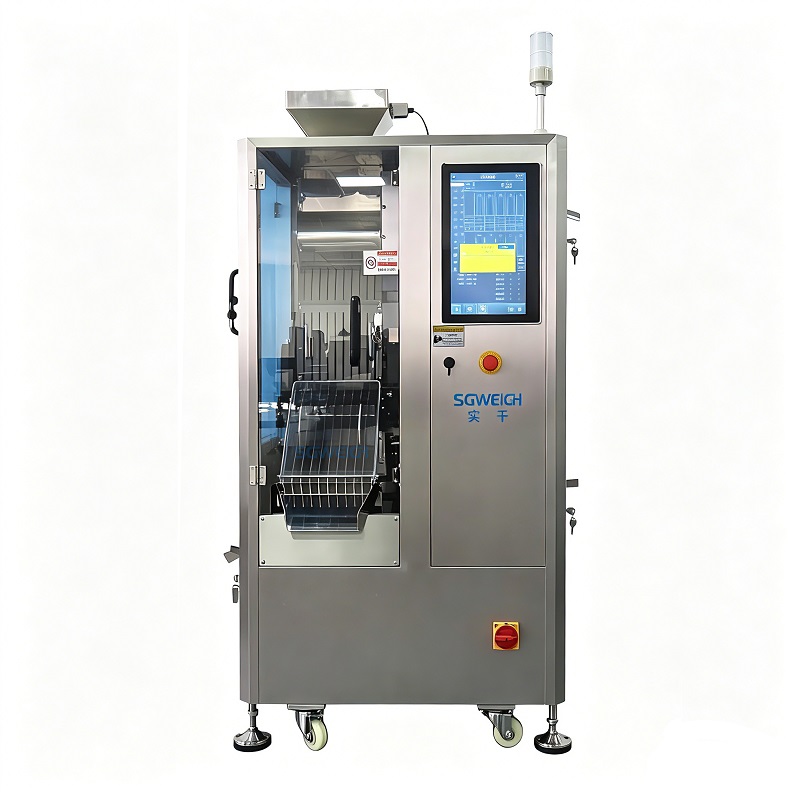

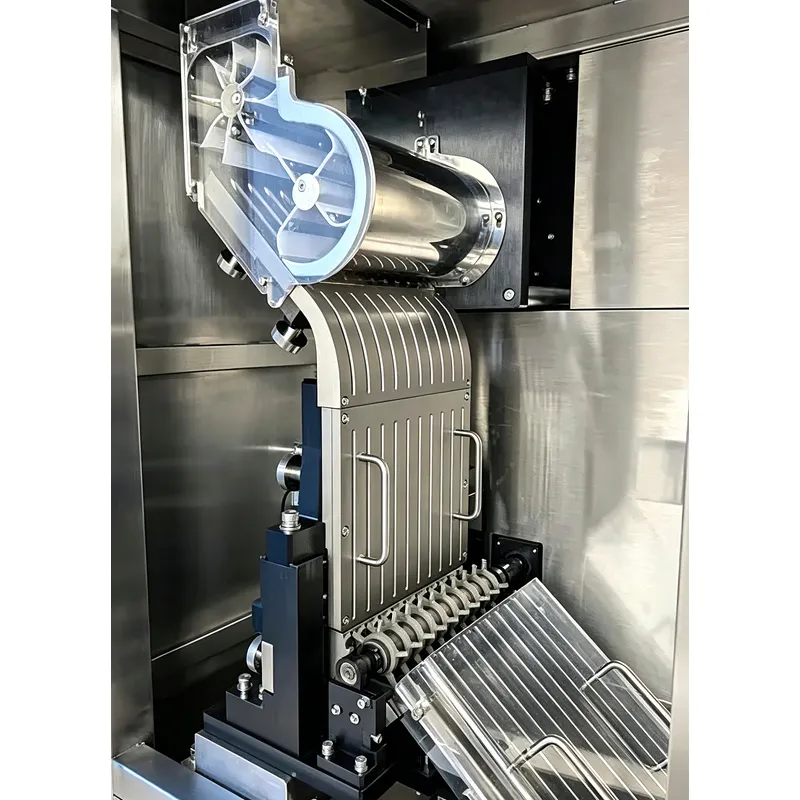

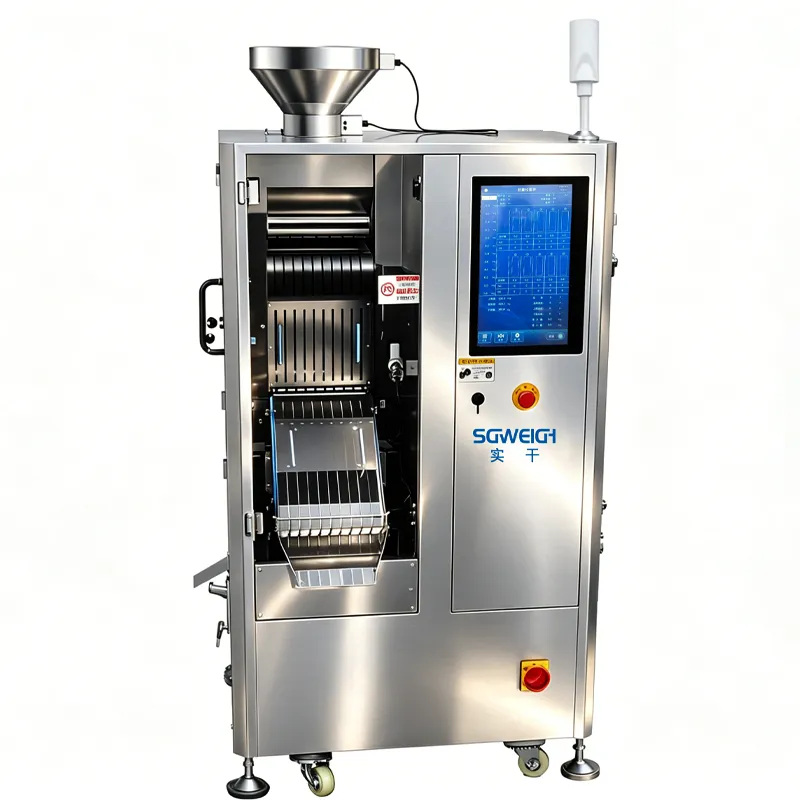

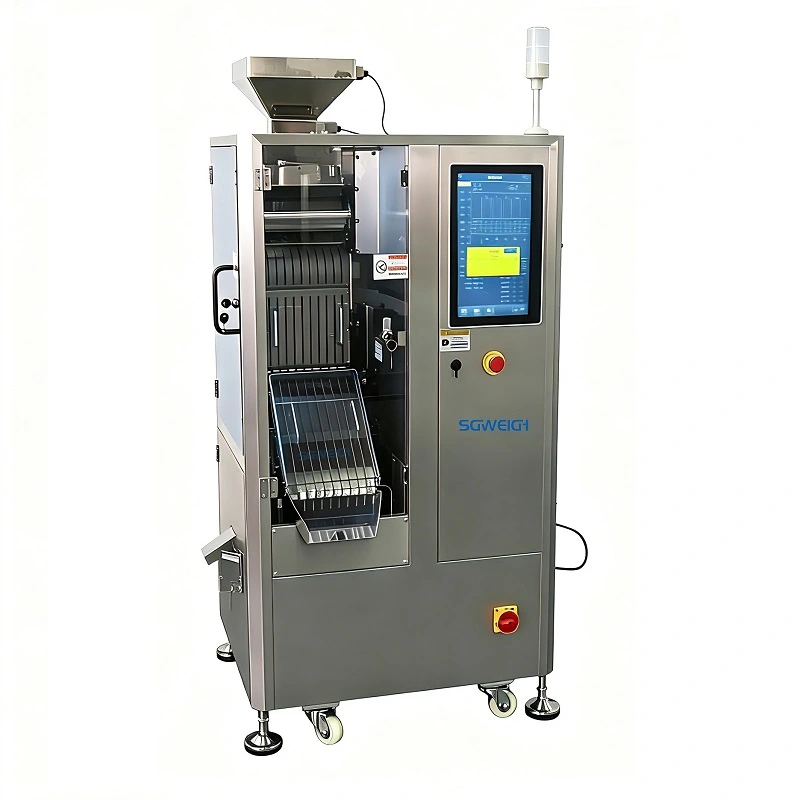

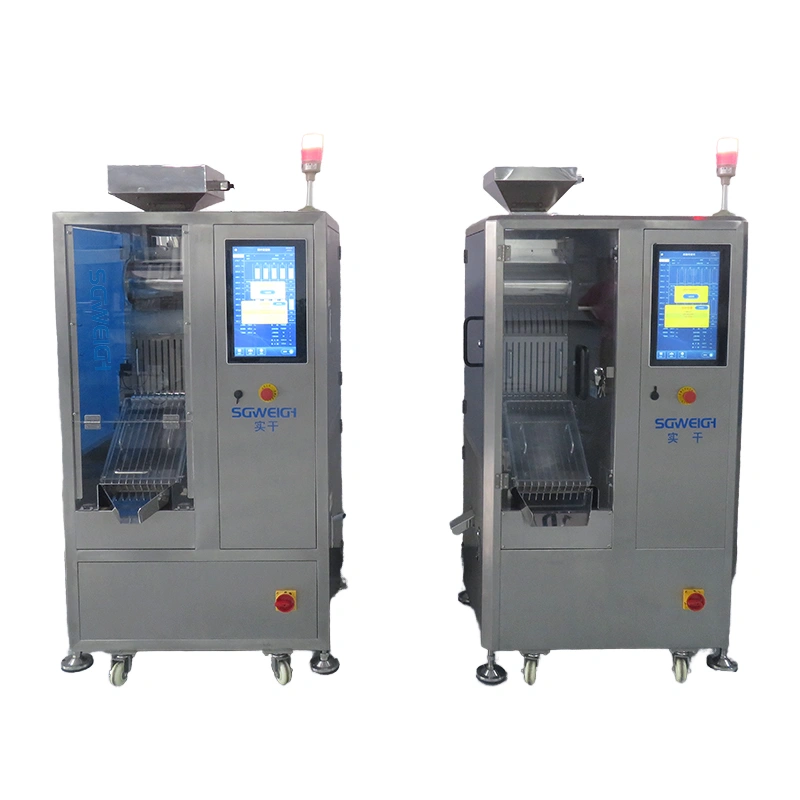

75000 Pcs/H Capsule Checkweighercan weigh and detect the capsules and tablets, accurate and quickly eliminate unqualified products by weight.Used for off-line weighing in the workshop, especially for capsule filling machine and tablet press machine in the boot debugging stage, final stage (the powder is less), and the grain weight deviation products produced by the instability of filling and tablet pressing equipment in the production process were weighed and detected, eliminate unqualified products, reduce scrape, improve product yield.
Type:SG-JN10
Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:75000 PCS/HR
Number of columns:10
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Weight of Machine :350kg
Shell material:SUS304
1.Ultra-High-Speed Inspection – Weighs up to 75,000 capsules per hour for high-volume production lines.
2.100% Capsule Weight Inspection – Automatically checks every capsule to ensure consistent weight and product quality.
3.High-Precision Weighing – High-resolution weighing sensor detects tiny weight deviations for accurate quality control.
4.Automatic Reject System – Instantly removes underweight, overweight, and defective capsules from the production line.
5.Supports Multiple Capsule Sizes – Compatible with various capsule sizes through quick changeover parts.
6.Real-Time Weight Monitoring – Displays live weighing data, statistics, and production status on the touchscreen.
7.Recipe Memory Function – Stores multiple product parameters for fast and easy product switching.
8.Automatic Calibration – Ensures long-term weighing accuracy and stable performance.
9.Data Recording & Traceability – Saves weighing records and production data for quality management and audit requirements.
10.User-Friendly Touchscreen Interface – Intuitive HMI with multilingual operation and simple parameter settings.
11.Stainless Steel Hygienic Design – SUS304/316 construction for easy cleaning and compliance with GMP manufacturing environments.
12.Low Noise & Stable Operation – Optimized mechanical design minimizes vibration for reliable high-speed performance.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
