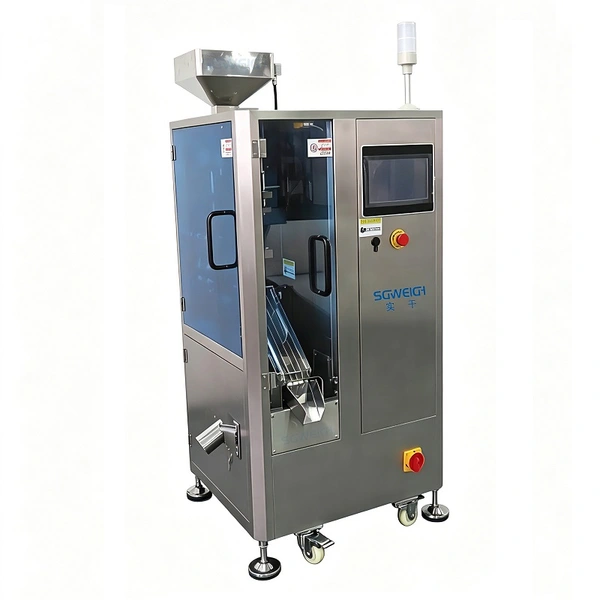

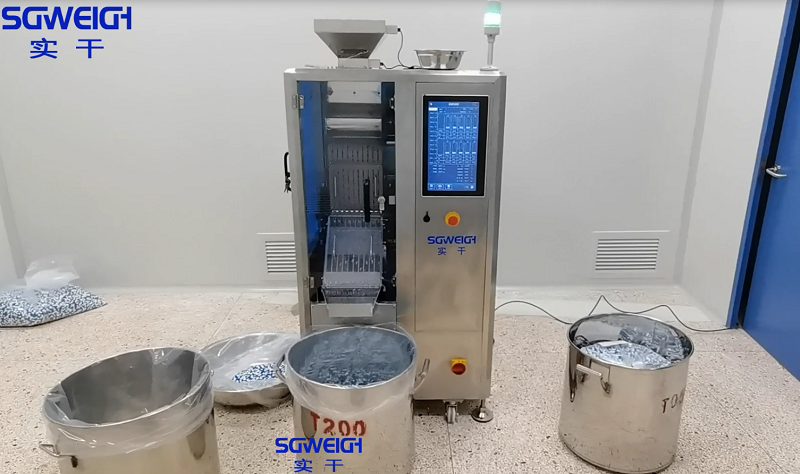

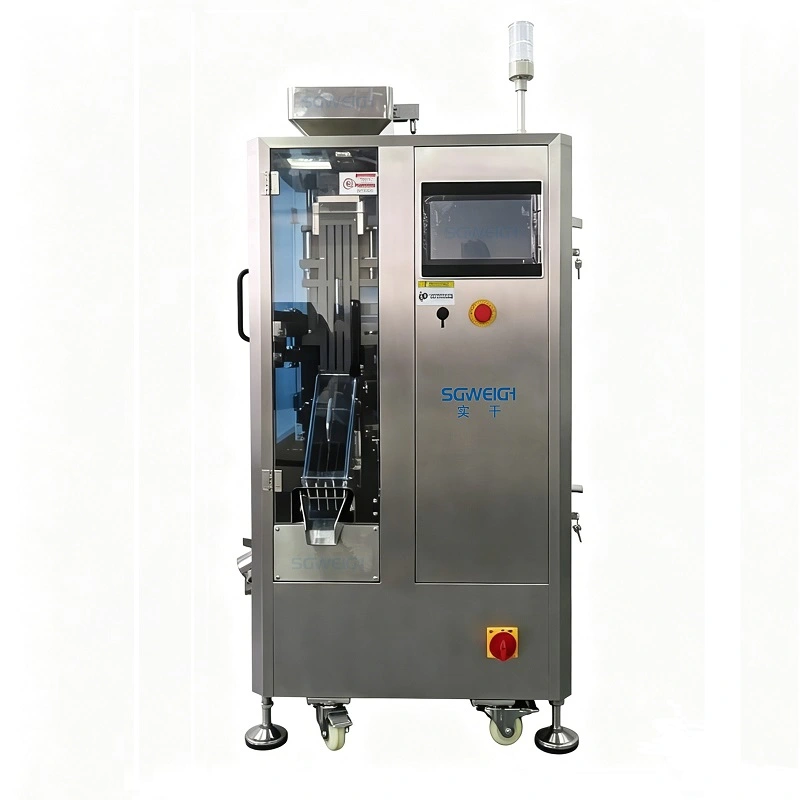

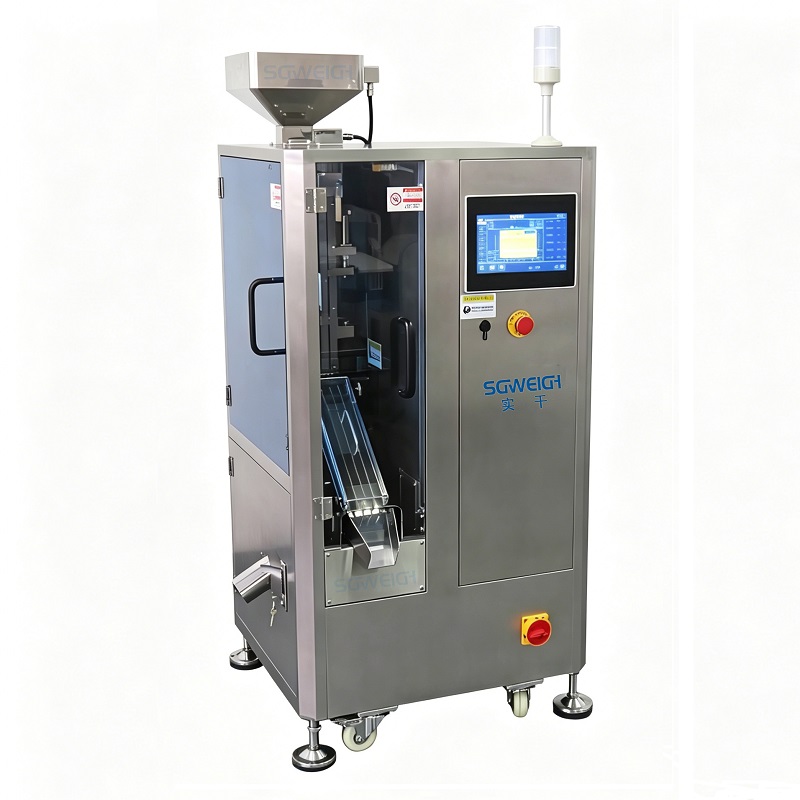

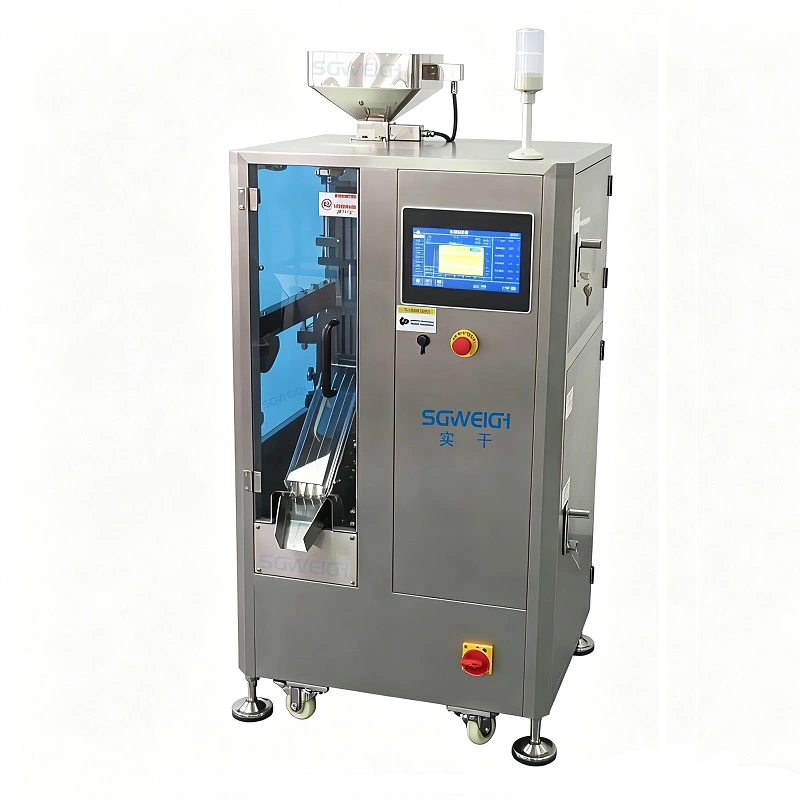

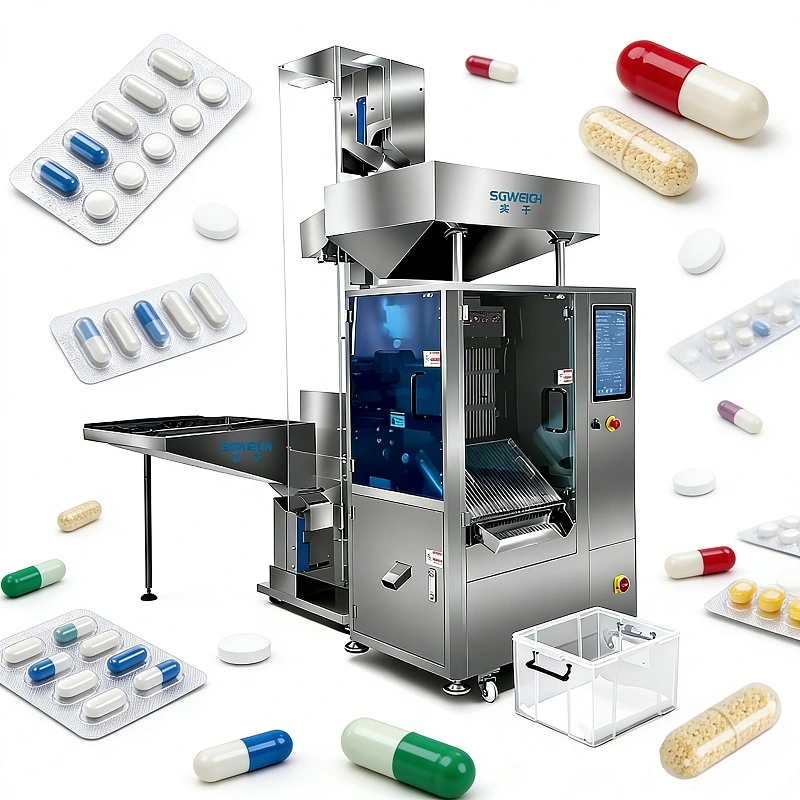

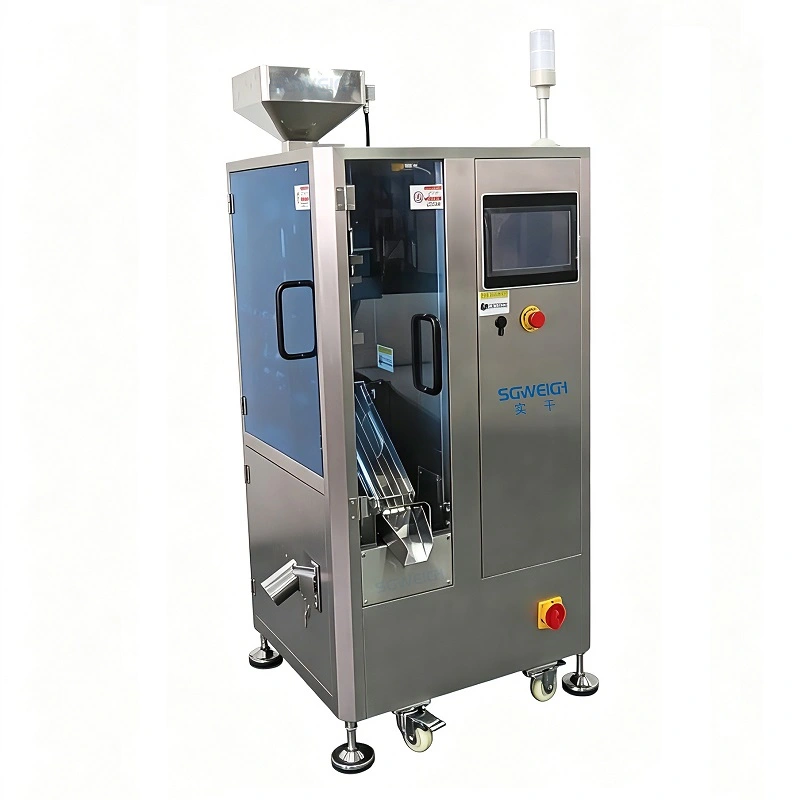

The 4-Lane Capsule Checkweigher is a multi-channel online weight detection device designed specifically for the pharmaceutical industry. It is primarily used for high-speed, high-precision weighing and automatic sorting of individual capsules during capsule production. The device employs a multi-channel parallel detection structure (4 lanes), significantly improving detection efficiency and making it particularly suitable for high-volume continuous production environments.
This 0.5mg High Accuracy Weighing Machine typically integrates high-precision weighing sensors and intelligent algorithms, achieving milligram (mg) level accuracy and automatically rejecting overweight or underweight capsules to ensure product compliance with GMP and international pharmacopoeia standards.

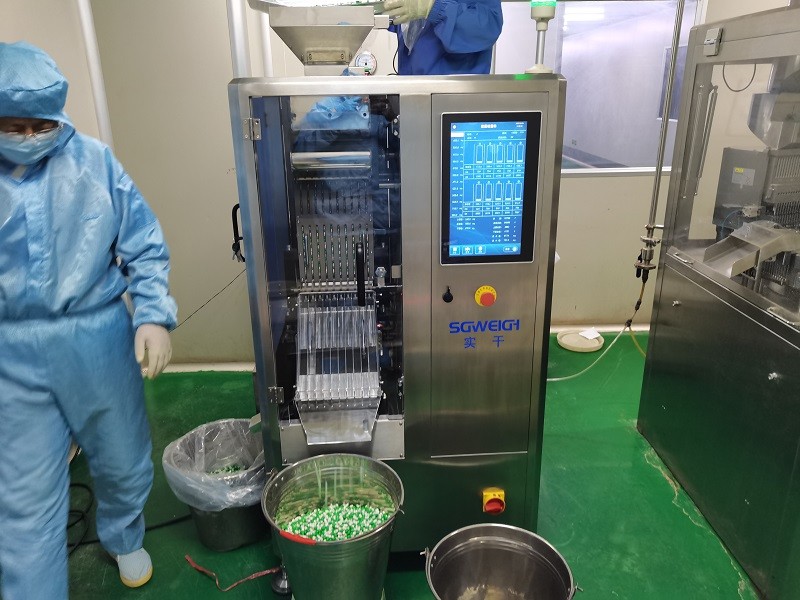

In practical applications, the 4-channel structure not only increases throughput but also reduces the load on individual channels, improving system stability and repeatability. Simultaneously, the device supports data logging and traceability functions and can interface with MES or SCADA systems to achieve digital management of production quality.
| Type | SG-JN4 |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| Product specification | Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing) |
| Highest sorting ability | 40,000 PCS/HR |
| Number of columns | 4 Columns |
| Power supply | AC-220V±10%, 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation) |
Shell material | SUS304 |

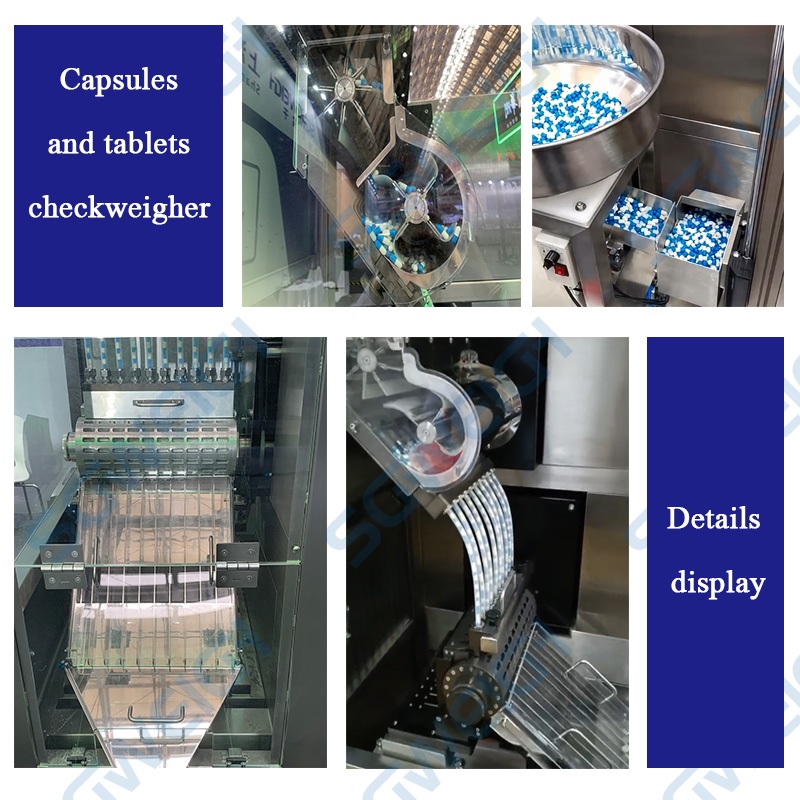

● 100% capsule weighing, achieving high levels of accuracy and reliability.
● Compact footprint, enabling a high throughput of 40,000 capsules (4 rows) per hour.
● Industry-leading weighing accuracy of +/-0.5mg, meeting the most stringent market requirements.
● All non-conforming capsules are rejected using a rejection confirmation sensor.
● Compliant with GMP standards and validation requirements, meets 21 CFR Part 11 compliance requirements, and features an audit trail.
● Intuitive 15-inch color touchscreen interface for easy operation.
● Ethernet connectivity for real-time remote data collection and user authentication.
● Tilted chassis with no blind spots helps prevent capsules from falling or mixing with other products.
● Simple machine design allows for tool-free component replacement and quick, easy cleaning.
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
